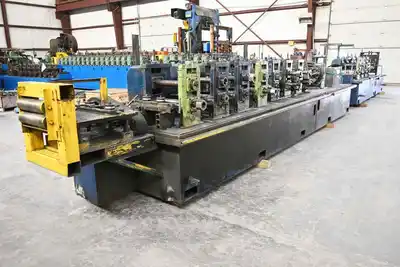

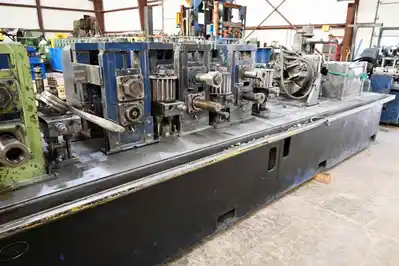

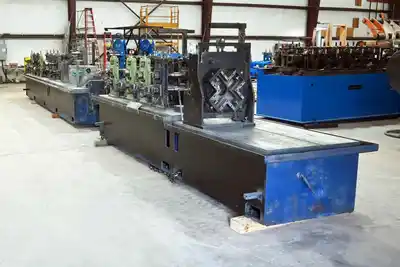

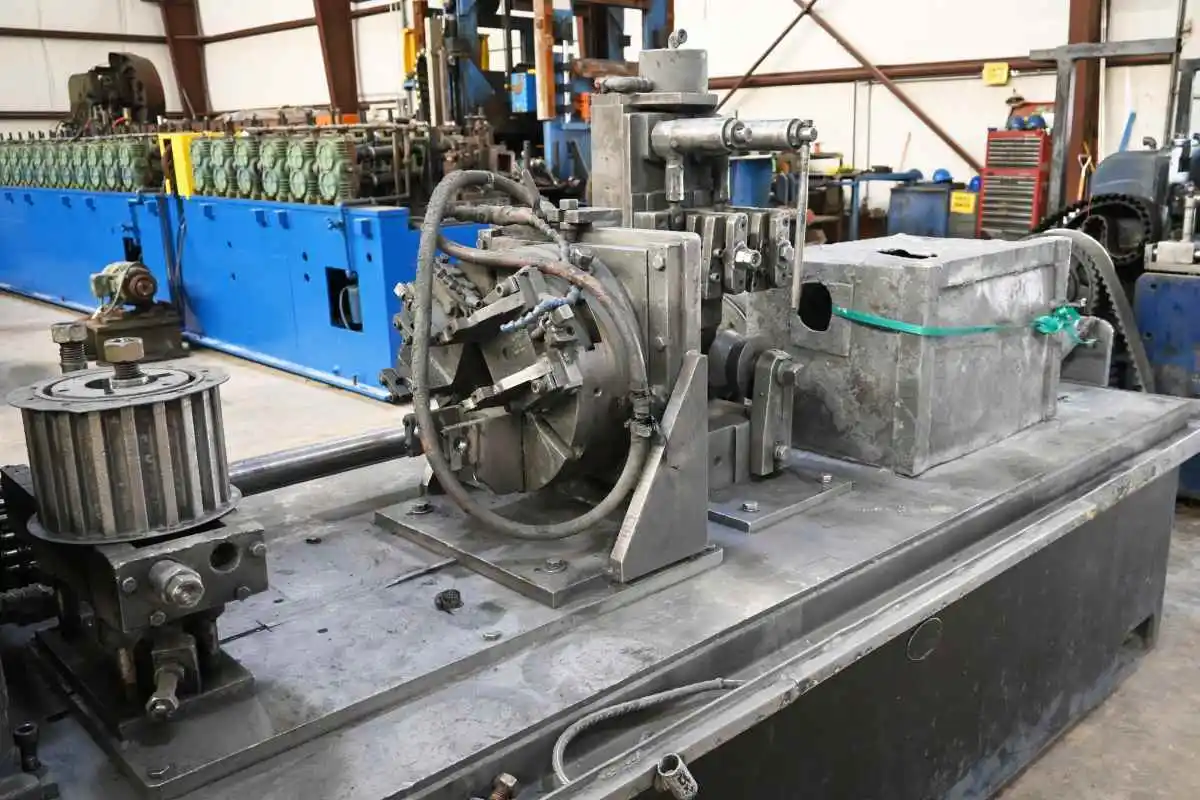

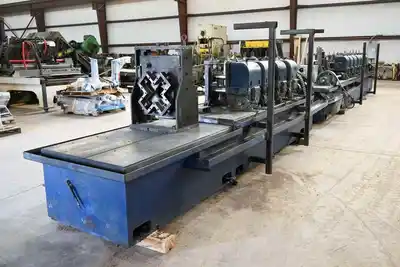

3" (76.2 mm) x .134" (3.4 mm) YODER #M2-1/2 High Frequency Tube Mill (14716)

(1) Used 3" (76.2 mm) x .134" (3.4 mm) YODER #M2-1/2 High Frequency Tube Mill
Stock # 14716

MANUFACTURER: YODER
MODEL NUMBER: M2-1/2

SPECIFICATIONS:
Maximum Tube Diameter: 3" (76.2 mm)
Minimum Tube Diameter: .500" (12.7 mm)
Maximum Wall Thickness: .134" (3.4 mm)
Minimum Wall Thickness: .028" (0.7 mm)
Maximum D/T Ratio: 60:1
Minimum D/T Ratio: 10:1
Maximum Material Yield: 50,000 PSI
Maximum Mill Speed: 300 FPM Max. Gear In Speed, No Load
Driven Spindle Diameter: 2.5" (63.5 mm)
Hand of Operation: Left to Right

FORMING MILL:
Entry Guide Unit
(4) Driven Breakdown Stands
(7) Idle Side Roll Units
(3) Driven Fin Stands

WELDING SECTION:
Guide Roll Unit
3-Roll Weld Pressure Unit
Rotary Scarfing Unit

SIZING MILL:
(4) Driven Sizing Stands
(4) Idle Side Roll Units
Double Sided 4-Roll Turkshead

SPARE PARTS:
Crate of new spindles, gearbox bearings, and more.

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
