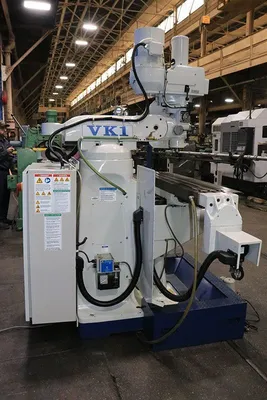

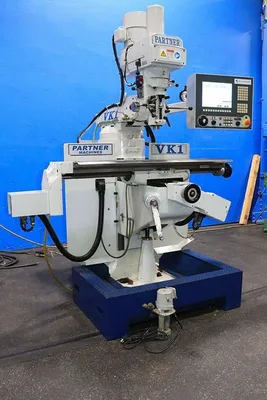

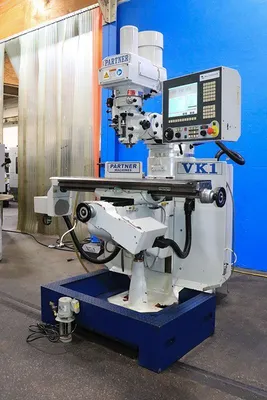

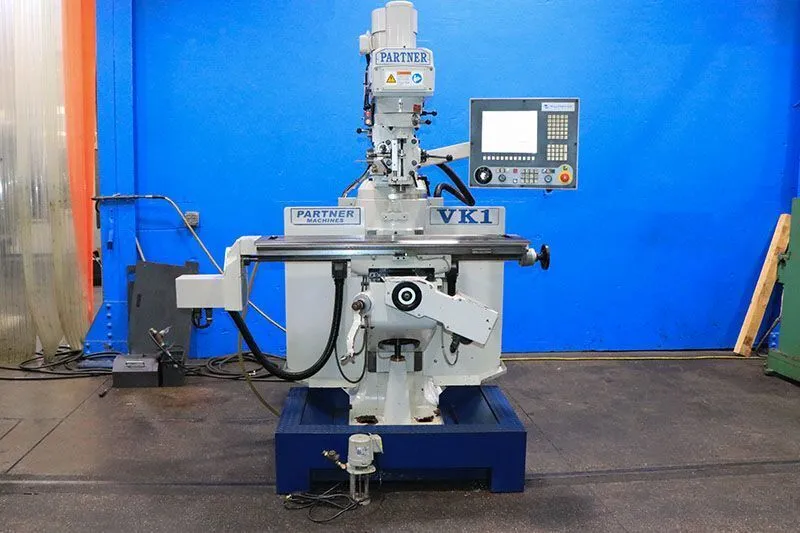

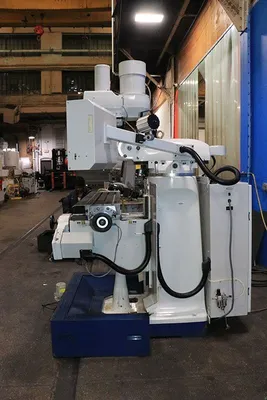

MILLTRONICS CNC VERTICAL MILL MODEL VK1 (14711)

MILLTRONICS CNC VERTICAL MILL

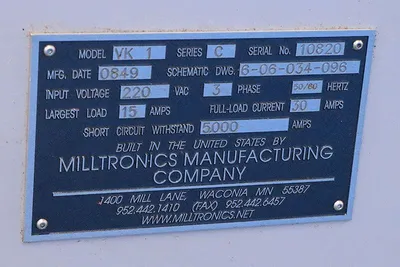

MODEL: VK1, S/N: 10820, NEW: 2008

SPECIFICATIONS:

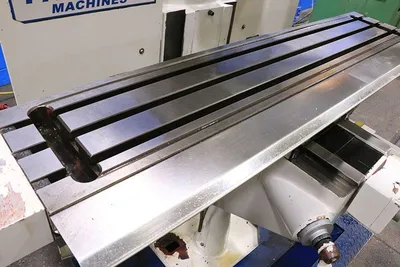

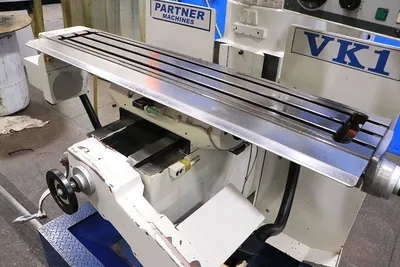

TABLE SIZE ......................... 9" x 49"
TABLE TRAVEL (X-AXIS) .............. 30"
SADDLE TRAVEL (Y-AXIS) ............. 11"
QUILL TRAVEL ....................... 5"
KNEE TRAVEL ........................ 16"
RAM TRAVEL ......................... 12"

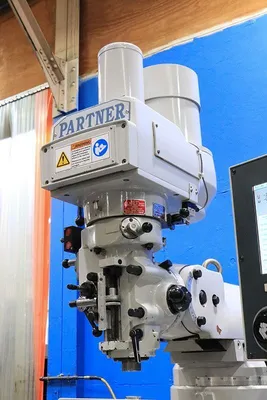

SPINDLE TAPER....................... R8
SPINDLE SPEEDS TWO RANGES:
LOW RANGE ....................... 60 - 500 RPM
HIGH RANGE ...................... 500 - 4000 RPM
SPINDLE DIAMETER ................... 3.375"
HEAD SWIVEL SIDE TO SIDE ........... 90 DEGREES +/-
HEAD TILT FRONT TO BACK ............ 45 DEGREES =/-
APPROXIMATE DIMENSIONS ............. 80"L x 70"W x 82"
APPROXIMATE WEIGHT ................. 3,000 LBS.

EQUIPPED WITH:

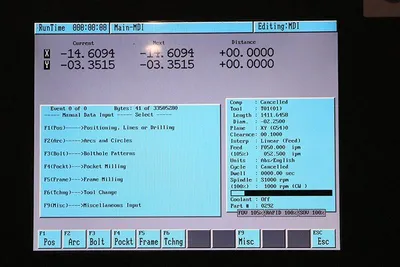

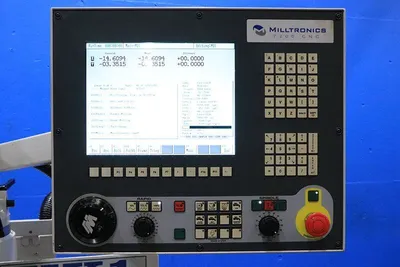

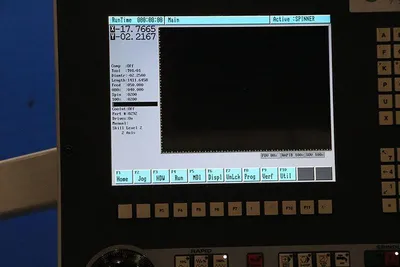

MILLTRONICS CENTURION 7200 SLS CONTROL (2-AXIS)
(SLS) SKILL LEVEL SELECT SOFTWARE ALLOWS THE OPERATOR TO
CHOOSE A SIMPLE OR FULL-FEATURED SYSTEM
CONVERSTIONAL & G/M CODE
10" LCD DISPLAY
BALLSCREWS & AC SERVO MOTORS FOR X & Y TRAVELS

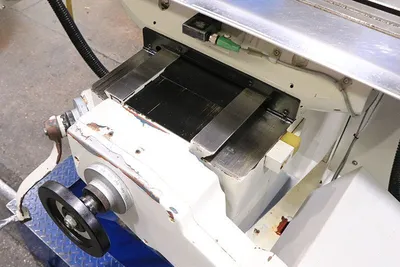

GROUND SOLID WAYS WITH TURCITE SURFACES

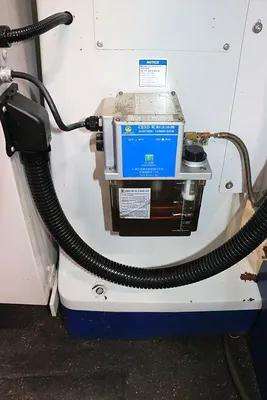

LUBRICATION SYSTEM

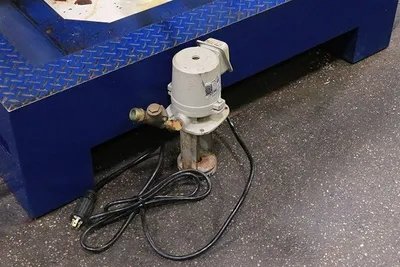

FLOOD COOLANT SYSTEM
5 HORSE POWER MOTOR & VECTOR SPINDLE DRIVE

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICAITONS ARE SUBJECT TO VERIFICATION**
