RUESCH 48" X 0.090" X 30,000# PRECISION SLITTING LINE (14706)

48" x .090" x 30,000# Precision Ruesch Slitting Line

Type: Slitters & Slitting Lines

Stock Number: 14706

Thickness Range: .005” Min. to .090” Max.
Slit widths: .342” on 48” setup
Max Speed: 1200 fpm

Complete Line with the Following Components:

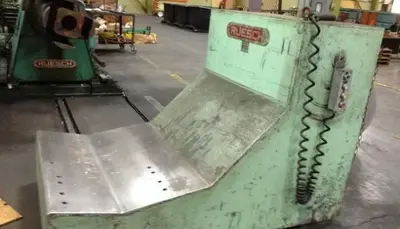

L-Type Entry Coil Car
Coil Weight: 30,000lbs Max
Self Contained Hydraulic

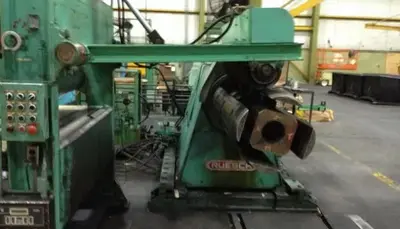

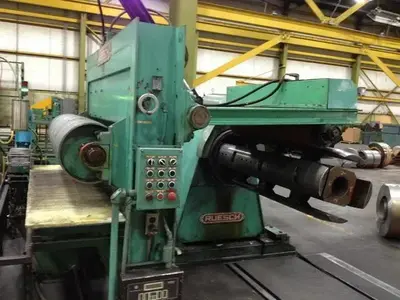

Mandrel Uncoiler

Coil Weight: 30,000lbs
Powered Hold Down Roll
4 Leaf Wedge Design
Sliding Base
Hydraulic Expansion

North American Edge Control System
Entry Bridal Roll
Entry Pinch Rolls
Swings Away from Head for Easy Setup
Entry Edge Guide Rolls

X-Ray Thickness Gauge

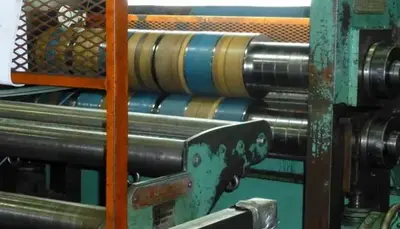

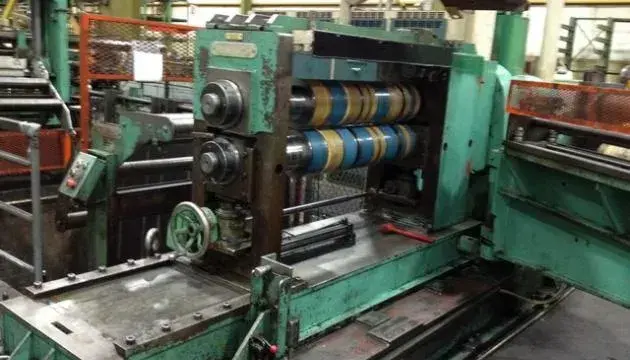

Slitter Head

5.5” Arbors
Max Knife OD 10”
Min Knife OD 8”
Shimless Tooling
10 HP AC Drive for Feed Up
20HP DC Drive for Variable Speed into the Pit
5 Sets of Knives (Shimless)
*Spare Set of Top and Bottom 5.5" Diameter Slitting Arbors
Pit Cross Over Table
Entry and Exit Cascade Rolls

Drag Board Tension Stand
Hydraulic Actuation

Recoiler

Coil Weight: 30,000lbs
20" ID "
Hydraulic Push-Off
Overarm Separator
Reliance Drive 75 Hp, Rpm 650/1950
2 Speeed Gearbox
Gearbox Ratio: 6.38/12.75

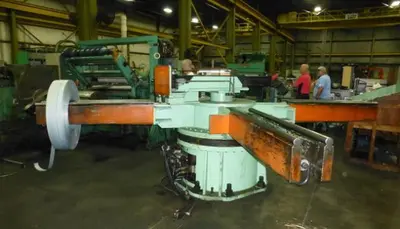

4 Arm Exit Turnstile

Complete with: Spare Parts, Manuals, Drawings, Hydraulics, electrics and Controls
Upgrades and Spares: Original Arbors Replaced for Shimless Tooling.
Installed and Running
