EUROSIDER 480mm X 1200mm 3 HI ROUGHING ROLLING MILL (14705)

3-HIGH ROUGHING ROLLING MILL
Stock # 14705

MANUFACTURER: “EUROSIDER” (SPAIN)
MANUFACTURED IN 2013, INSTALLED IN 2014

THE MAXIMUM BILLET SIZE PROCESSED TO DATE HAS BEEN 140 × 140 MM,
HOWEVER, THE MILL HAS THE CAPACITY TO HANDLE LARGER REDUCTIONS

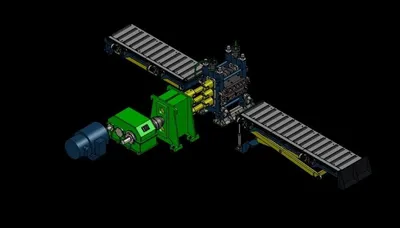

THE INSTALLATION CONSIST OF:

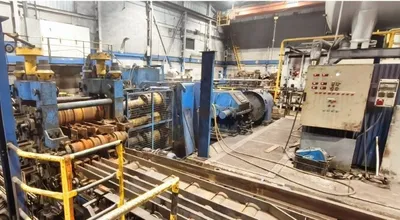

3-HI ROLLING STAND
- 3 SUPERIMPOSED ROLLS
- ROLLS DIAMETER: 480 MM AND 1200 MM WIDE
- MACHINED WITH 5 PASSES TO ROLL FROM 140 X 140 MM TO 80 X 80 MM
- INDUSTRIAL WATER COOLING

DRIVE:

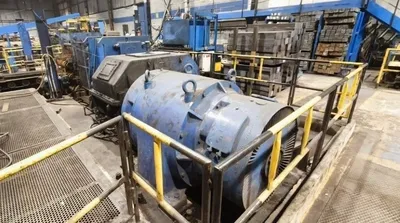

ELECTRIC MOTOR: 750 KW AC SLIP-RING
GEARBOX: 1000 HP “OLALDE” TANDEM-ON-7. EFFICIENCY 0.90. INPUT 950 RPM, OUTPUT 130 RPM
OIL LUBRICATION WITH “AZCUE” PUMP AND CARTRIDGE FILTER
PINION STAND: 1500 HP,3 SHAFTS WITH 500 MM CENTER-TO-CENTER DISTANCE. OUTPUT 130 RPM
OIL LUBRICATION WITH “AZCUE” PUMP AND CARTRIDGE FILTER

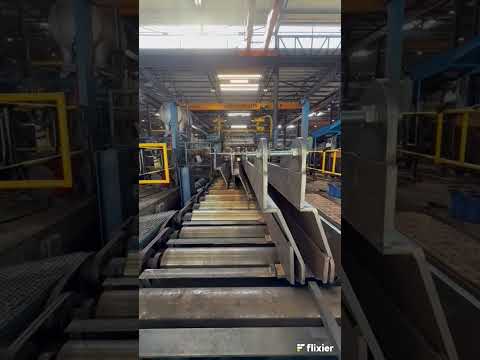

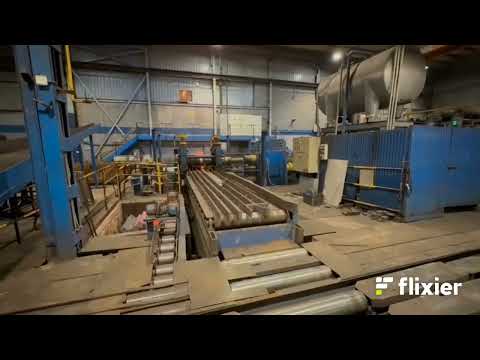

LIFTING TABLE NO. 1
DIMENSIONS, LENGTH X WIDTH: 5,900 X 1,700 MM
13 ROLLS DRIVEN BY TWO 5.5 KW GEARED MOTORS EACH
ROLLERS 215 MM IN DIAMETER AND 1,200 MM IN WIDTH
LIFTING BY TWO HYDRAULIC CYLINDERS, 80 MM IN DIAMETER AND WITH A 560 MM STROKE

LIFTING TABLE NO. 2
DIMENSIONS, LENGTH X WIDTH: 6.300 X 1,700 MM
16 ROLLS DRIVEN BY TWO 5.5 KW GEARED MOTORS EACH
ROLLERS 215 MM IN DIAMETER AND 1,200 MM IN WIDTH
LIFTING BY TWO HYDRAULIC CYLINDERS, 80 MM IN DIAMETER AND WITH A 560 MM STROKE

ELECTRIC SYSTEMS

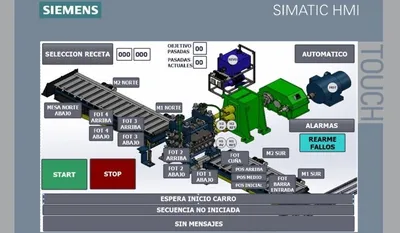

PLC SIEMENS 1200. SCREEN SIEMENS SIMATIC HMI
THE MAIN COMPONENTS “TELEMECANIQUE” Y “SCHNEIDER EECTRIC”

SPARE PARTS INVENTORY
1 UNIT – 750 KW MOTOR
1 SET – GEARBOXES FOR THE THREE SHAFTS
2 UNITS – BEARINGS FOR SHAFT HOUSING (2 UNITS PER STAND)

CONDITION: GOOD. WELL MAINTAINED AND UPDATED. RECENTLY
DISMANTLED AND STORED FOR IMMEDIATE DELIVERY

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
