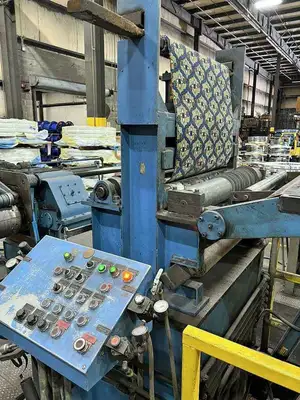

24" x 5.00" x 12,000# Stamco Slitting Line (14700)

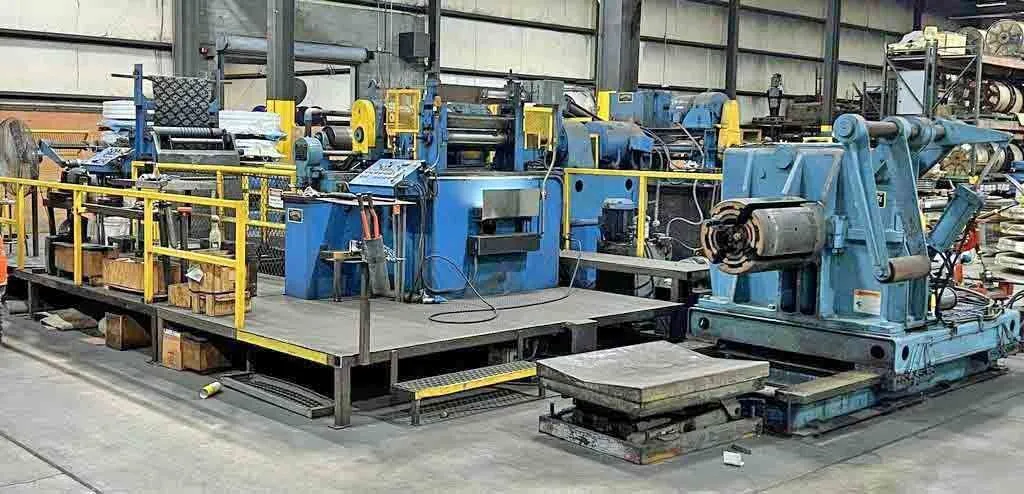

24" X 5" STAMCO SLITTING LINE
Stock # 14700

Width: 24"
Weight Capacity: 12,000 lbs.
Coil I.D.: 10" - 20" Entry
16" Exit
Coil O.D.: 72" In
60" Out
Line Speed: 700 FPM
Line Direction: Right to Left

Consisting of the following:

-Entry Coil Lift: American Lift
Stationary Lift
48" Bed Width
12.5" from Floor to bottom of "V" Cradle
Hydraulic Scissor Lift
Overall Size: 48" L x 35" W x 14" High

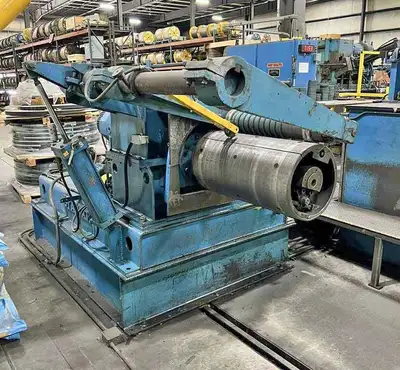

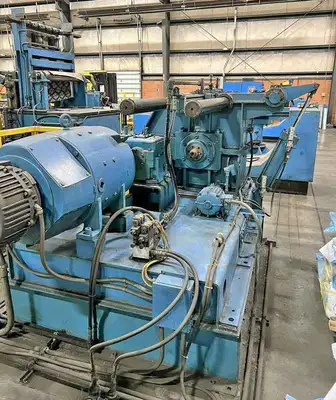

-Mandrel Uncoiler: Stamco
28.5" Face Mandrel
Hydraulic Expansion, 10" - 20" I.D. range w/Pads
Hydraulic Feedup Motor
Wichita Water Cooled Brake
Hydraulic Slide Base
Overarm Holddown Roll
72" Coil O.D. Capacity
Overall Size: 180" L x 87" W x 83" High

-Water Cooler:

-Hydraulic Power Unit:

-North America Edge Control:
Photo Electric

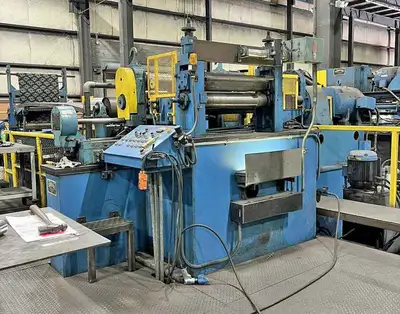

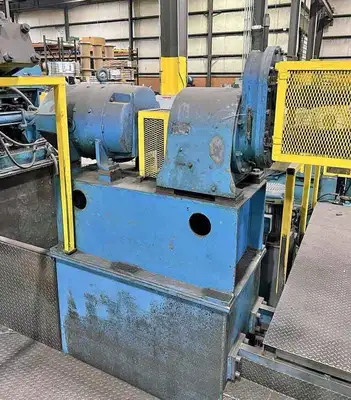

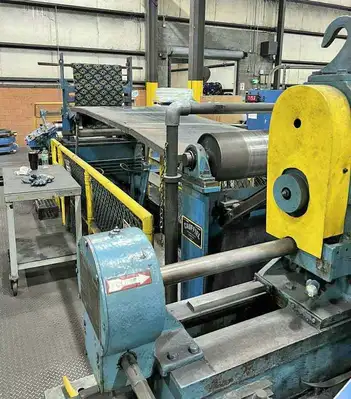

-Slitter Head: Stamco
Removable Head (1 Head)
5.00" Dia. Arbors
Eccentric Arbor Adjustment
Entry Driven Pinch Rolls
Entry Side Guides with Center Holddown
25 HP DC Motor Drive
Integrated Pinion Stand Reducer
Overall Size: 184" L x 58" W x 100" High

-Exit Passline Roll:
11" Dia. x 36" Face Roll
Overall Size: 46" L x 38" W x 80" High

-Pit Cross Over Table:
Attached to Tension Stand

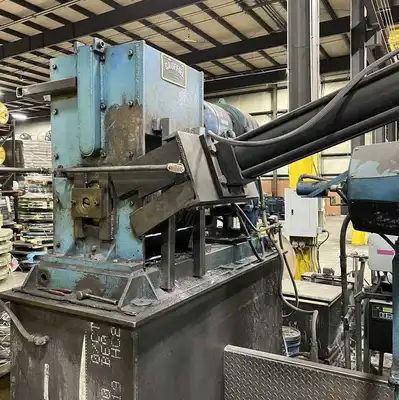

-Scrap Winder Baller:
AC Motor Driven
Hydraulic Cylinder Ball Dump
Overall Size: 88" L x 76" W x 99" High

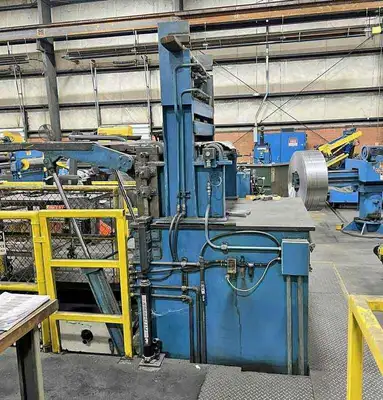

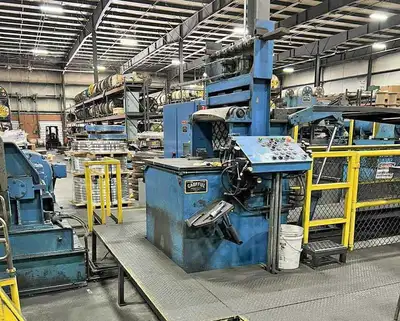

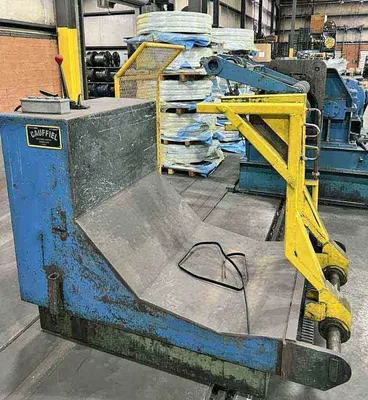

-Tension Stand: Cauffiel
Air Cylinder Pad Tension Operation
Entry and Exit Separator Bars
Overall Size: 72" L x 58" W x 108" High

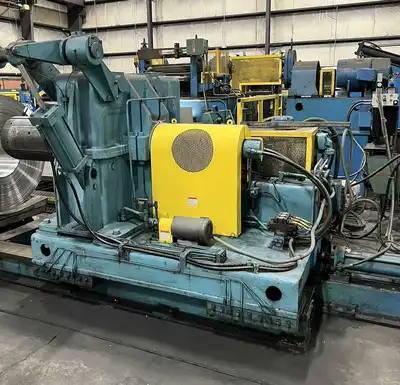

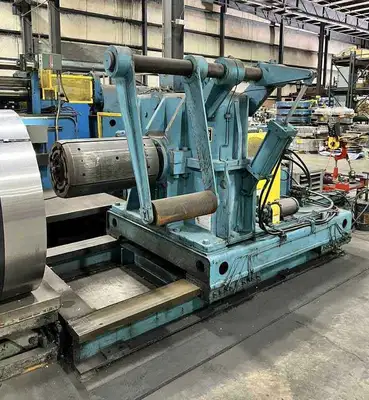

-Recoiler: Stamco
16" Diameter x 31" Face Drum
Manual Grip and Expand
Overarm Separator
25 HP GE DC Motor, 400/2400 RPM, 240 V
2 Speed Reducer
60" O.D. Capacity
Overall Size: 152" L x 81" W x 68" High

-Exit Coil Car:
Hydraulic Lift and Travel
40" Wide Bed
9" from Floor to bottom of "V" Cradle
Self-Contained Hydraulic Unit
Coil Keeper Bars
Overall Size: 76" L x 46" W x 52" High

-Slitter Tooling:

-Removed and in storage
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
