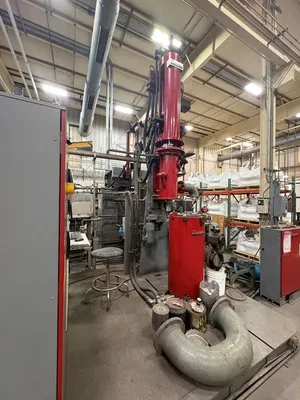

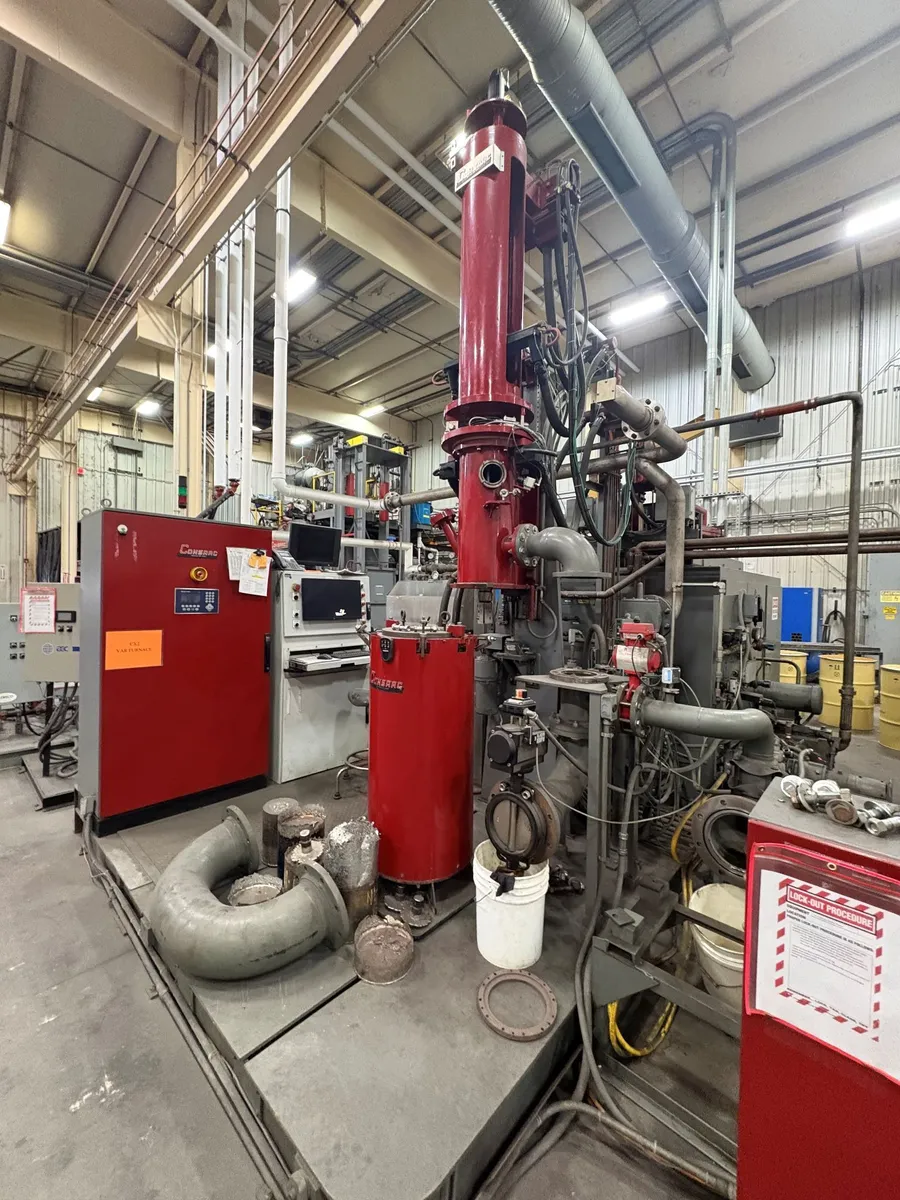

CONSARC VACUUM REMELT INGOT FURNACE (14695)

MANUFACTURER: CONSARC - DIV. OF INDUCTOTHERM
STOCK: 14695

TYPE: VACUUM ARC REMELT FURNACE (VAR)
-MAY ALSO BE USED AS AN ELECTRO SLAG REMELT FURNACE (ESR)
YEAR OF MANUFACTURE: 2010
PURPOSE: PRODUCE SPECIAL ALLOY INGOT/BILLET
MINIMUM INGOT DIAMETER: 2.75" (70MM)
MAXIMUM INGOT DIAMETER: 8" (203MM)
MAXIMUM INGOT LENGTH: 29" (736MM)
MAXIMUM INGOT WEIGHT: 450 LBS (204 KG)
INGOT DENSITY: 0.22 LBS/INCC
MAXIMUM CRUCIBLE DEPTH: 29.5" (750MM)
MINIMUM STUB LENGTH: 3" (76MM)
MAXIMUM ELECTRODE LENGTH: 50" (1270MM)
MAXIMUM ELECTRODE DIAMETER: 6" (152MM)
MAXIMUM ELECTRODE PLUS STUB LENGTH: 52" (1320MM)
MAXIMUM RAM TRAVEL: 34.75" (882MM)
RAM/ELECTRODE LOWERING SPEED DURING MELT:
-LOW SPEED: 4 INCHES/MIN (101 MM/MIN)
-HIGH SPEED: 20 INCHES/MIN (508 MM/MIN)

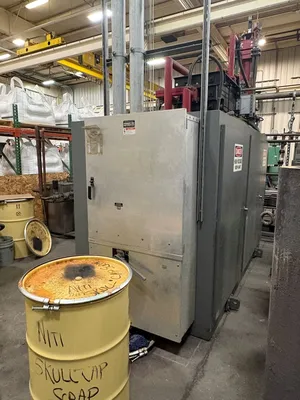

POWER SUPPLY
-INCOMING 480 VOLTS
-OUTGOING FOR VAR 70 VDC, 6000 AMPS
-OUTGOING FOR ESR 51 VOC, 5000 AMPS

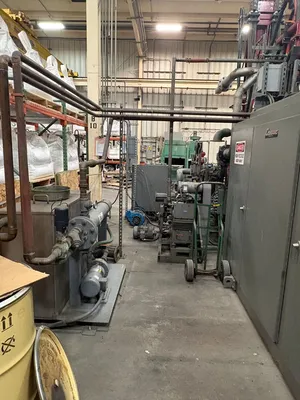

COMPLETE CLOSED LOOP COOLING SYSTEM
LINE IS INSTALLED IN THE USA

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
