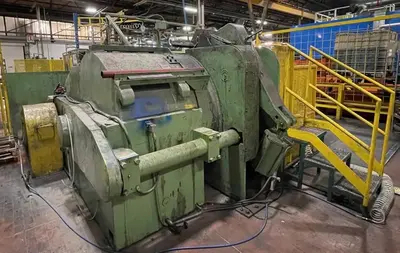

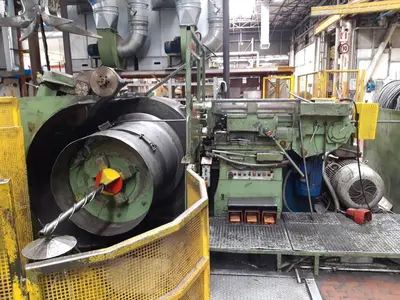

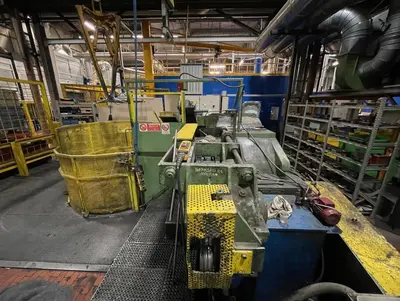

MALMEDIE 900mm HORIZONTIAL WIRE DRAWING BULL BLOCK (14694)

BULL-BLOCK MALMEDIE 800/900
Manufacturer MALMEDIE – GERMANY
Drum diameter Ø 900 mm.
Coil diameter Øi 800/900 mm. Øe 1’250/1300 mm.
Weight of the coil 1500 Kg.

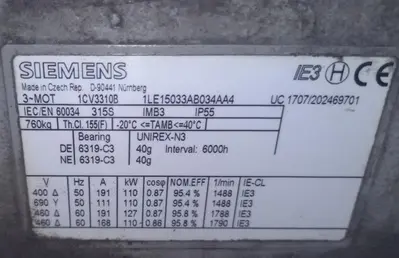

Capstan motor 110 kW a.c. – 1488 rpm -
Under Inverter Recoiler motor 2,2 kW a.c. –
Under Inverter Tension 400 V. - 50 Hz
COMPOSITION OF THE LINE
Decoiler Push pointer with die holder

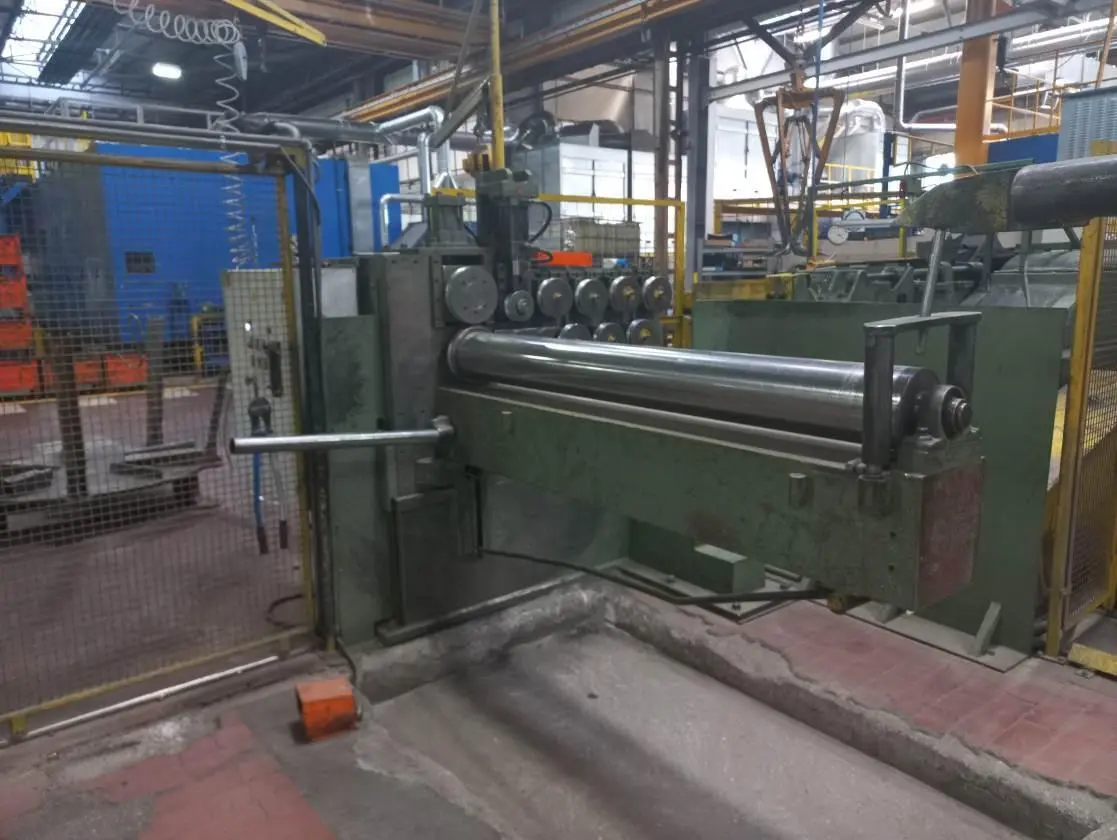

Capstan Pit re-coiler

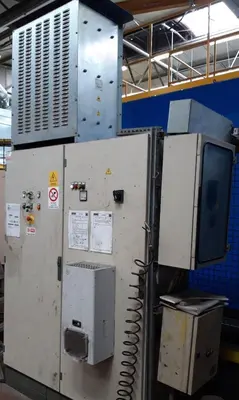

Electric equipment – updated on 2018
Hydraulic equipment
Spares and documentation available

**TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
