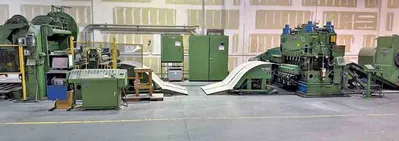

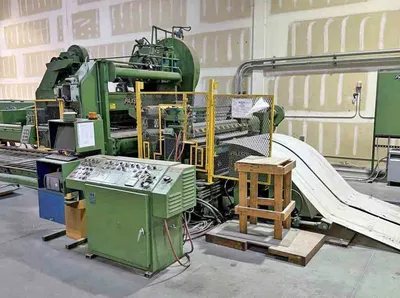

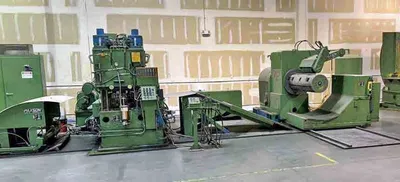

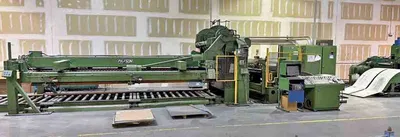

60" x 0.125" x 40,000# Paxson CTL Line w/6 HI Leveler Stock # 14691

Paxson Cut to Length Line w/6 HI Leveler
Stock # 14691

-Width: 60"
-Thickness: 0.020" - 0.125" @ 50,000 PSI Shear Strength
-Coil I.D.: 20" - 24"
-Coil Weight: 40,000 lbs.
-Line Speed: 30 - 300 FPM
-Line Direction: Right to Left

Consisting of the following:

-Entry Coil Car:
Above Floor Type
48" Wide Bed
Distance from Floor to bottom of "V" Cradle: 10" approx.
Hand Pendant Control
Self-Contained Hydraulic Power Unit
Overall Size: 94" L x 52" W x 56" High

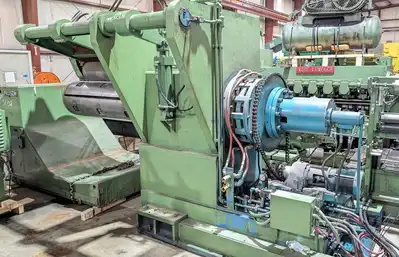

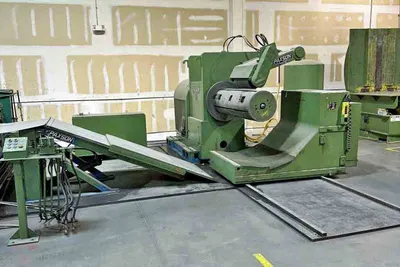

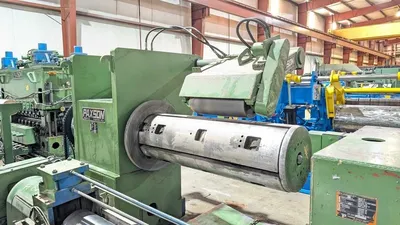

-Uncoiler:
Mandrel Type
60" Face Mandrel
Hydraulic Expansion
Powered Overarm Holddown
Slide Base
Water Cooled Brake
Hydraulic Motor Feedup
Distance from Floor to center of Mandrel: 48"
Overall Size: 166" L x 95" W x 65" High

-Peeler Table:
Hydraulic Lift & Extend

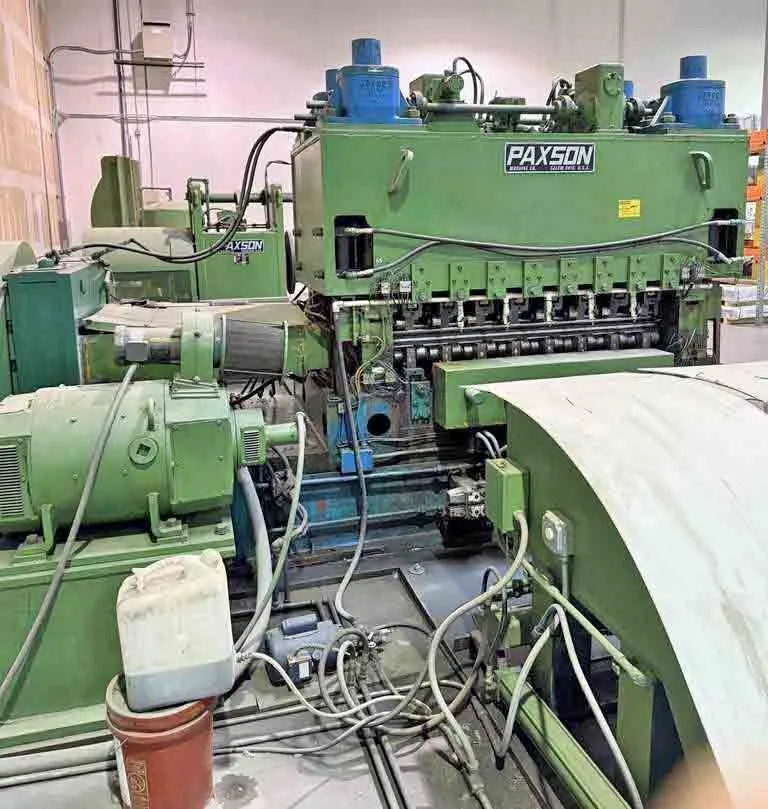

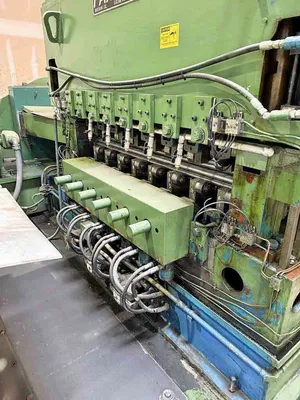

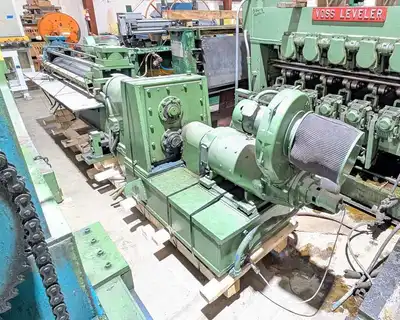

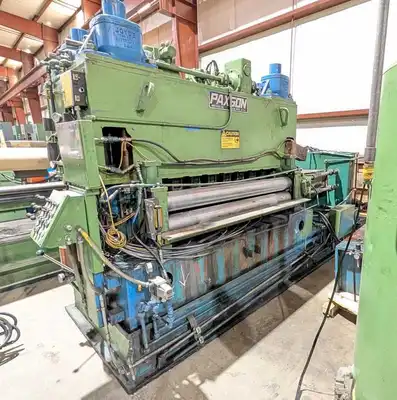

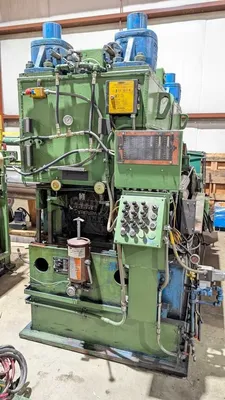

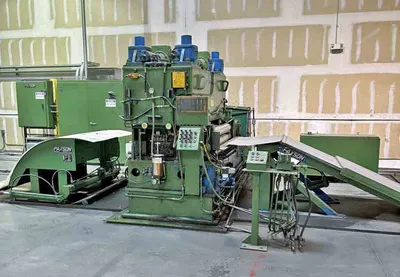

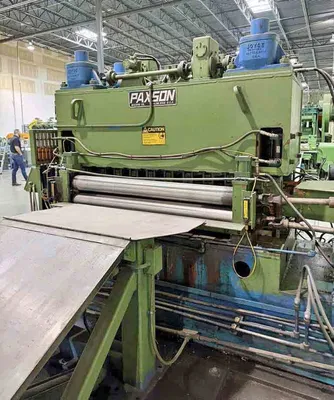

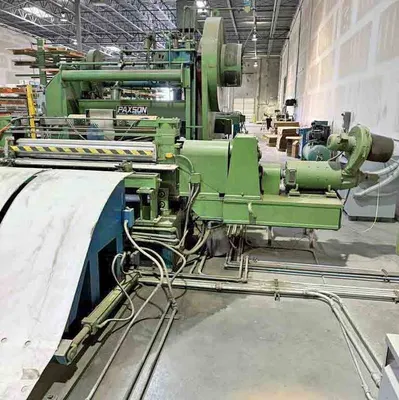

-Paxson Precision Leveler: 6 HI
S/N: 11558-36-8-76

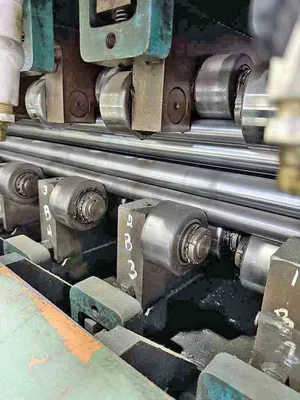

1.750" Diameter x 74" Face Rolls
Entry Pinch Rolls, Powered
8 Flights of Backups, (6 Flights Motorized)
125 HP WER DC Motor, 1750/2000 RPM, 500 V
Overall Size: 181" L x 75" W x 100" High

-Cascade - Loop Table:

-Roll Feed:
Entry Side Guides
Full Width Rolls
Paper/Vinyl Applicator
30 HP Emerson DC Motor

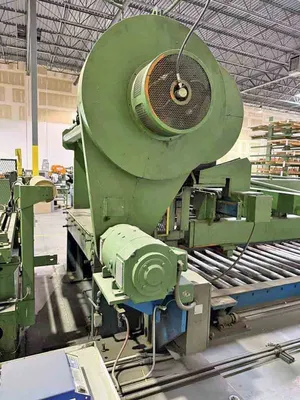

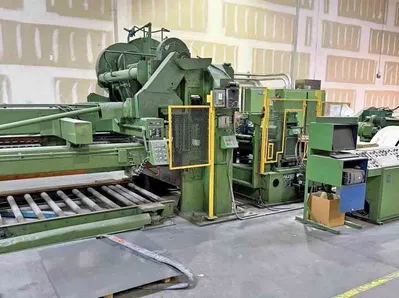

-High Speed Shear:
Over Driven, Mechanical
Manual Blade Gap Adjust
30 HP WER DC Drive Motor, 1750 RPM, 500 V

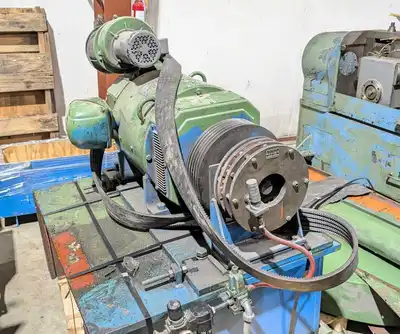

Air Clutch/Brake

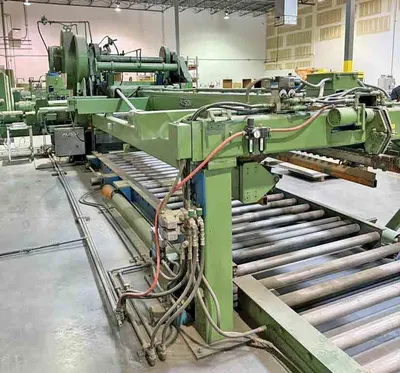

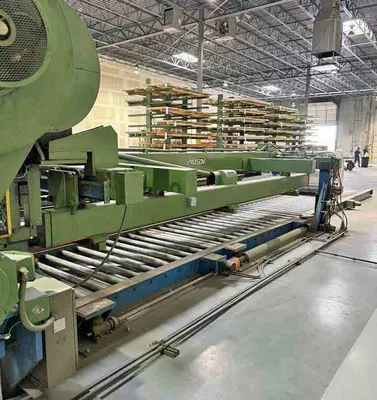

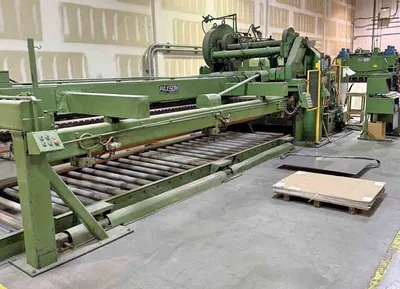

-Automatic Stacker:
Flipper Arm Type
Powered Width Adjustment
Powered Length Adjustment
Non Scratching Roller Supports
20' Maximum Length
Mechanical Screw Jack Lift Table
Powered In-Line Eject Conveyor

-Exit Runout Conveyor:
Powered Rolls

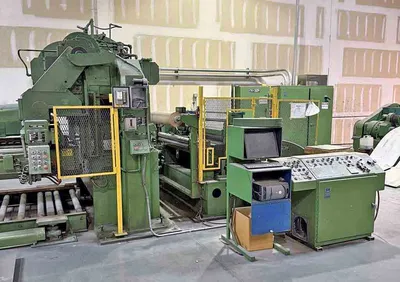

-Main Operators Control Panel:
-Water Cooler:

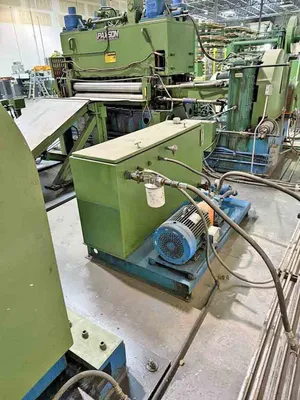

-Main Hydraulic Power Unit:

-Electrical Controls and Drives:
-Line is in Storage

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJEC TO VERIFICATION**
