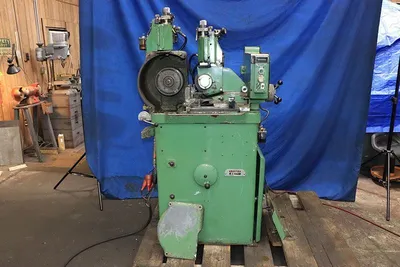

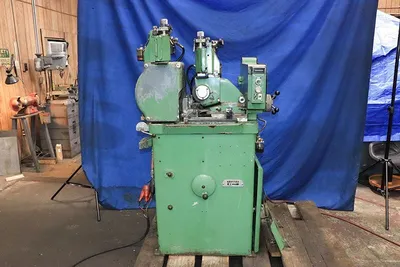

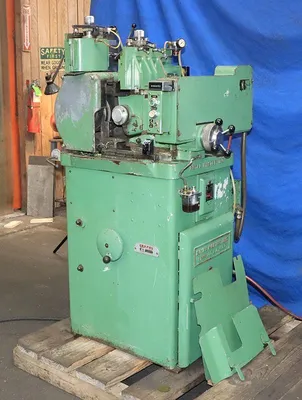

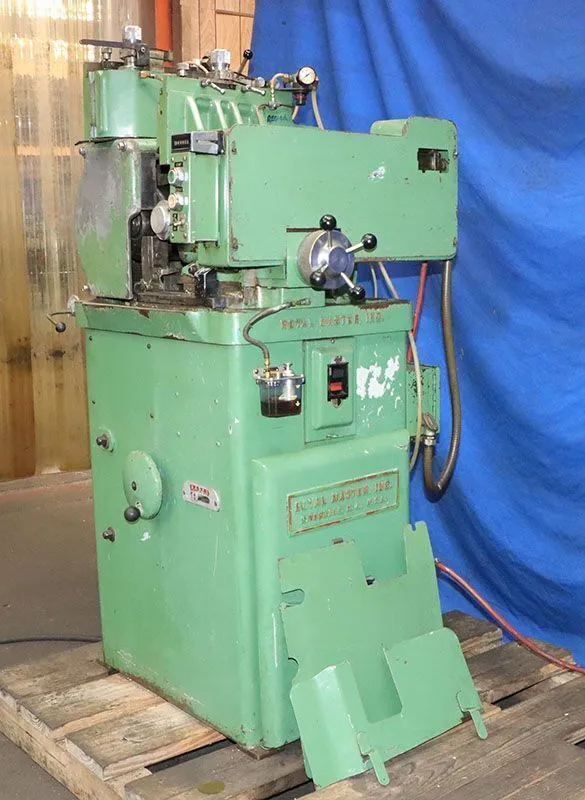

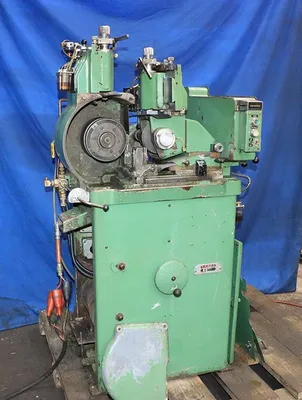

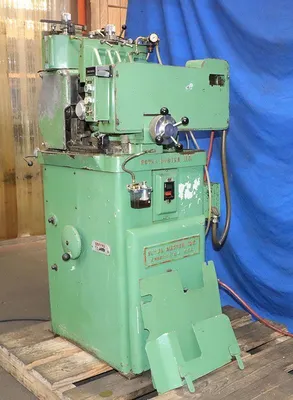

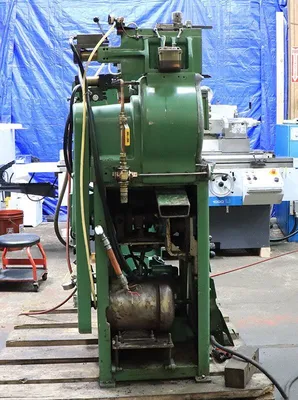

ROYAL MASTER TG 12 X 3 CENTERLESS GRINDER (14677)

ROYAL MASTER TG12X3 CENTERLESS GRINDER
WITH AUTO CYCLE OPTION, REBUILT BY
ROYAL MASTER IN 1998

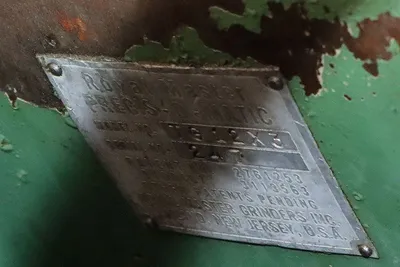

S/N: 247

CAPACITY:
INFEED AND THRUFEED ........ 0.004" TO 1.5" DIA.
LENGTH ..................... 12' ON 0.5" DIA.

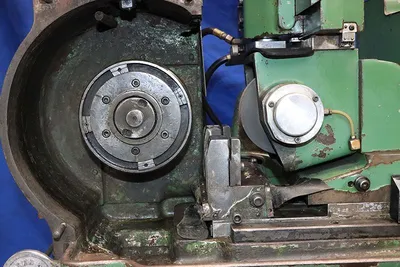

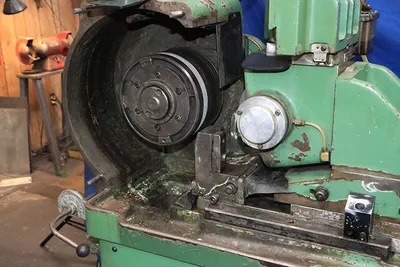

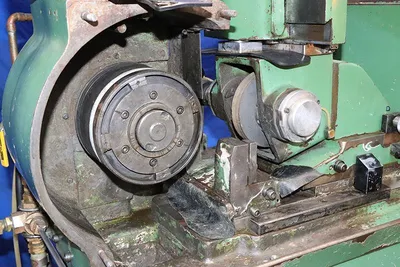

MAXIMUM GRINDING WHEEL ..... 12" DIA. x 3.5" WIDE
MINIMUM GRINDING WHEEL ..... 10" DIA. x 1/4" WIDE
MAXIMUM REGULATING WHEEL ... 6" DIA. x 3.5" WIDE
MINIMUM REGULATING WHEEL ... 1/4" WIDE W/SPOOL

SPINDLE SPEEDS:
GRINDING WHEEL ............. CONSTANT SPEED 2,040 RPM
REGULATING WHEEL ........... INF. VARIABLE 25 TO 480 RPM

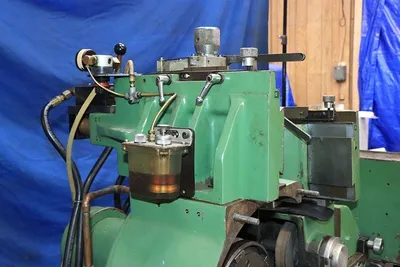

REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR THRUFEED
GRINDING ......................... 6 DEGREES
MAX. SWIVEL FOR TAPER GRINDING ... 5 DEGREES

APPROXIMATE FLOOR SPACE ........ 24" X 48"
APPROXIMATE WEIGHT ............... 2,800 LBS

EQUIPPED WITH:

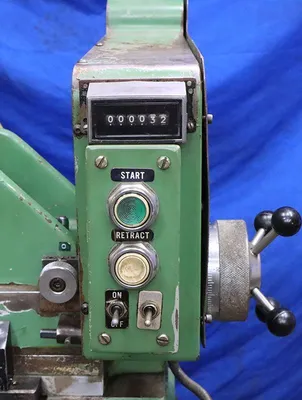

AUTOMATIC CYCLE OPTION .... PROVIDES AUTOMATIC INFEED
OF THE REGULATING WHEEL
INFINITELY VARIABLE REGULATING WHEEL SPEEDS

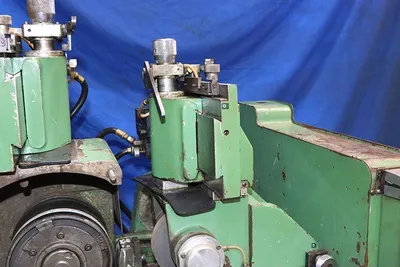

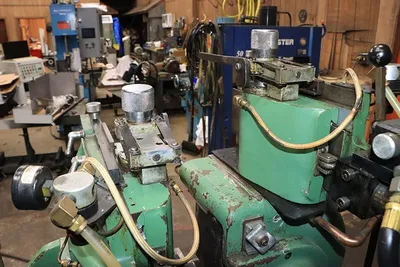

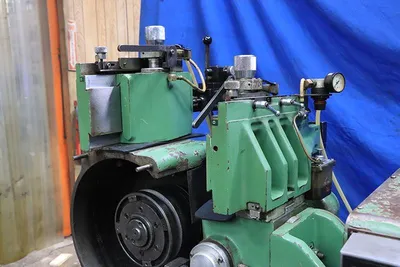

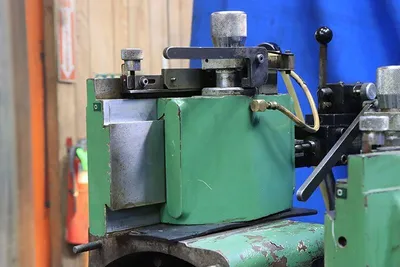

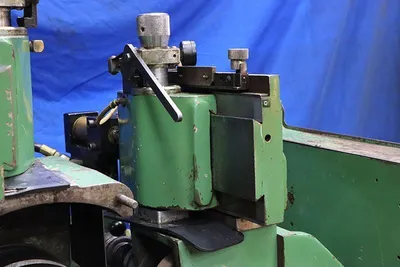

AIR-SENSING HYDRAULIC DRESSER FOR THE GRINDING WHEEL
AIR-SENSING HYDRAULIC DRESSER FOR THE REGULATING WHEEL

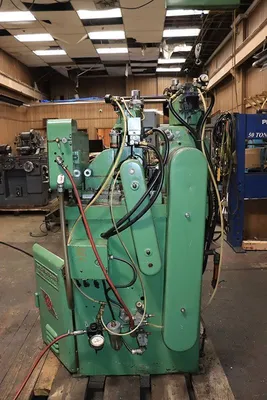

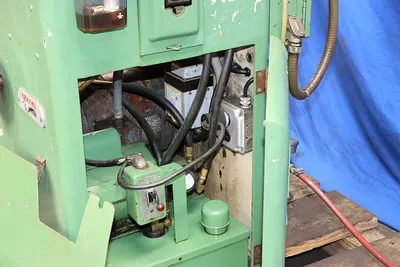

SELF CONTAINED HYDRAULIC SYSTEM
COOLANT SYSTEM

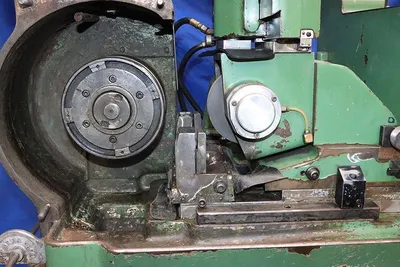

WORK REST
DIAL INDICATOR FOR REG HOUSING
7.5 H.P. MAIN DRIVE MOTOR

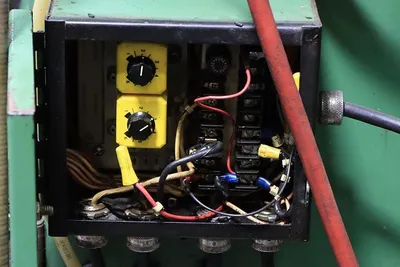

3/60/208-230-460 VOLT ELECTRICS
MACHINE IS WIRED FOR 440 VOLTS
**TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
