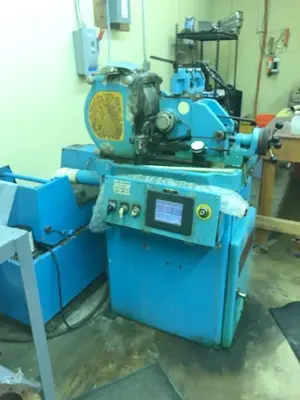

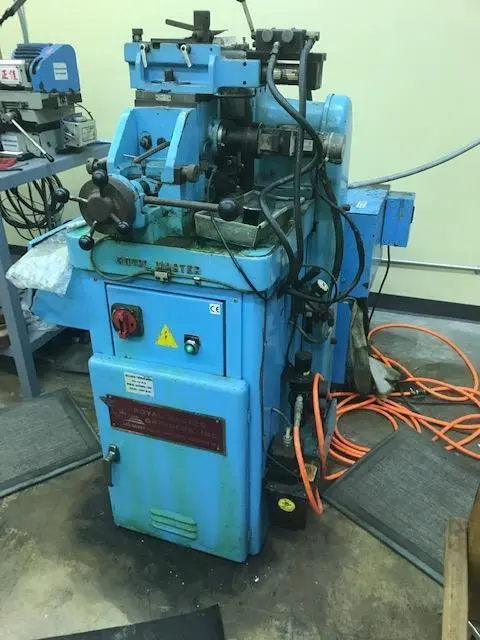

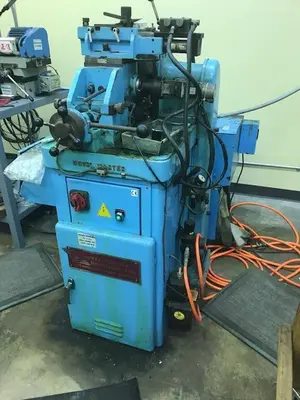

ROYAL MASTER TG 12X4 CENTERLESS GRINDER (14675)

ROYAL MASTER MODEL TG12X4 CENTERLESS GRINDER WITH AUTOMATIC CYCLE OPTION
STOCK # 14675

Serial No. 2861 New 2007

Motor Drive with 10 HP AC Motor & Controls

Equipped With:
Thru Feed Grinding
New Servo Drives Recently Installed
Thru Feed Work Rest
Coolant Filtration System
Auto Lube System.

SPECIFICATIONS:
Capacity:............................0.004"- 1 1/2"
Grinding Wheel Size:.................12" x 4" Wide
Regulating Wheel Size:...............6" x 4"
Grinding Wheelhead:
Speed:...............................75- 80 RPM
Max. Swivel For Taper Grinding:......5 Degrees
Regulating Wheelhead:
Speed (Variable):....................20- 500 RPM
Max. Angle Of Tilt For Thru Feed Grinding:...6 Degrees
Approximate Dimensions (L x W x H):..........54" x 30" x 66"
Approximate Weight:..........................2,300 Lbs.

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
