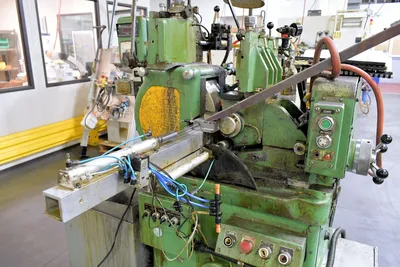

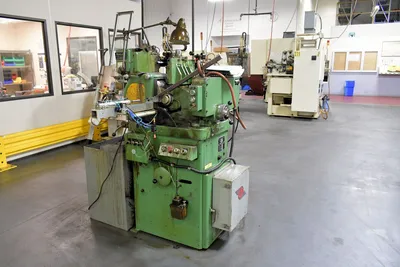

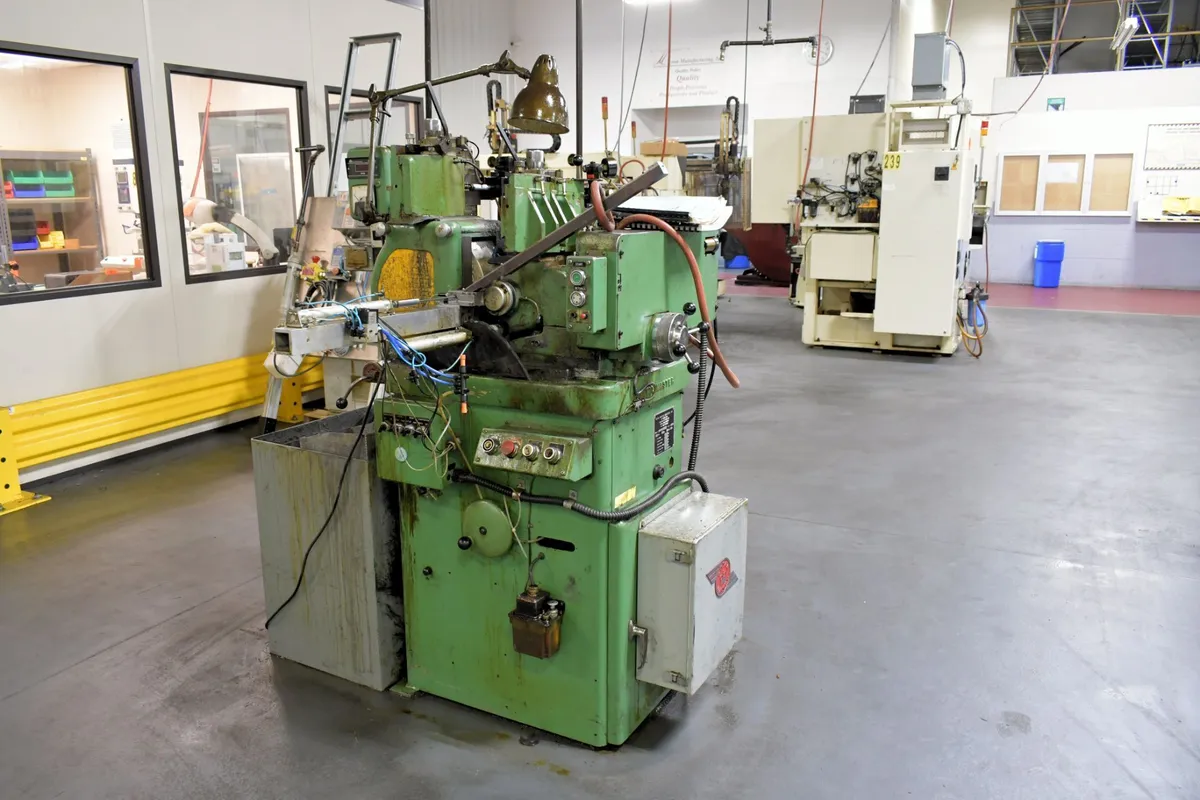

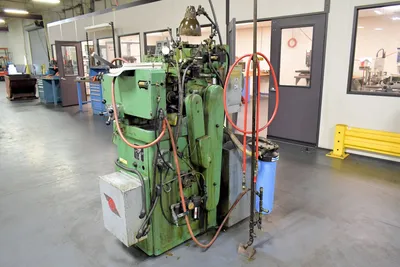

ROYAL MASTER TG 12X4 CENTERLESS GRINDER WITH AUTOMATIC CYCLE OPTION (14674)

ROYAL MASTER CENTERLESS GRINDER WITH AUTOMATIC CYCLE OPTION
STOCK # 14674

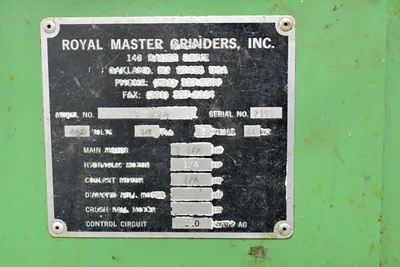

MODEL: TG12x4 S/N: 2191 NEW: 1996

CAPACITY:
INFEED AND THRUFEED ....... 0.004" TO 1.5" DIA.
LENGTH .....................12' ON 0.5" DIA.

WHEELS:
MAXIMUM GRINDING WHEEL .... 12" DIA. x 4.5" WIDE
MINIMUM GRINDING WHEEL .... 10" DIA. x 1/4" WIDE
MAXIMUM REGULATING WHEEL .. 6" DIA. x 4.5" WIDE
MINIMUM REGULATING WHEEL .. 1/4" WIDE W/SPOOL

SPINDLE SPEEDS:
GRINDING WHEEL ....... CONSTANT SPEED 2,040 RPM
REGULATING WHEEL....... INF. VARIABLE 25 TO 480 RPM

REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR
THRUFEED GRINDING ........ 6 DEGREES
MAX. SWIVEL FOR
TAPER GRINDING ........... 5 DEGREES

APPROXIMATE FLOOR SPACE ... 24" x 48"
APPROXIMATE WEIGHT ........ 2,800 LBS

EQUIPPED WITH:
AUTOMATIC CYCLE OPTION .... AUTOMATIC INFEED
"PRECISION" REGULATING WHEEL SPINDLE
"AIR-SENSING" HIGH ACCURACY DRESSER FOR THE
GRINDING WHEEL
"AIR-SENSING" HIGH ACCURACY DRESSER FOR THE
REGULATING WHEEL
PRECISION REGULATING WHEEL HOUSING, WITH
AUTO LUBRICATION

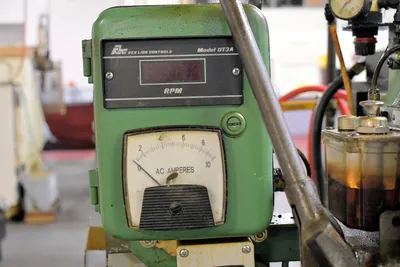

DIGITAL RPM INDICATOR FOR THE REGULATING WHEEL SPEED

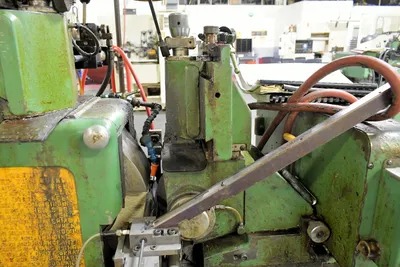

INFEED WORK REST
DIAL INDICATOR FOR REGULATING WHEEL MOVEMENT
COOLANT SYSTEM

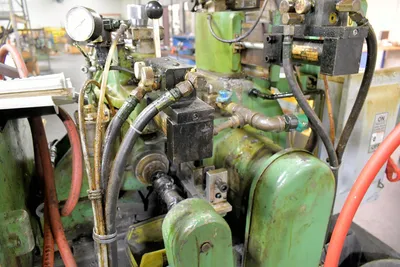

SELF CONTAINED HYDRAULIC SYSTEM
7.5 H.P. MAIN DRIVE MOTOR
3/60/208-230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS,
14 FULL LOAD AMPS

**TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
