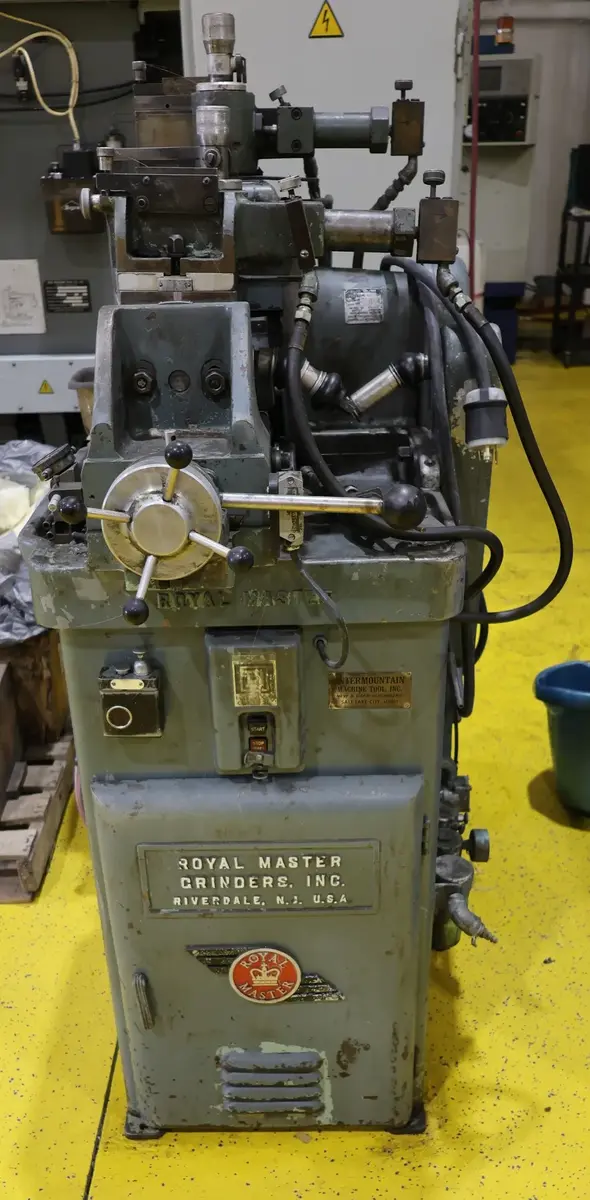

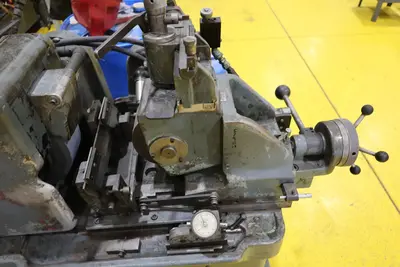

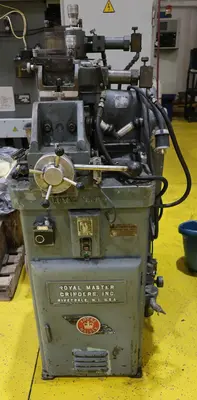

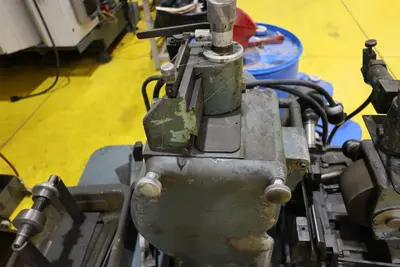

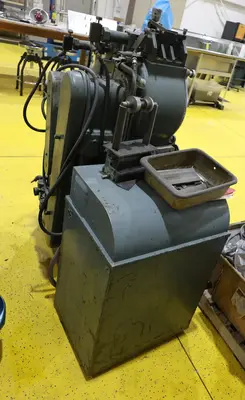

ROYAL MASTER TG 12X4 CENTERLESS GINDER (14673)

STOCK # 14673

SPECIFICATIONS:
Infeed Capacity - Diameter.........1"
Thrufeed Capacity:
- Diameter..........1"
- Length............12' (up to 0.5" Dia.)

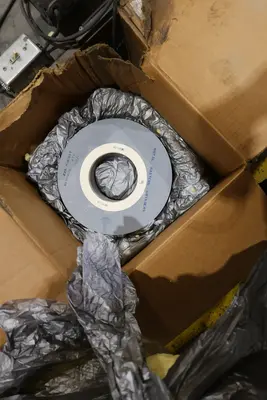

Grinding Wheel:
- Maximum Size............12" Dia. x 4" Wide - 5" Hole
- Minimum Size............10" Dia.
- Speed - Constant............2,040 RPM
Regulating Wheel:
- Maximum Size............6" Dia. x 4" Wide
- Minimum Size............4" Dia. x 0.125" Wide
- Speed - Infinitely Variable............40 - 480 RPM
Main Drive:
- Power.............5 HP
Power Transmission
To Grinding Wheel Timing Belt
To Regulating Whee; Variable Speed, Drive-Timing, Gear Belt-V-Belt

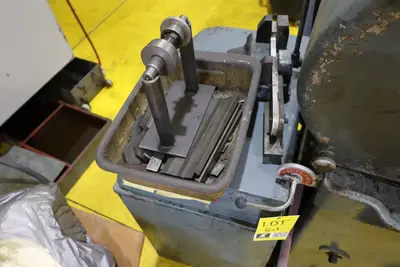

Coolant Equipment
40 Gallon Capacity (3 Stage) Tank 1/6 H.P. Pump Motor
Diamond Tools
Grinding Wheel Dresser- 1 CT.
Regulating Wheel Dresser 1/2 CT.
Floor Space - 24" x 48"
Weight - Catalog............2,300 Lbs.

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
