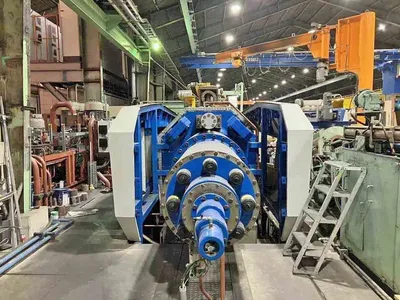

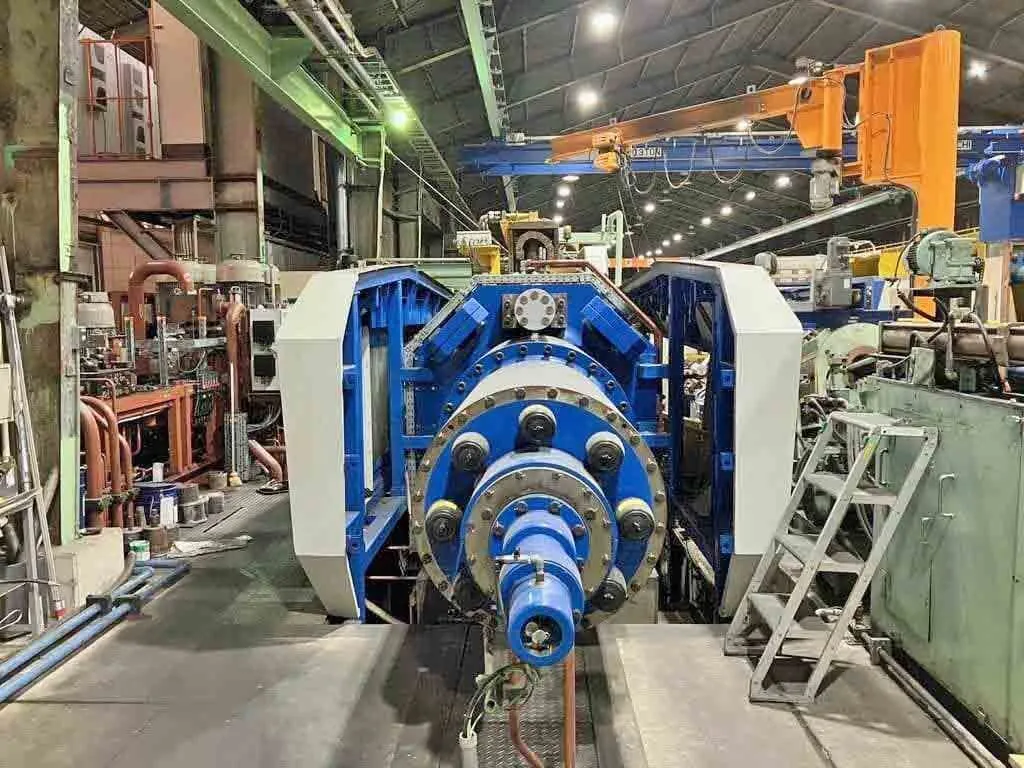

1450 TON SMS ALUMINUM EXTRUSION PRESS (14670)

1450 Ton SMS Aluminum Extrusion Press
STOCK # 14670
Year of Manufacture: 2016

Production Products: Automobile Sensor Cover, Building Material, etc.

-Capacity: 1450 Ton
-Pressure: 310bar (4,500 PSI)
-Extruding Center: 1000mm (39.3")
-Extruding Height: 3400mm (133.8")
-Hole of Billet Diameter: 160mm (6.3")
-Stroke: 960mm (37.8")
-Press Speed: 23mm/sec Max. (0.9"/sec) Variable
-Press Speed: 17mm/sec (0.7"/sec)
-Control System: Siemens S7

-Billet Container:
Pressing Force: 140 Ton
Pullback Force: 100 Ton
Intake Stroke: 1155mm (45.5")
Hole Range: 160mm (6.3")
Container Length: 830mm (32.6")
Billet Length: 250 - 800mm (9.8" - 31.5")
In the case of billet has been split into two: 200mm (7.8")

-Diameter of the Profile/Tool Package:
Pressure Plate Opening: 190mm (7.5") Dia. x 230mm (9") Wide
Tool Package: 330/277.55mm (13"/10.9") Dia. x 380mm (15") High

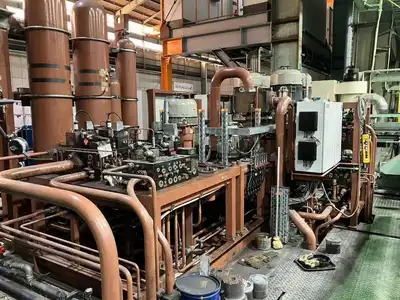

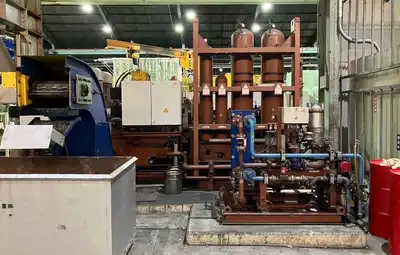

-Hydraulic System:
Four High Pressure Oil Pumps (Double Internal Gear Pumps)
Operation Pressure: 310bar, Max. (4,500 PSI)
Transport Amount Max.: 172 Liters Per Min.
Drive Force: 75KW
Drive RPM: 400 - 2200 RPM
Motor Type: V1

-High Pressure Control Pump:
One High Pressure Pump
Operation Pressure: 320bar, Max. (4,600 PSI)
Transport Amount, Max: 9.2 Liters Per Min.
Drive Force: 5.5KW
Drive RPM: 400 - 1500 RPM
Motor Type: V1

-Low Double Pressure Pump:
One Low Double Pressure Pump
Operation Pressure: 200bar, Max. (2,900 PSI)
Transport Amount, Max.: 90 Liters Per Min.
Drive Force: 37KW
Drive RPM: 400 - 1500 RPM
Motor Type: V1

-HybrEx Drive (Hybrid electric/hydraulic design)
Servo Electric Drive
Billet Container Drive: 15.7KW x 2 Units
Operation Cross Head: 31.7KW x 2 Units
Billet Loader: 14KW

-Electrics:
2220 Operation Voltage: 440 V plus minus 5%, 3 Phase
Frequency: 60 HZ
The connected load of the motor switching device: 600KVA
The connected load of container heater switching device: 35KVA

-Billet Container:
Total Electric: 15KW x 2 Units
Hole of Billet Diameter: 160mm (6")
Specific Pressure of Press: 721N/mm2 (105,000 PSI)
Length: 830mm (32.6")
Weight: 2800kg (6,200 lbs.)
Press Punch for Container Hole / Press Disc
160mm

-Compressed Air:
6 Bar (87 PSI)

-Installed and Running

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
