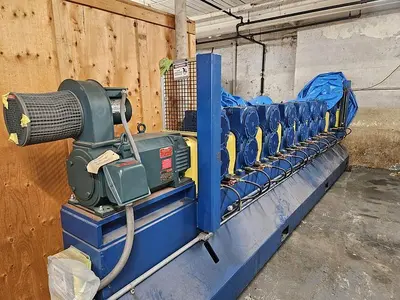

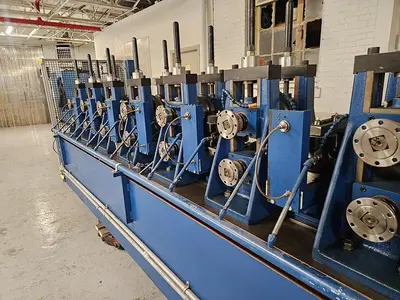

Yoder WH-200 Series 2" Tube Forming Mill (14646)

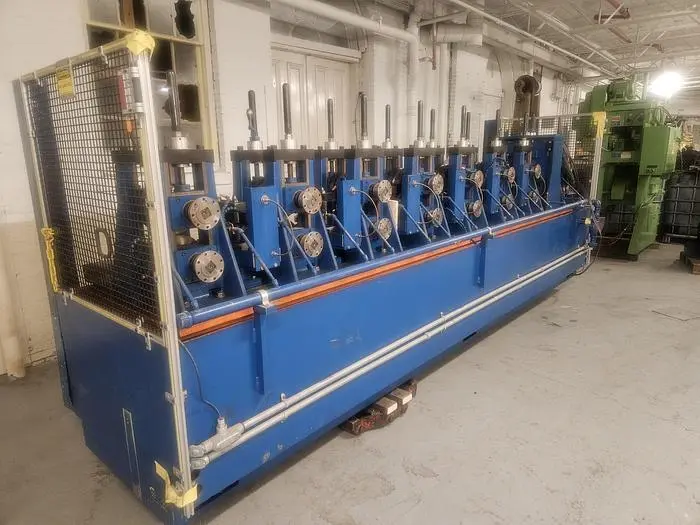

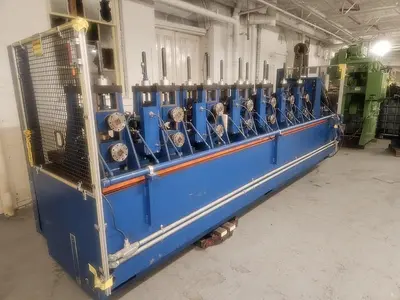

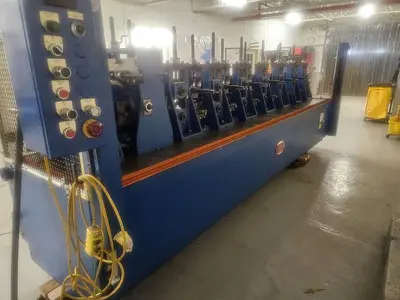

YODER WH-200 TUBE MILL
Stock # 14646

Features of the Yoder WH- 200 Series Roll Forming Systems include:

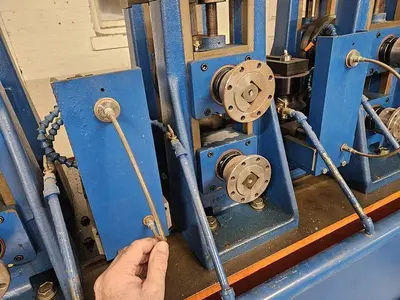

Double Timken Bearings inboard and outboard
Outside locknuts for ease of bearing maintenance

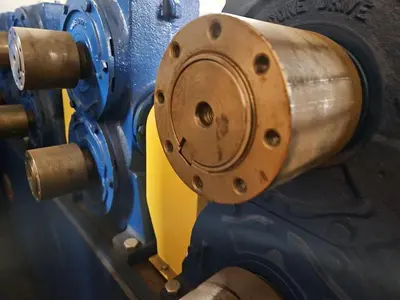

Splined or square drive shafts for connecting spring loaded universals
Ground Spacers for ease of Should alignment
Easy On Shafts

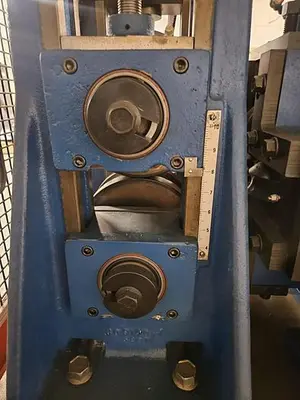

Slotted outboard housings, coupled with Bolted “C” Washer shafts for ease
of tooling changeover “C”-washer end shaft arrangement allows removal
of outboard housing without complete removal of shaft bolt.
Option of Single Point Adjustment with Digital readouts and
Spring loaded coupling for individual adjustment, if required
Bolted-In Keys
Slotted outboard housing allow removal without fully removing hold-down bolt.
Timken tapered roller bearing in both inboard and outboard bearing boxes.
Inboard bearing box does NOT need to be dismantled to set bearing
pre-load OR to set shoulder alignment.
Common bearing seals used on both inboard and outboard bearing boxes.
Shaft keys are bolted to the shaft so they will not fall out and get lost.

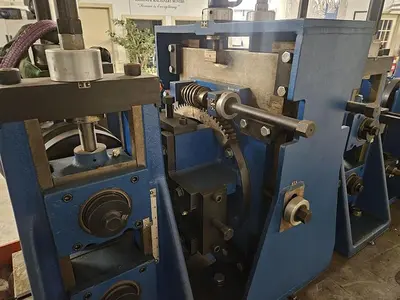

Single-Point Adjustment (SPA) feature available.
Common Seals Inboard and Outboard

Sizes and Capacities

WH-200

Roll Shaft Diameter (in) 2
Roll Shaft Diameter (mm) 50.8

Tube OD Max. (in) 3
Tube OD Max. (mm) 76.2
Tube OD Min. (in) 0.5
Tube OD Min. (mm) 12.7
Tube Wall Max. (in) 0.134
Tube Wall Max. (mm) 3.4
Tube Wall Min. (in) 0.02
Tube Wall Min. (mm) 0.5

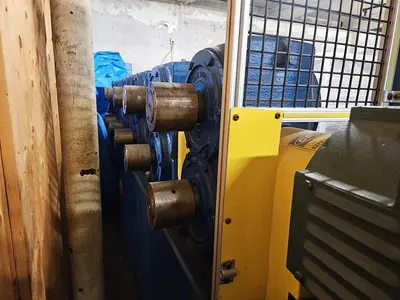

**PLEASE NOTE: THIS MACHINE IS MISSING DRIVE AXLES
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
