2" ABBEY ETNA MODEL 208 2 DIE SWAGING MACHINE (14643)

2" ABBEY ETNA MODEL 208 2 DIE SWAGING MACHINE
STOCK # 14643

MODEL NUMBER: 208

SPECIFICATIONS:

Tube Capacity, Max.: 2"
Solid Capacity, Max. 1"

Diameter of Roll: 2-3/8"
Number of Rolls: 18"

Width of Die: 3-1/4"
Thickness of Die: 2-1/4"
Die Length: 8"

Flywheel Face: 6-1/2"
Flywheel Diameter: 41-1/8"

Number of Belts: 8

Diameter of Hole Through Spindle: 2-9/16"

RPM, Swager: 175
Hammer Blows Per Minute: 3150

Center Height: 40"

EQUIPPED WITH:

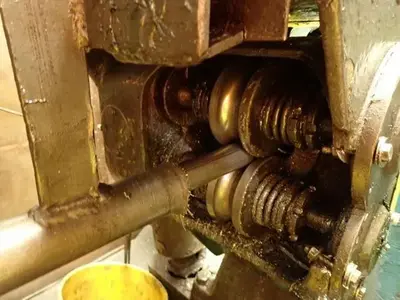

Powered Roll Feeds, Both Entry and Exit Sides
was Producing DOM Tubing

Automatic Die Cavity Lubrication

MOTOR DATA: 25 HP Main
(2) 2 HP Feed Roll Motor

WEIGHT: 17,000 LBS APPROX

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
