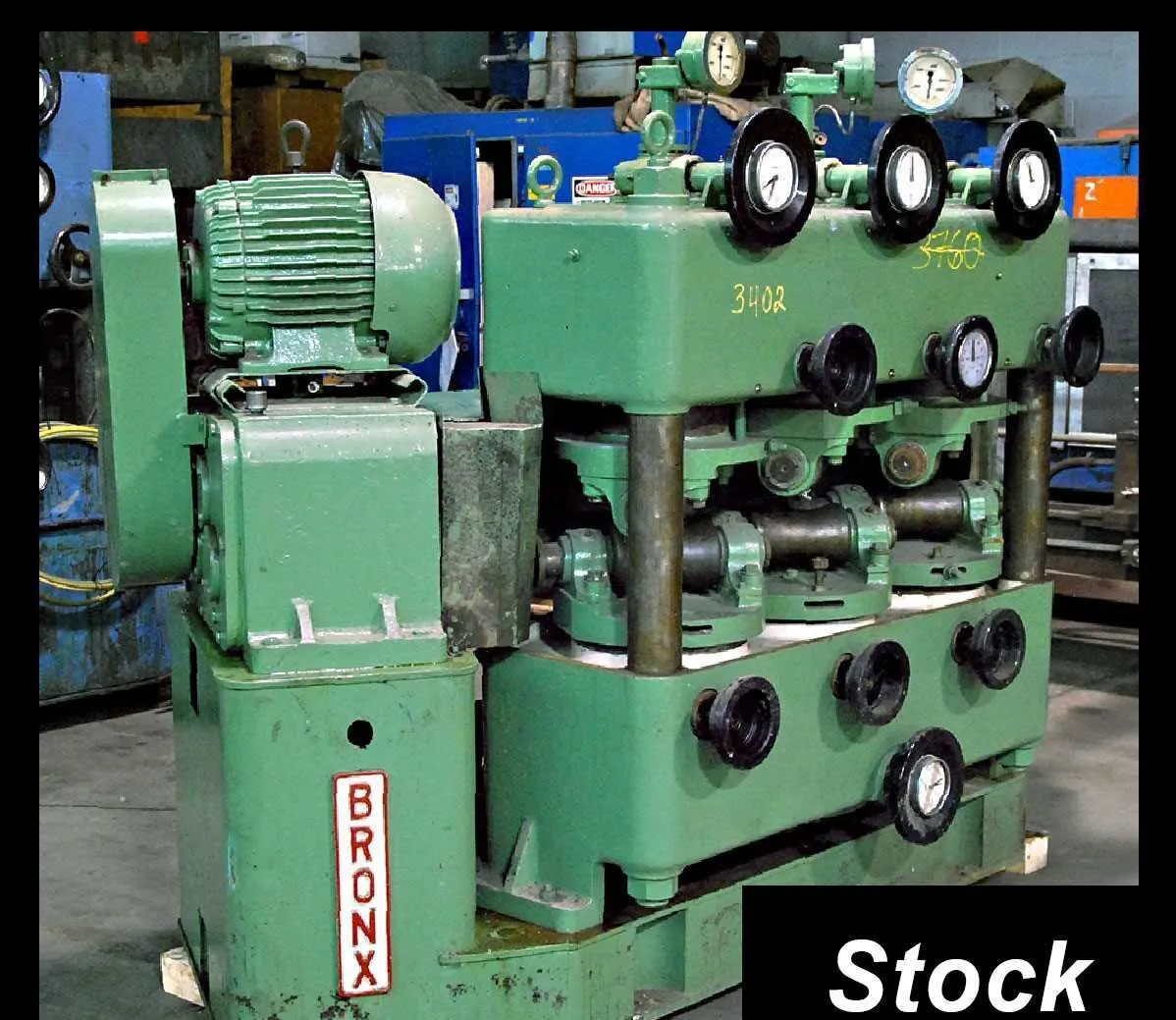

Used 2" (50 mm) x .197" (5 mm) BRONX #6CR-4-1/2BW 6-Roll Tube Straightener (14599)

Bronx 6CR- 4-1/2 BW 6 Roll Straightener
Stock # 14599

MANUFACTURER: BRONX
MODEL NUMBER: 6CR 4-1/2 BW
SERIAL NUMBER: 281074
YEAR: 1974

SPECIFICATIONS:
6-Roll Vertically Opposed
Cross Roll Design
Maximum Diameter: 2" (50.8 mm)
Minimum Diameter: .394" (10.0 mm)
Maximum Wall Thickness: .197" (5.00 mm)
Maximum Diameter Admitted: 3" (76.2 mm)
Feed Direction: Right to Left
Roll Size: 4" Diameter x 8" Long
Manual Roll Adjustment: 3" (76.2 mm) Approximate
Operating Speed: 60 - 120 MPM

EQUIPPED WITH:
(2) Motors: 7.5 HP/3.7 Kw, 415 v/3/50, 1425/720 RPM

OVERALL DIMENSIONS: 8' x 5' x 6'
APPROXIMATE WEIGHT: 8,300 Lbs.

Notes: Ran in 2025. Gauges do not work
**Temporary Specifications Subject to Revisions**
**PRICEQ QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
