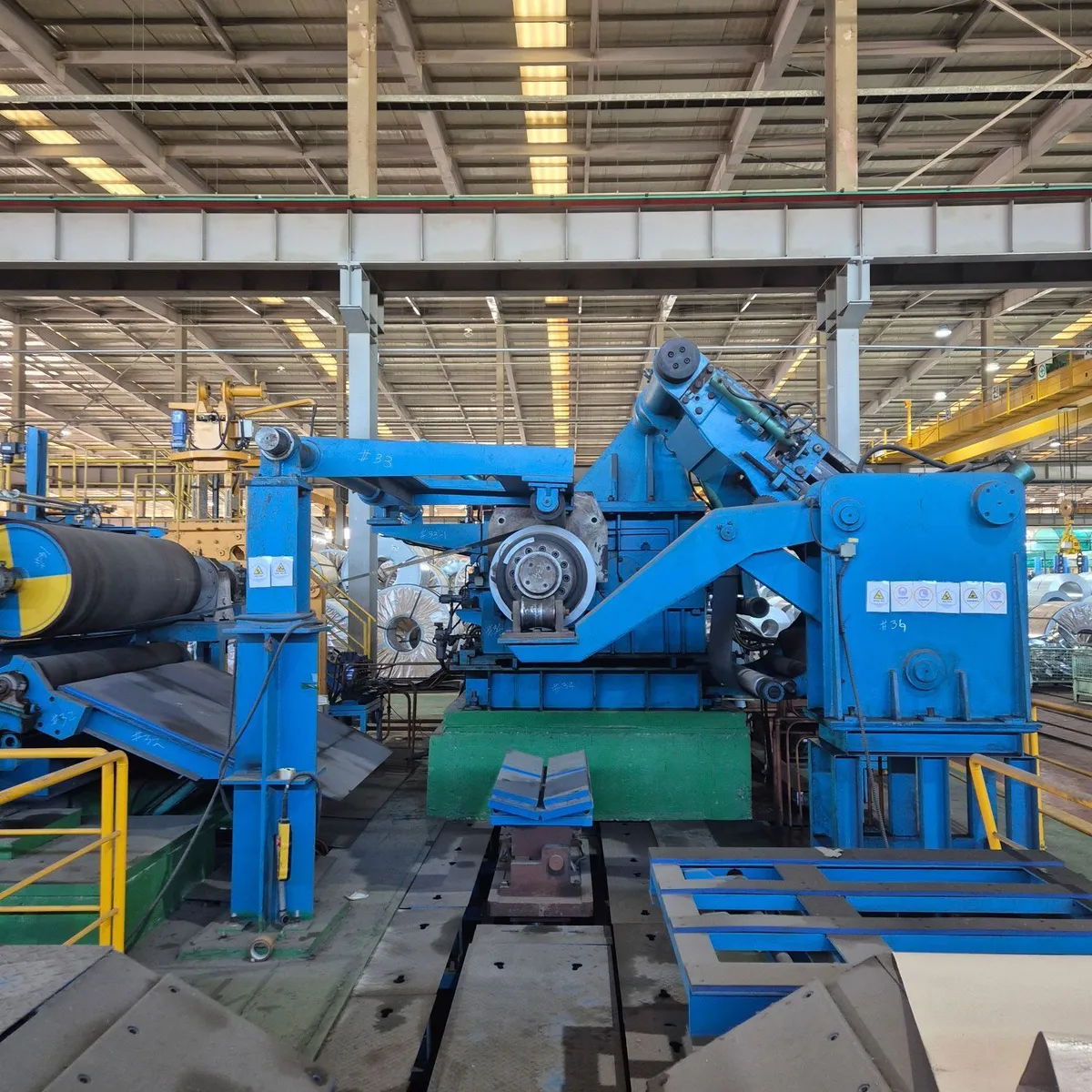

27.5" (700mm) - 63" (1600mm) TENSION LEVELING LINE (14595)

TENSION LEVELING LINE
STOCK # 14959

GENERAL SPECIFICATIONS

Materials: AL 5ΧΧΧΧ, 6ΧΧΧΧ & Steel
Tensile Strength: Max.52㎏/㎟
Thickness: Min 0.2mmT ~ Max 2.0mmT
Width: Min 700mm ~ Max 1,600mm
Coil Weight: Max.13,000Kg
Coil Inter Diameter: Ø508, Ø610
Coil Outer Diameter: Min Ø800mm ~ Max. Ø2,000mm

PRODUCTION DATA

LineSpeed: Max. 100mpm
Threading Speed: 10mpm
Control System: AC Vector Control
Coil Inner Diameter: Ø406, Ø508

POWER SOURCE

Main: AC 3Φ 440V±10%
Control: AC 1Φ 220V±10%
Hydrauric Pressure:
Normal: 100 ㎏/㎠
Pneumatic Pressure:
Normal: 5 ㎏/㎠

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
