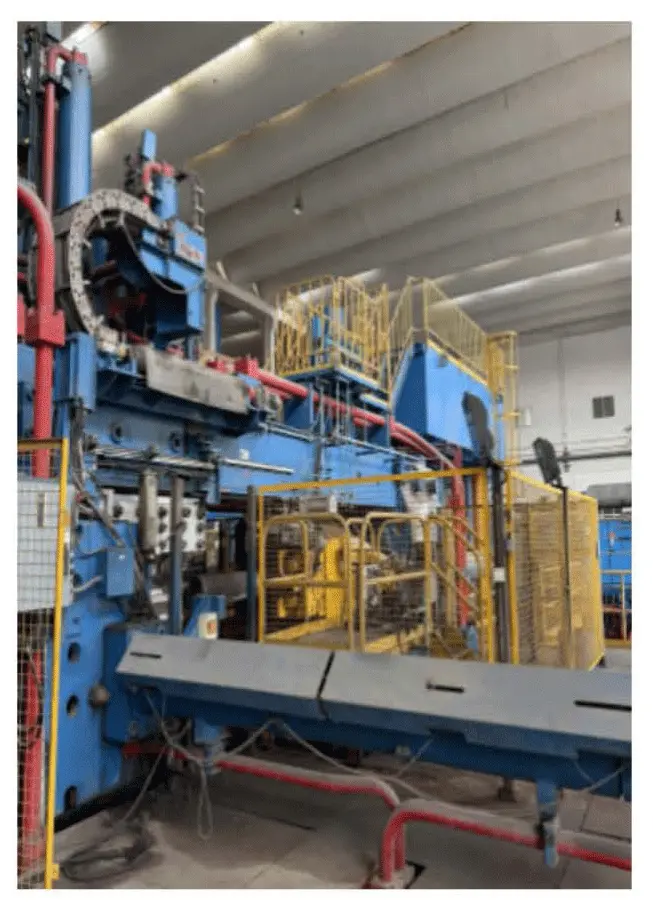

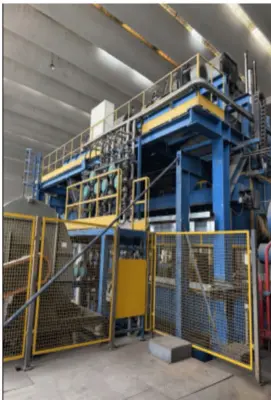

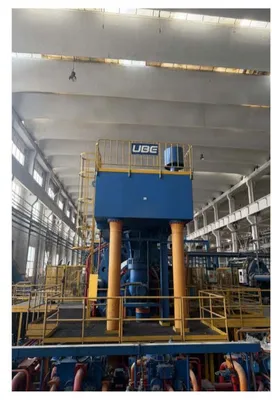

One Used 6800 MT UBE Aluminum Extrusion Press (14594)

One Used 6800 MT UBE Aluminum Extrusion Press
Stock # 14594

Inner hole of the extrusion cylinder 18" 467mm
Inner bore 14" 365mm
Length 1405mm
Outer diameter 1546mm
Extrusion Stem 18" 465.4mm
14” 363.6mm
Length 1880mm
Effective length 1500mm
Aluminum ingot diameter 18" 457mm
diameter 14" 356mm
Maximum length 1346mm
Minimum length 610mm
Press pressure Forward maximum pressure 250kg/cm²
Reverse maximum pressure 250kg/cm²
Master cylinder stroke forward 3056mm
Reverse 1436mm
Extrusion cylinder stroke 152.5mm
Speed Squeeze rod airspeed forward 400mm/s
Extrusion speed 25.4mm/s
returns 400mm/s
The extrusion barrel advances 200mm/s
The extrusion cylinder returns 180mm/s
Under scissors (forward) 700mm/s
Scissors on (forward) 650mm/s
Under scissors ((reverse) 700mm/s
Scissors on (reverse) 650mm/s

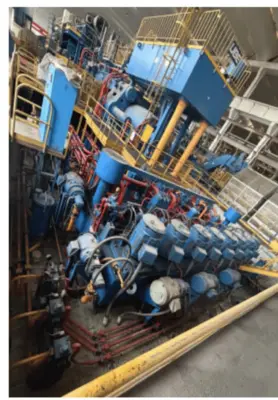

Pump Main Pump 8 Variable Piston Pump (A2V500HM SUBMERGED TYPE)
250kg/cm² 506Lit/Min 1200rpm
Cooling Filter Pump 2 Constant Transfer Pump
7kg/cm² 280+196Lit/Min 1800rpm
1 set of extrusion cylinder pressure holding pump Constant transfer pump
250kg/cm² 65Lit/Min 1200rpm
Auxiliary Pump 1 Constant Transfer Pump
70kg/cm² 178+89Lit/Min 1200rpm
Speed lifting and cooling pumps 3 Constant transfer pumps
80kg/cm² 271+89Lit/Min 1800rpm
Servo pump 1 set Constant transfer pump
50kg/cm² 152+89Lit/Min 1200rpm
Motor Main pump motor 8 units 230KW 480V
Anti-drip rat cage induction direct start motor
Servo and voltage holding motor 1 set 55KW 480V
Anti-drip rat cage induction direct start motor
Speed boosting and cooling power 3 sets 75KW 480V
Anti-drip rat cage induction direct start motor
Cooling filter motor 2 sets 11KW 480V
Anti-drip rat cage induction direct start motor
Auxiliary pump motor 1 set 37KW 480V
Anti-drip rat cage induction direct start motor
Extrusion drum heating outside 150KW
2 ends 20 KW/end

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
