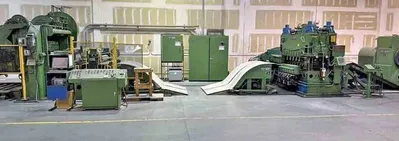

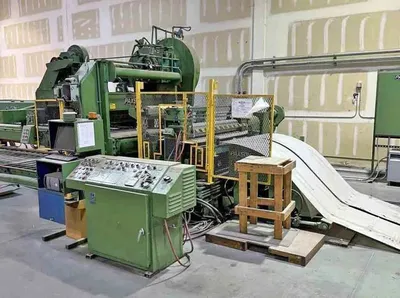

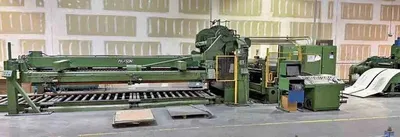

PAXSON 60" x .135" x 40,000lb Cut-to-Length Line

60" X 0.135" PAXSON CUT TO LENGTH
Stock # 14588

Description:

Manufacture:
- Paxson (USA)
- New in 1976
- Continually update and maintained

Material:
- Aluminum

Strip Width:
- 60" (1524mm)

Strip Thickness:
- .020" to .135" (0.5mm to 3.4mm)

Coil Size
- ID = 20" - 24" (508 - 609mm)
- Weight = 40,000 lbs. max (12,195 kg)

Line Direction:
- Right to Left

Equipment:
Entry Coil Car:
- Above Floor Type
- Hand Pendant Control
- Self-Contained Hydraulic Power Unit

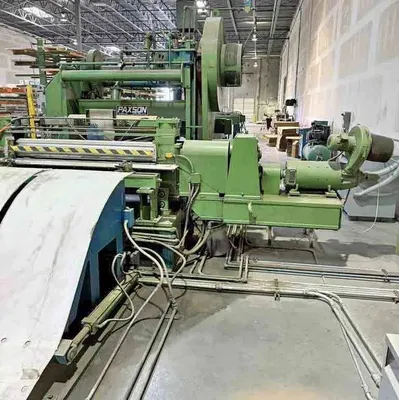

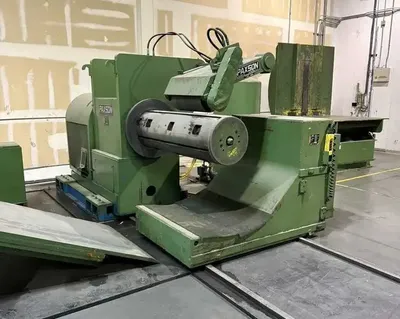

Uncoiler:
- Mandrel Type
- Overarm Holddown
- Slide Base
- Water Cooled Brake
- Hydraulic Motor Feed-up

Peeler Table:
- Hydraulic Lift & Extend

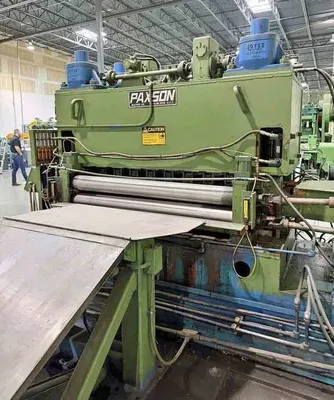

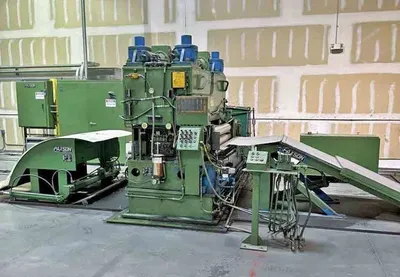

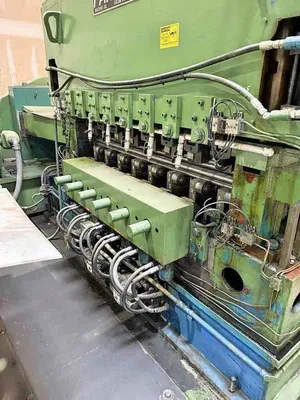

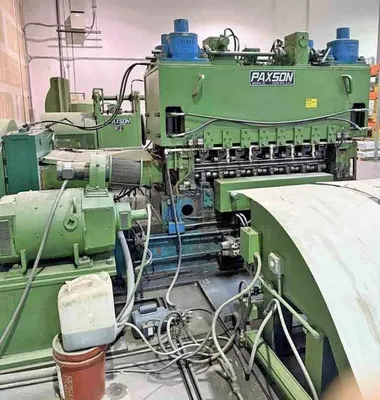

Paxson Precision Leveler: 6 Hi
- 1.750" Roll Diameter x 74" Roll Face
- Entry Pinch Rolls, Powered

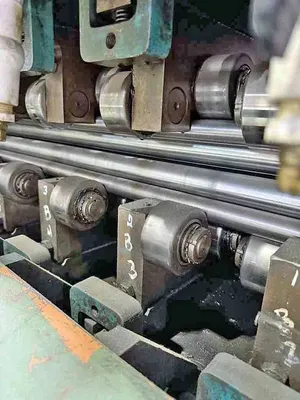

- 8 Flights of Backups, (6 Flights Motorized)
- 125 hp WER DC Motor, 1750/2000rpm, 500 volts

Looping Pit Table

Roll Feed:
- Entry Side Guides
- Full Width Rolls
- Exit Paper Applicator
- 30 hp Emerson DC Motor

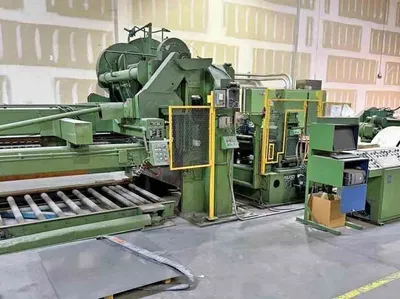

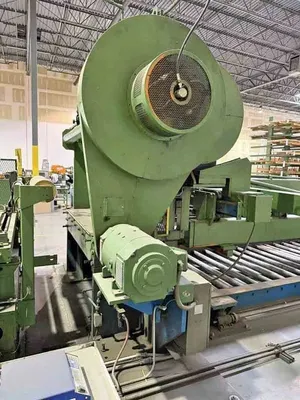

High Speed Shear:
- Over Driven, Mechanical
- Manual Blade Gap Adjust
- 30 hp WER DC Drive Motor, 1750rpm, 500 volts
- Air Clutch/Brake

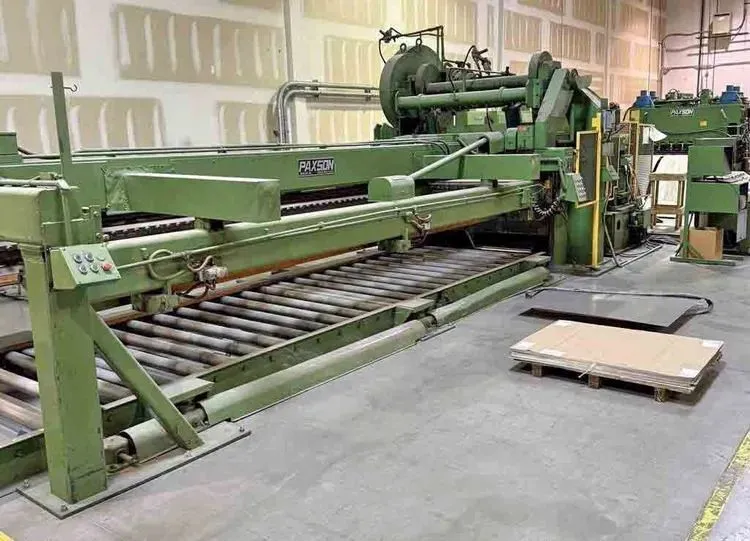

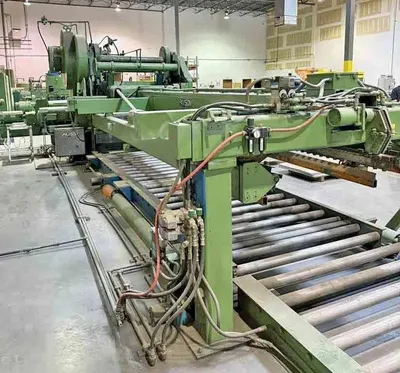

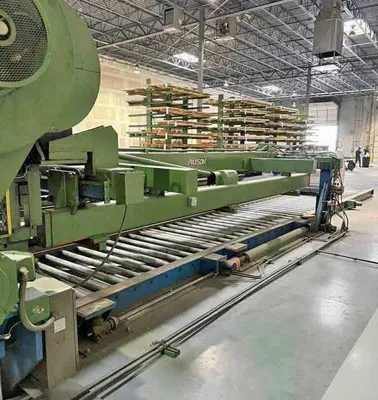

Automatic Stacker:
- Flipper Arm Type
- Powered Width Adjustment
- Powered Length Adjustment
- Non Scratching Roller Supports
- 20' Maximum Length
- Mechanical Screw Jack Lift Table
- Powered In-Line Ejector Conveyor

Exit Runout Conveyor:
- Powered Rolls

Included

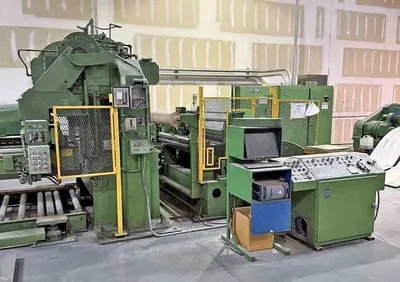

- Main Operators Control Panel

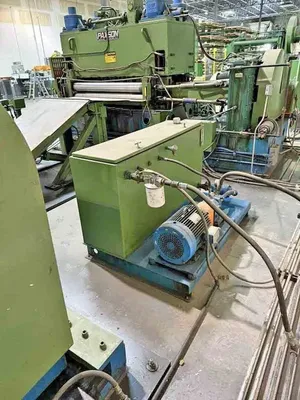

- Water Cooler
- Hydraulic Power Unit
- Electrical Controls and Drives
- Air Compressor = 220 KVA, 480 V

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
