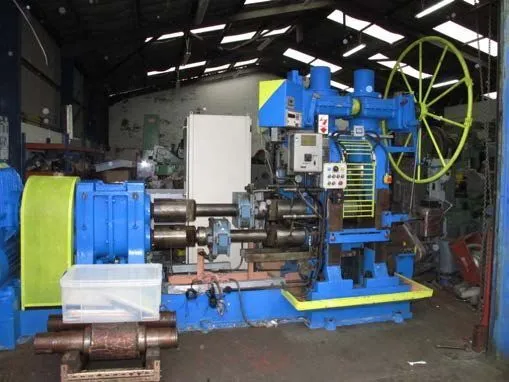

254mm x 304mm (10" x 12") FARMER NORTON 2 HIGH REVERSING ROLLING MILL Stock # 14551

254mm x 304mm (10" x 12" 2 HIGH FARMER NORTON REVERING ROLLING MILL
Stock # 14551

Manufacturer:.......... Sir James Farmer Norton & Co. Ltd, Manchester,
England
Year of Manufacture:... 1967 (Rebuilt by George Jones 2010)
Roll Diameter:......... 254mm (10”)
Roll Face:............. 304mm (12”) Provision for 381mm (15”) If Required
Roll Separating Force:. at 22.8 m/min (75 FPM) 80 Tons
at:.................... 15.2 m/min (50 FPM) 90 Tons
at:.................... 7.6 m/min (25 FPM) 100 Tons
Rolling Speed:......... 0/22.8 m/min (0/75 FPM)
Passline:.............. 914mm (36")
MAIN DRIVE DATA

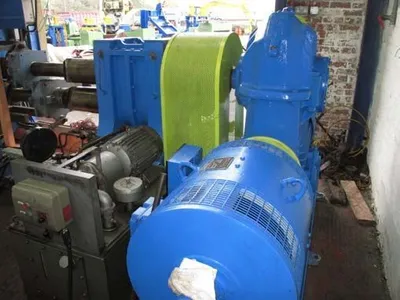

MAIN MILL MOTOR
Manufacturer:.......... English Electric
Power:................. 0/60 HP DC
Speed:................. 0/1500 RPM
Volts:................. 500V
Current:............... 98 Amps
Mill Motor Coupling:... Holset Type RB 0.5
Worm Unit Output
Coupling:.............. Holset Type WB6

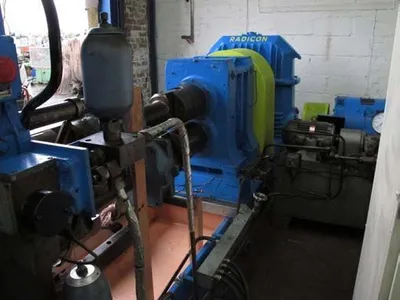

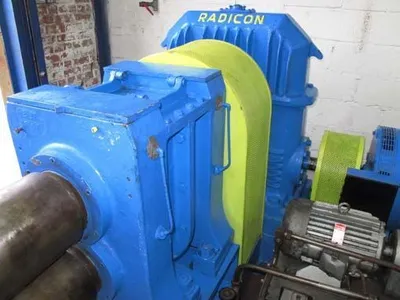

Worm Unit
Manufacturer:.......... David Brown Radicon
Type:.................. BU-17-50-L
Roll Neck Beatings:.... Timken M.231649 D - M231610

SCREWDOWN DATA
Worm Unit
Manufacturer:.......... David Brown Radicon
Type:.................. BU-17-50-L
Motor
Manufacturer:.......... English Electric
Power:................. 3 HP
Speed:................. 705 RPM
Worm Reduction Ratio:.. 96/1

COMPRISES

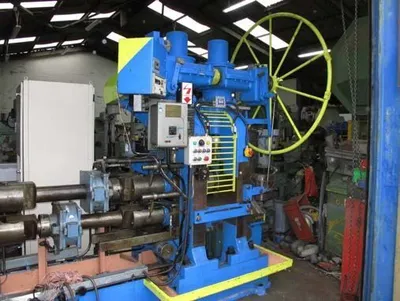

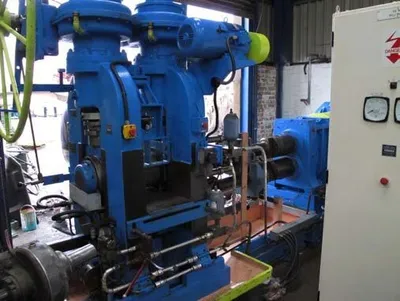

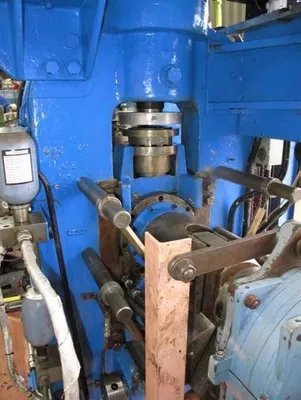

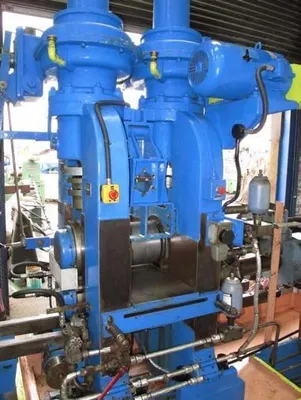

2-High Mill Stand
Elliott Load Cells
DAVID BROWN Radicon Gearbox
2-Hi Pinion

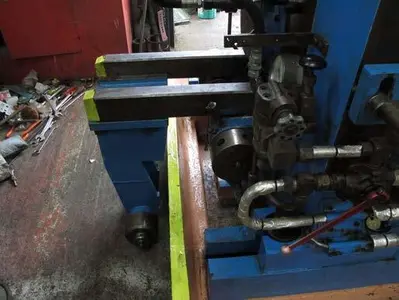

Roll Change Sled
Baseplates

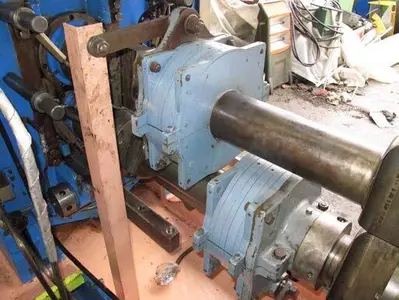

Two (2) Drive shafts
Fitted with ASEA Ringtorductors Torque meters

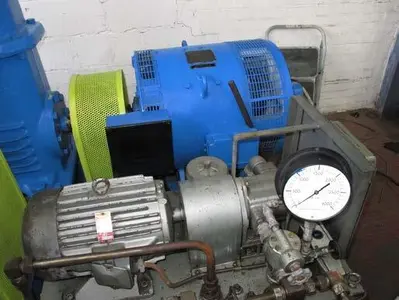

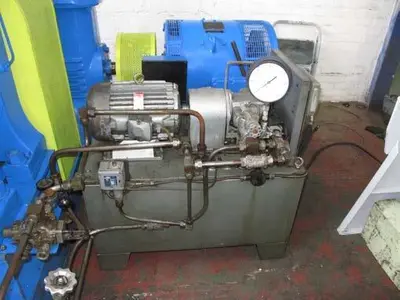

VICKERS SPERRY RAND Hydraulic Pack
Motor: English Electric
Power: 10 HP
Speed: 1445 RPM
Voltage: 415V

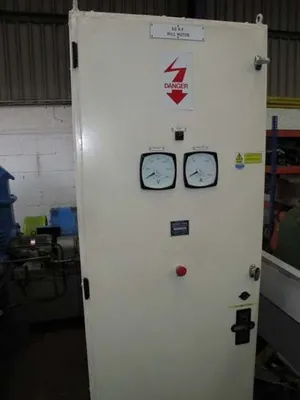

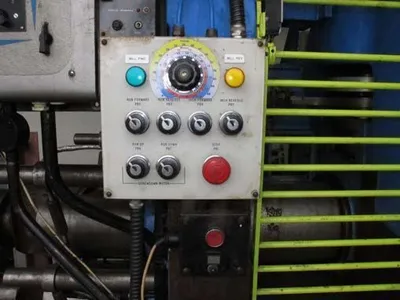

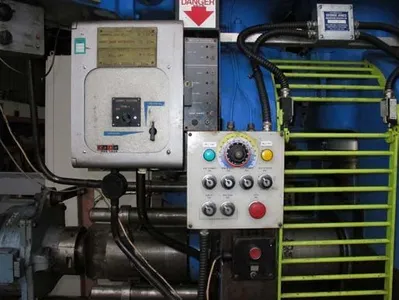

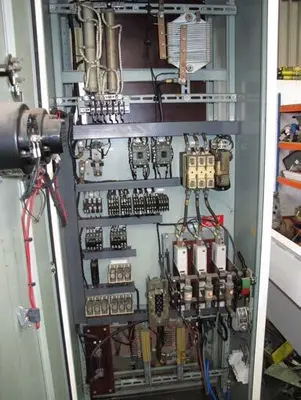

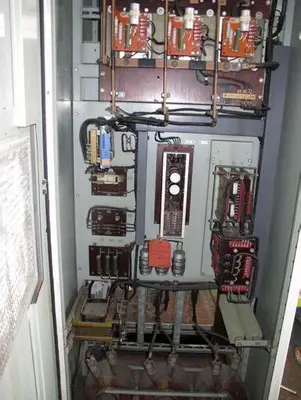

Electrical Controls

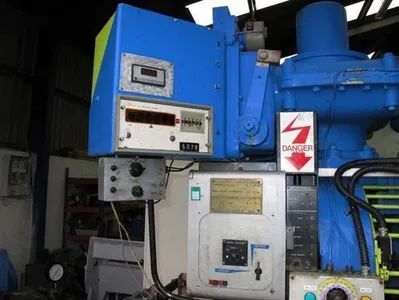

ORBIT CONTROLS Bi-Directional Counter
One (1) New Set of Rolls

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
