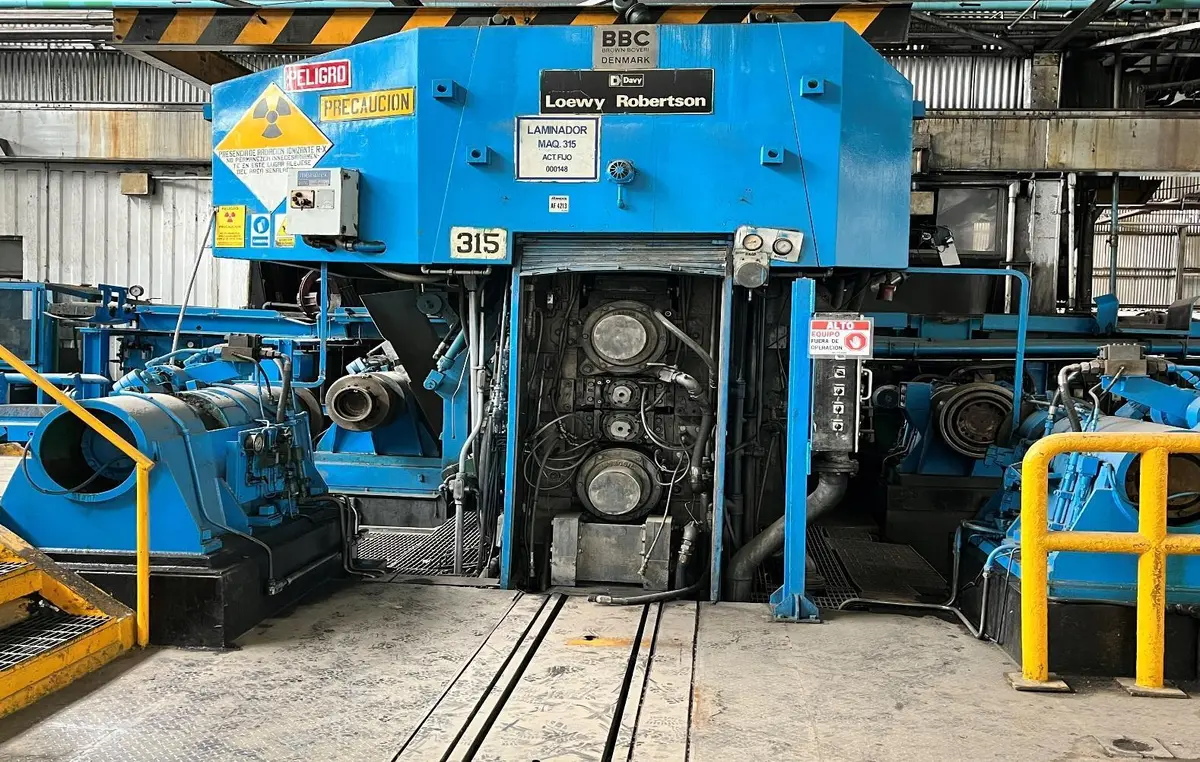

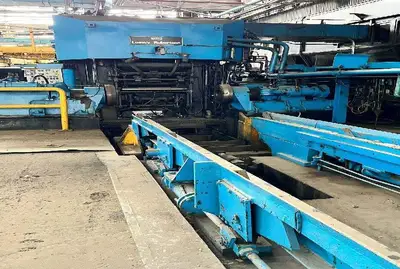

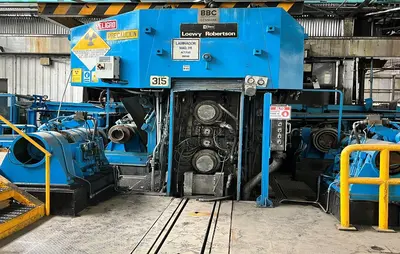

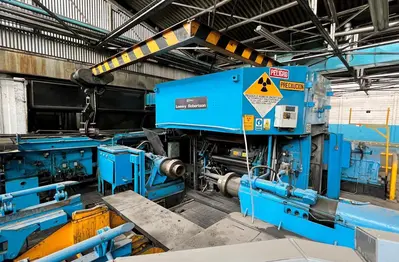

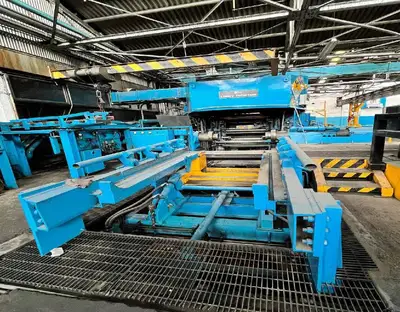

9 ” (228.6 mm) X 22” (559 mm) X 43.3” LOEWY 4 HIGH ROLLING MILL (14531)

9” (228.6 mm) X 22” (559 mm) X 43.3” (1100 mm)
Stock # 14531

Type Mill: 4 High Rolling Mill
• Manufacturer: Loewy
• Thicness measurement: Not Available
• Technical Specifications:
• Width min-max: 620 – 1100 mm.
• Entry Thickness: 0.5 mm Exit Min Thickness: 0.089 mm.
• Line Speed: 1440 mpm max
• Max Coil weight: 5900 kg.

• Mill Data:
• Work Roll Face: 1100 mm
• Work Rolls Diameter: 280 mm. Back Up Rolls diameter: 559 mm.
• 2 x 260 Kw Motor drive

• Uncoiler Data: Recoiler Data:
• Coil ID: 400/527/600 mm Coil ID: 270/527 mm.
• Coil OD: 1710 mm Coil OD: 1710 mm.
• 2 x 60 Kw Motor Drive 1 x 60 kw 1 x 75 Kw Motor Drive
• Unistalled in Warehouse
• Control System Not Available
• Shapemeter Vidimon
• Control Electric & Hydraulics Not Available
• Edge trimmer
• Sold "as is, where is" EXW on seller's Warehouse
• Available:
• Rolls
• Steel Cores
LOEWY Robertson Foil Rolling Mill
Unistalled

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
