1.18" - 5" CALOW MODEL S-125 BAR PEELER (14519)

CALOW MODEL S-125 BAR PEELER
STOCK # 14519

Manufacturer CALOW
Model S 125
Year Completely reconditioned in 2023
Working range Ø 30 – 125 mm. finished diameter
Finishing tolerance ISO h9 (DIN 669) with inlet material complying with DIN 1013 norms
Bars length 2,5 - 8 mt.
Peeling depth Up to 3 mm. according to steel grade characteristics
Typical steel grades to be peeled Bearing steel, carbon steel, spring steel …
Advancing speed of the bar Adjustable from 0,5 up to 30 mt./min. stepless
Revolution of the cutting head Adjustable up to 1700 rpm
Cutting tools Carbide bits
Motor power 182 HP – d.c. motor 650 – 1’900 rpm
Tension 380 V. - 50 Hz.

COMPOSITION OF THE LINE

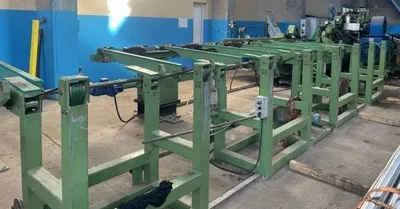

Loading table
Feeding roller conveyor with motorized height regulation
Entry pinch-roll – n°4 rollers at the vertical axis

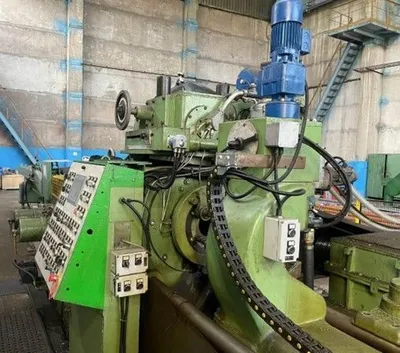

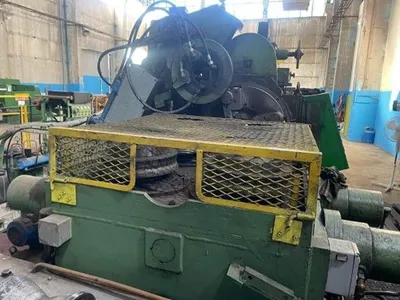

Peeling machine comprising: Front bar guiding system hydraulically controlled

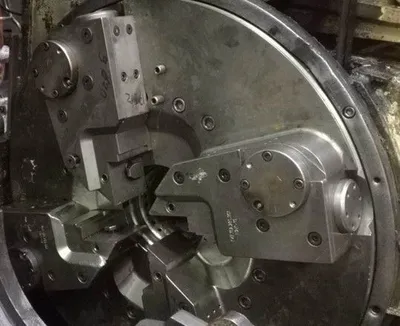

Peeling head
Back bar guiding system, hydraulically controlled Bar extraction carriage

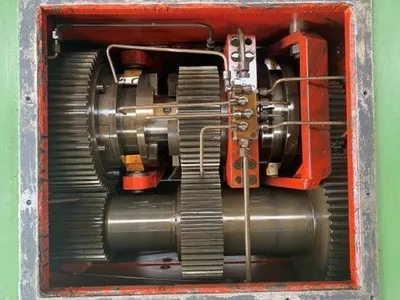

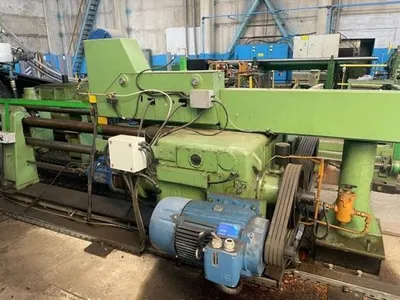

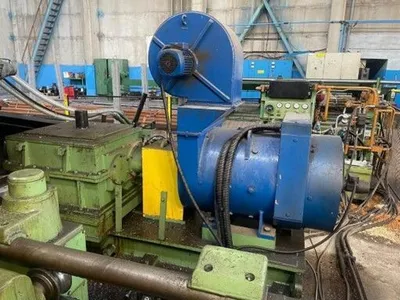

Main motor and transmission
Motorized cutter adjustment system
Double exit pinch-roll

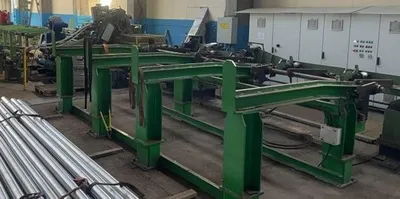

Discharging bench with motorized height regulation
Collecting cradles with lowering belts
Hydraulic equipment

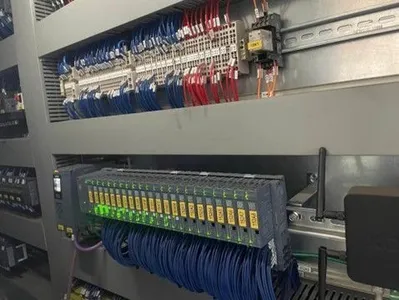

Electric cabinet

MACHINE CONDITION

In year 2023, the machine underwent the following repairing and upgrade:
• New driving belt
• New pinch-rollers
• New motor for tool adjusting
• New main bearings of the turning head
• New entry guide (main frame, brass slides, arms…)
• New labyrinth flange
• New d.c. motor for the synchro between feeding pinch-roll and exit carriage
• New electric system
• New sensors and on-board connections

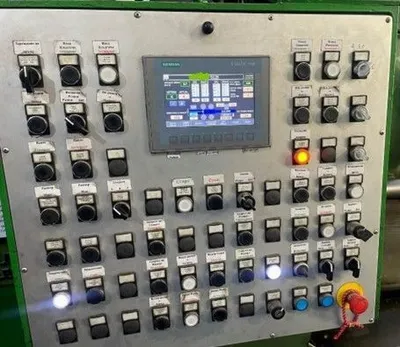

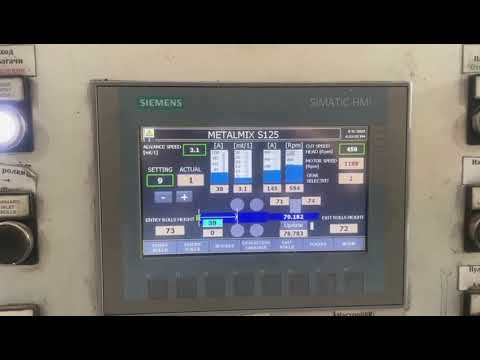

• New SIMATIC HMI
• New hydraulic unit
• New peeling head
• New bearings of the gear box
• General repairing of the carpentry
• Cleaning and painting

The machine is in perfect working conditions

**TEMPORARY SPECIFICATIONS SUBJECT TO REVISIONS**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
