4000 Ton SCHLOEMANN (SMS) EXTRUSION PRESS w/PIERCER (14517)

4000 Ton SCHLOEMANN EXTRUSION PRESS FOR HARD ALLOYS
Stock # 14517

MANUFACTURER: SCHLOEMANN GmbH (GERMANY)

CAPACITY: 4000 TONS (METRIC)
TYPE: DIRECT EXTRUSION PRESS WITH PIERCER
MOST RECENT USE: TITANIUM BAR
WATER HYDRAULIC WITH 3000 PSI ACCUMULATOR BOTTLES
DESIGNED FOR HIGH SPEED HIGH PRESSURE HARD ALLOY EXTRUSIONS
SUITABLE FOR TITANIUM, CARBON STEEL AND OTHER HARD ALLOYS
EXTRUSION BOTTLE PRESSURE: APPROX. 3000 PSI
EXTRUSION SPEED: 10-14 INCHES (254-355MM) PER SECOND
NOTE: NORMAL ALUMINUM SPEED 1-2 INCHES (25-50MM) PER SECOND
COST TO CONVERT TO AN ALUMINUM PRESS VERY HIGH TO INCLUDE:
-NEW BILLET SHEAR
-NEW DIE SLIDE
-NEW HYDRAULIC SYSTEM AND ACCUMULATOR BOTTLES
DIAMETER OF MAIN RAM: 50.75" (1289 MM)
DIAMETER OF PIERCER RAM: 21.25" (540 MM)
MAXIMUM BILLET SIZE AS DESIGNED:
-DIAMETER: 11" (280 MM)
-LENGTH: 31.5" (800 MM)
BILLET SIZE AS MOST RECENTLY USED ON TITANIUM:
-DIAMETER: 8" (203 MM)
-LENGTH: 31.5" (800 MM)
STROKE: 85" (2160 MM)
EQUIPPED WITH TWO 500 HP WATER HYDRAULIC PUMPS

THIS OFFER IS FOR THE EXTRUSION PRESS ONLY AND DOES NOT INCLUDE A BILLET FURNACE
OR ANY DOWNSTREAM EQUIPMENT LIKE SAWS, RUNOUT TABLES OR COOLING BEDS.

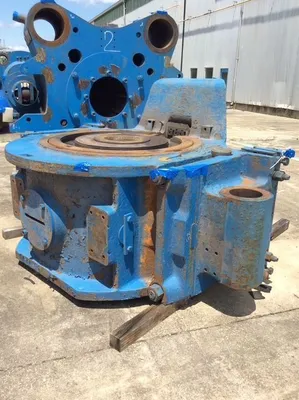

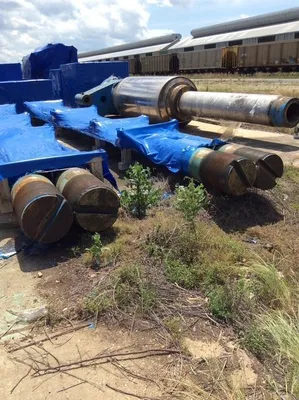

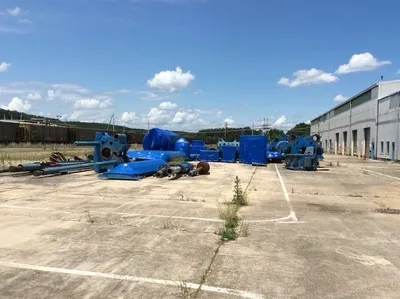

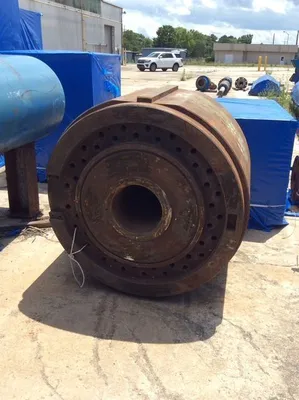

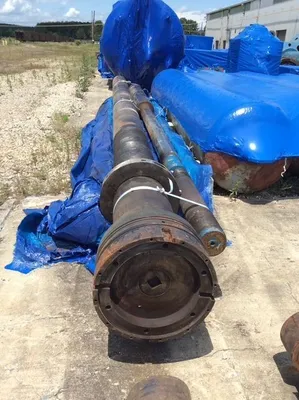

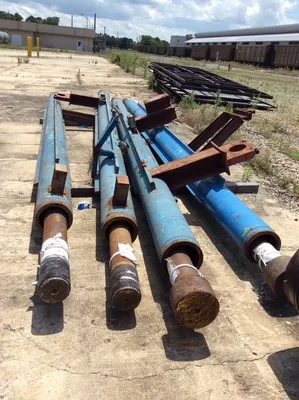

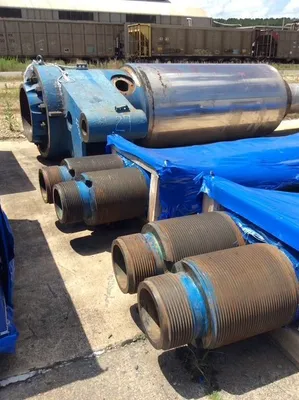

THE PRESS CEASED PRODUCTION APPROXIMATELY TEN YEARS AGO AND HAS BEEN DISMANTLED

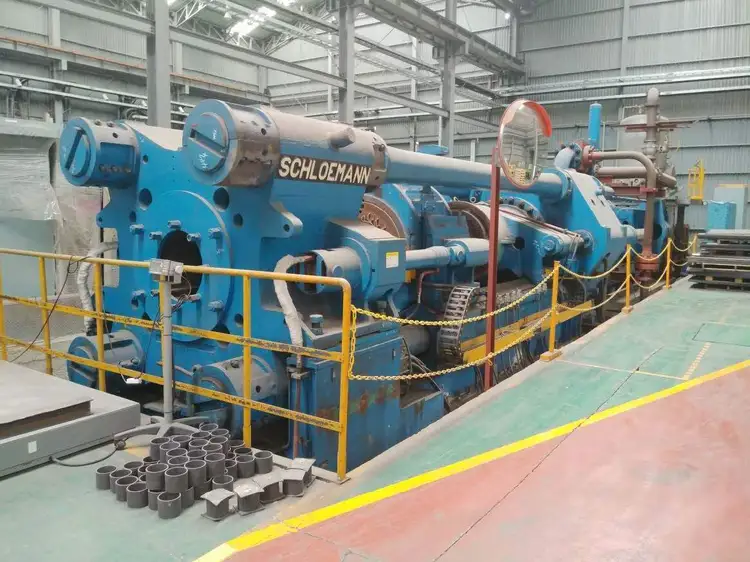

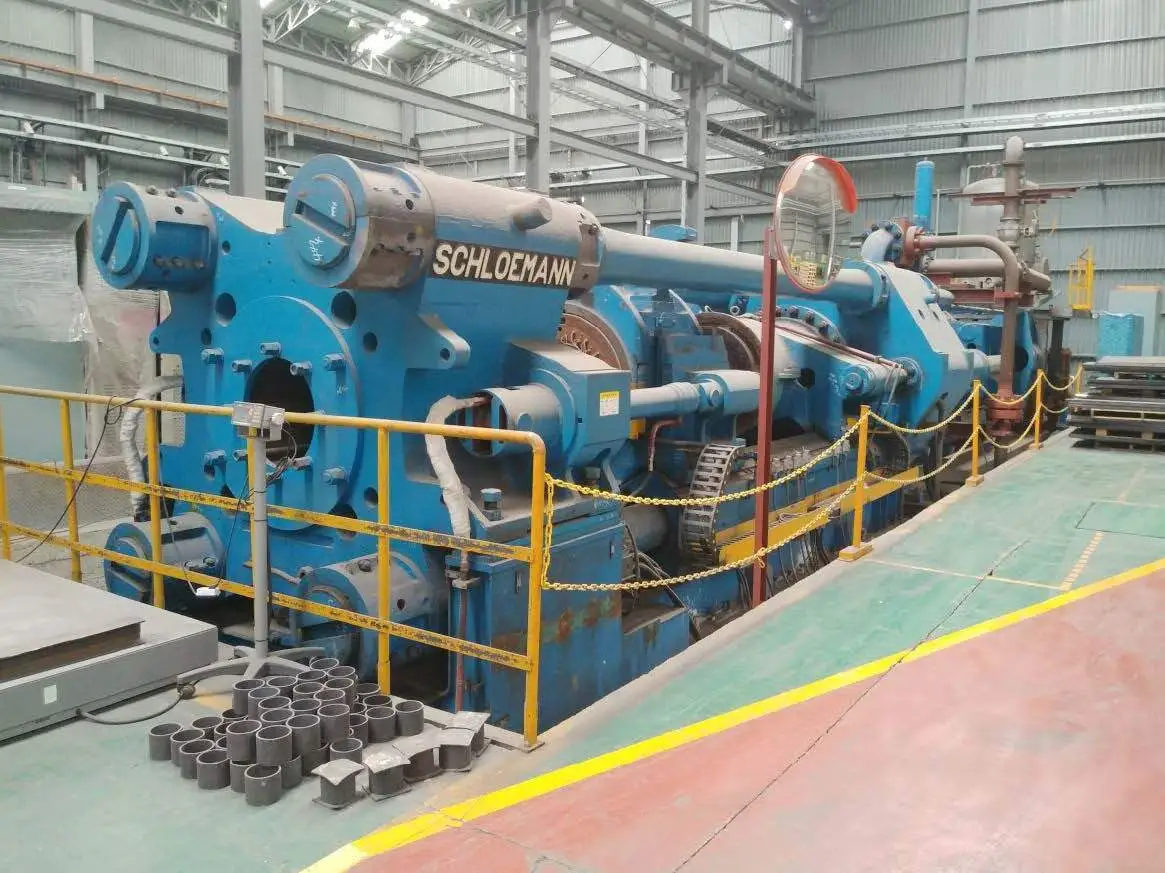

AND PLACED IN STORAGE. SOME PHOTOS SHOW THE MACHINE AS IT WAS ONCE INSTALLED
AND ARE DATED.

SPECIFICATIONS ABOVE ARE APPROXIMATE AND SUBJECT TO BUYER'S VERIFICATION.

PRICE QUOTED IS AS IS WHERE IS AND SUBJECT TO PRIOR SALE.
