RAD-CON BELL ANNEALING FURNACES FOR COPPER (14512)

STOCK # 14512

MANUFACTURER: RAD-CON INC. (USA)
TYPE: BELL ANNEALING FURNACE FOR NON-FERROUS COILS
FUEL: NATURAL GAS WITH ATMOSPHERE
INSIDE DIMENSIONS:
-DIAMETER: 84" (2133 MM)
-HEIGHT: 70" (1778 MM)
YEAR OF MANUFACTURE: 2011
MAXIMUM OPERATING TEMPERATURE: 1550 DEG. F (843 DEG. C)
POWER: 480 VOLT, 30 AMPS, 3 PHASE,60 HZ.
CONTROL POWER: 120 VOLT, 20 AMPS, 1 PHASE, 60 HZ
MAX. INPUT RATING: 2,000,000 BTU/HR
INLET PRESSURE: 2 PSIG
FUEL PRESSURE AT BURNER MANIFOLD: 7.6" W.C.
NO. OF FURNACES: 1
NO. OF RETORTS: 3
GAS MANIFOLD SYSTEMS
RAD-CON VF DRIVES

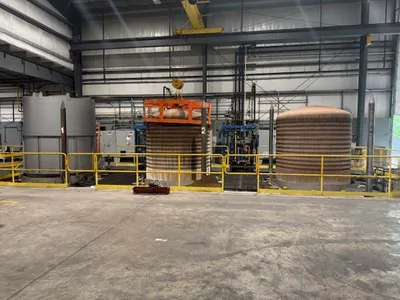

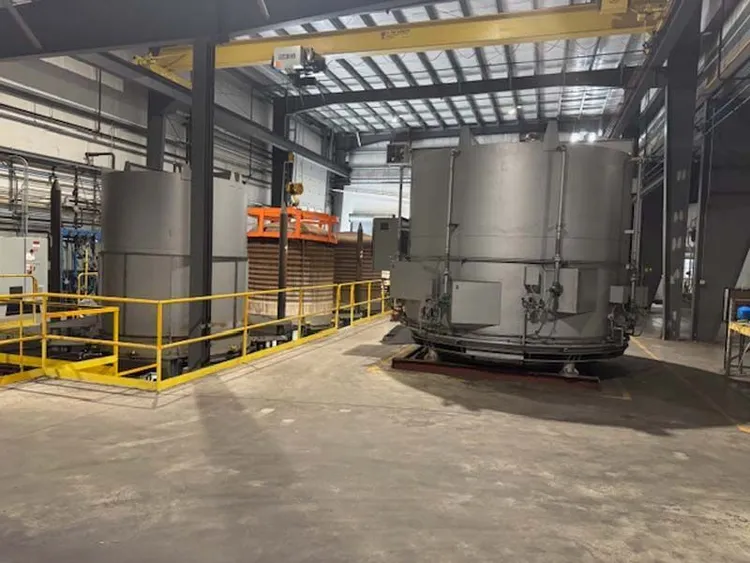

FURNACE IS INSTALLED AND OPERATIONAL

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
