3/8" Vaughn Model 10 DT 10 Die Wire Drawing Machine (14508)

Manufacturer: Vaughn Machinery Co. (USA)
-Now Owned by Morgan Koch GmbH (Germany)
Stock # 14508

Type: Tandemblox Slip Type Wet Drawing Machine for non-ferrous wire

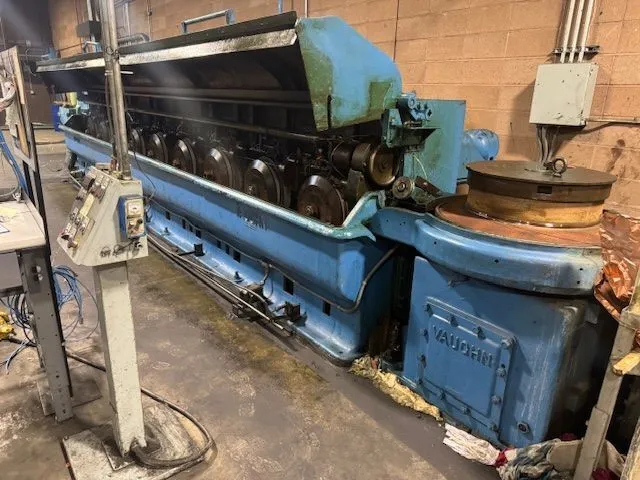

Design: 10 Die Horizontal Tandem Block with Vertical Take-up and Spooler
No. of Dies - 10

Maximum entry Diameter
-Copper 3/8" (9.5mm)
-Alloy Aluminum 3/8" (9.5mm)
-E.C. Aluminum 1/2" (12.7mm)

Drawing Capstans
Type: Horizontal
Diameter: 16" (406mm)
Face Width: 2" (50mm)
Flange Diameter: 18" (457mm)
No. of Horizontal Capstans: 9
Continuous Water Cooling

Drive Motor: 250 HP, 575 Volts, 230 Amps,1785 RPM, 3 PH., 60 HZ WEG Mfg.

Finishing Capstan:
-Type: Vertical
-Diameter: 22" (558mm)
-Face Width: 5" (127mm)
-Base Diameter: 30" (762mm)

Line is equipped with:

Payoff
Entry Soap Lubrication Box
2 Vertical and 2 Horizontal entry guide rolls
10 Die Vaughn Drawblock Assembly with 9 horizontal blocks and Lubrication system
Exit Cleaning Station
- 4 Block Spray Gun System with 3 spray nozzles per block
Dual Dancer System for speed control entering take-up

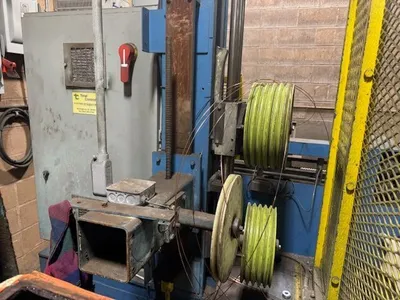

Traversing Take-up Winder
-Double pintle for spools
-Spool Diameter 11" (280mm)
-Spool OD 30" (762mm)
-Spool Flange 5" (127mm)
-Winder Electronics by Total Control Systems (USA)

Line is installed and operational but shut down

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
