110mm x 350mm x 400mm HANKOOK M-TECH 4 HI REVERSING ROLLING MILL (14490)

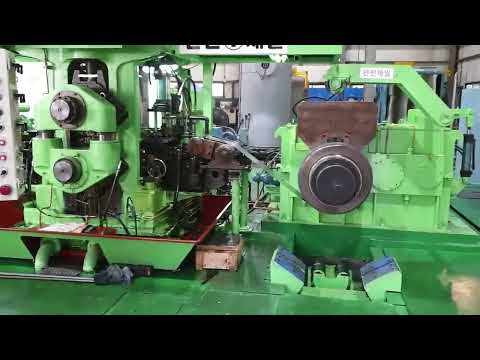

HANKOOK M-TECH 4 HI REVERSING ROLLING MILL
Stock # 14490

General Specifications
MANUFACTURER:........ KOREA M-TECH (MGF DATE : Unknown)
WORK ROLL SIZE:...... 110mm x 400mm (4.33" Diameter x 15.75" Width)
BACKUP ROLL SIZE:.... 350mm x 400mm (13.78" Diameter x 15.75" Width)
MATERIAL:............ STAINLESS STEEL(BA or PICKLED)
WIDTH(mm):........... 100~300mm
THICKNESS(mm):....... T2.0 ~ 0.1mm(Stainless steel)
COIL ID/OD(mm):...... ID 400, 508mm / OD 1,350mm / RECOILER D508mm * 1,350mm
LINE SPEED:.......... 230 MPM
COIL WEIGHT(Kg):..... 3,000 kg
LINE DIRECTION:...... Left - Right
DRIVE:............... Back Up Roll With Reducer
TENSION REEL:........ 3,990 Kg to 399Kg 100% Mechanical tension efficiency
MOTOR MAIN MILL:..... DC300KW – 0~850RPM
TENSION REEL(2 SET):. DC150KW – 500~1,500RPM
PAY OFF REEL:........ DC36KW – 610~1,800RPM
PASS LINE:........... FL +/- 1,060mm
COOLANT OIL:......... Mineral Oil
SCREW DOWN:.......... Motor Drive

LIST OF EQUIPMENT

MILL SECTION:....4 HI REVERSING MILL BODY / MILL GUIDE, MILL ROLL /
MOTOR DRIVE SCREW DOWN MECHANISM / SPINDLE
COUPLING & CARRIER
TENSION REEL SECTION:.. DELIVERY / ENTRY / TENSION REEL /
COIL CAR FOR DELIVERY /ENTRY TENSION
REEL / SKID FOR DELIVERY / ENTRY TENSION REEL /
UP CUT SHEAR WITH ENTRY TABLE

PAYOFF REEL:..........PAY OFF REEL / COIL CAR FOR PAY OFF REEL /
THREE ROLL FEEDER WITH THREADING TABLE
LUBRICATION &
HYDRAULIC SYSTEM:.....GEAR OIL LUBRICATION SYSTEM / HYDRAURIC
SYSTEM FOR OPERATION & BACK BENDING SYSTEM /
ROLL COOLANT SYSTEM
ACCESSORYEQUIPMENT:.. MILL FUME EXHAUST FAN
ROLL PART
WORK ROLL : 26EA

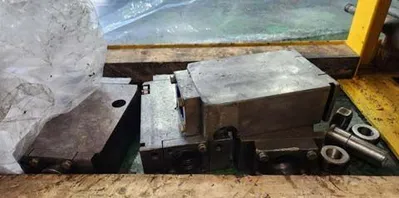

WORK ROLL CHOCK BOX : 2 SET(8 EA) -Including one installed on the stand

ROLL CHANG EDEVICE
BACK UP ROLL JIG :... 1 SET,
WORK ROLL JIG :...... 1 SET

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJET TO BUYERS VERIFICATION**
