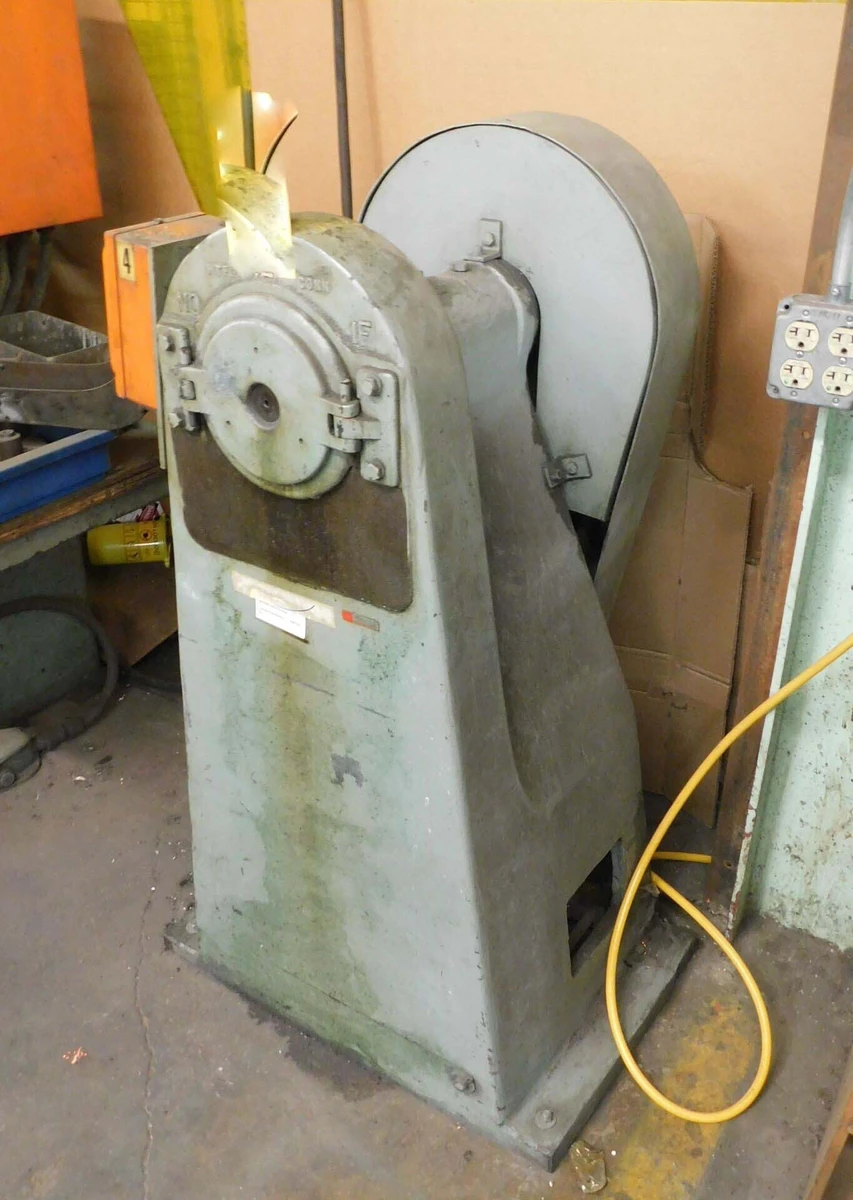

7/16" (12mm) FENN MODEL 1F-2 DIE ROTARY SWAGING MACHINE (14485)

1F Fenn 2 Die Rotary Swaging Machine
Stock # 14485

Manufacturer:......... Fenn Manufacturing
Model:................ 1F
Type Machine:......... 2 Die Rotary Swager
Capacity, Solid:...... 5/32" (3.968mm)
Capacity, Tubing:..... 7/16" (11.1125mm)
Die Width:............ 3/4" (19.05mm)
Die Height:........... 5/8" (15.875mm)
Die Length:........... 1" (25.4mm)
Weight Per Die Set:... .27 lbs
Bore Thru Spindle:.... 1/2" (12.7mm)
Hammer Width:......... 3/4" (19.05mm)
Hammer Height:........ 15/16" (23.8125mm)
Hammer Length:........ 1" (25.4mm)
Hammer Weight per Set: .4 lbs
Spindle Speed: 430 RPM
**Please Note Catalogue Specifications***

Overall Machine Size: 30" L-R x 36" F-B x 45" H x 700 Lbs.

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
