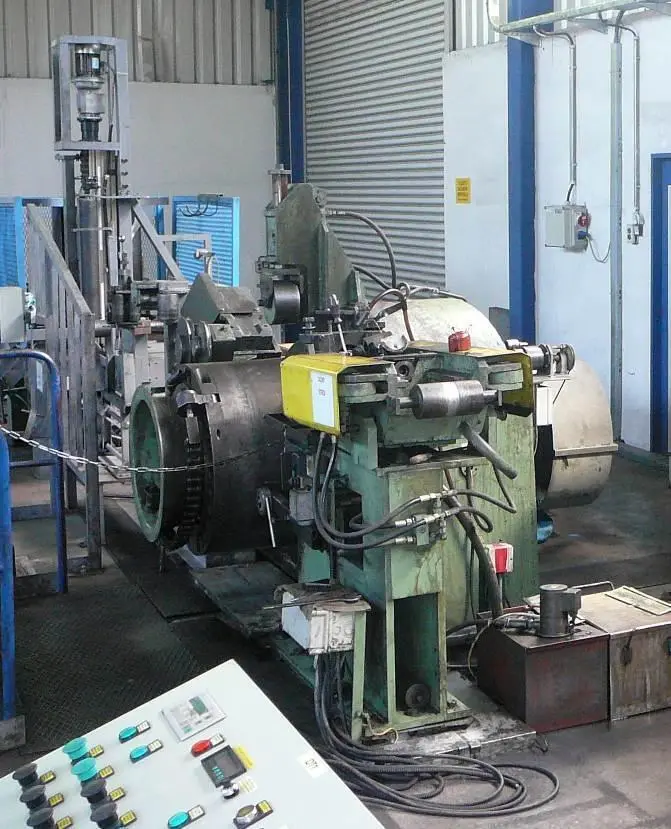

20mm (0.787") WIRE DRAWING BULL BLOCK (14476)

20mm (0.787") WIRE DRAWING BULL BLOCK
Stock # 14476

Year of manufacture 2001
Drum diameter Available Ø 560 and 750 mm. – Interchangeable
Wire range Ø 5- 20 mm.
Drawing force 7 Tons.
Max. reduction 30% with low carbon steel
Speed - From Ø 6 to 12 mm.: 80 mt./min. max.
- From Ø 12 to 20 mm.: 54 mt./min. max.
Capstan main motor 90 kW d.c. with Inverter
Spool diameter Ø580 mm.
Diameter of the spooled coil Min. 600 – Max. 1’000 mm.
Max spooled weight 2’000 Kg.
Spooler main motor 37 kW d.c. with Inverter
Tension 400 V. - 50 Hz.

COMPOSITION OF THE LINE
Pre-straightener
Push pointer with die holder
Capstan
Tiltable re-coiler
Layer winding spooler
Electric equipment
Hydraulic equipment
Drawings and documentation available
Pictures when installed

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
