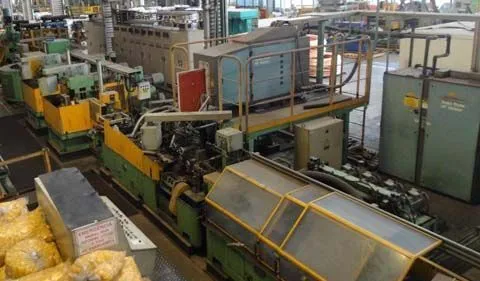

MORI MIU 30 COPPER TUBE MILL FOR WELDED INNER GROOVED TUBES FOR REFRIGERATION AND AIR-CONDITIONING INDUSTRY (14473)
55mm MORI MIU-30 TUBE MILL No 1
Stock 14473
SPECS:
MODEL: MIU-30 TYPE TUBE MILL
MANUFACTURER: MORI MACHINERY CORPORATION
CONSTRUCTION YEAR: 1999
ALLOY: COPPER STRIP UNS C12200
FINAL MATERIAL: WELDED INNER GROOVED COPPER TUBES FOR
REFRIGERATION AND AIR-CONDITIONED INDUSTRY
TYPE OF WELDER: HF - HIGH FREQUENCY
The machine is assembled but is not running since 2013.
Some electrical parts are missing according to the attached list
MAIN MATERIAL SPECIFICATION:
WIDTH OF ENTRANCE STRIP: 20 - 55 MM
STRIP THICKNESS: 0.30 - 0.80 MM
STRAIGHTNESS OF THE ENTRANCE STRIP: 1/1000 MM
STRIP WIDTH TOLERANCE: 0.04 MM
STRIP THICKNESS TOLERANCE: 0.01 MM
ID FOR UNCOLIER: 450 MM
OD FOR UNCOILER: <= 1500 MM
WEIGHT FOR UNCOILER: <= 450 KG
FINAL DIMENSION OF TUBES(DIAMETER): 6.35 MM ~ 15.87 MM.
TUBES TOLERANCE: 0.04 MM
WORKING SPEED: MAX. 200 M/MIN. 2
COMPONENT LIST INCLUDES:
UNCOILER
SHEAR & WELDER AND DANCER ROLL
HORIZONTAL ACCUMULATOR
EMBOSSING STAND
FORMING SECTION
WELDER
SIZING SECTION
ROTARY PRESS CUTOFF
TUBE WINDER TURNTABLE
WATER AND EMULSION TANK
CONTROL AND ELECTRICAL PANELS
BASIC LAYOUT
Missing electrical parts
QTY Description Tag Installation
1 Drive Mitsubishi SEV3 EMBOSS UP/DOWN WS
1 Drive Mitsubishi SEV4 EMBOSS UP/DOWN DS
2 Rectifier Bridge 200A Drives Supply
1 Drive Sumitomo INV1 Uncoiler
1 Drive Sumitomo INV4 Exit Pinch Roll
1 Drive Sumitomo INV7 Emboss Top Roll #2
1 Drive Sumitomo INV8 Emboss Bottom Roll #2
1 Drive Sumitomo INV12 Sizing #3
1 Drive Sumitiomo INV14 Sizing #5
1 HMI OPV1 Interface w/Sumitomo PLC
3 Power Supply Omega Welding Power Module
15AV / 2AV
1 Welding Power Module Negative Power Module
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
