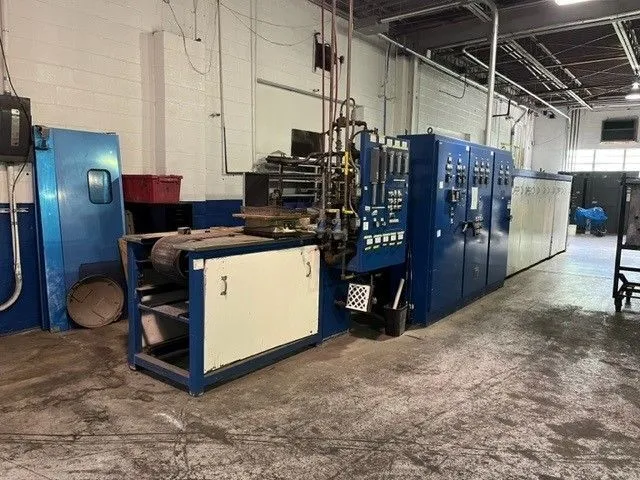

ABBOTT MESH BELT FURNACE 8ZSCR-12-216HH5-86PC/H3-2100, 174 KW, Stock # 14466

ABBOTT FURNACE MESH BELT
STOCK # 14466

TYPE: BELT TYPE ANNEALING
MODEL: 8ZSCR-12-216HH5-86PC/H3-2100
SERIAL#: AB383-13352-IMI-0600
POWER: 174 KW
PHASE: 3
VOLTACE: 480
HERTZ: 60
MANUFACTURER: ABBOTT

TYPE: ATMOSPHERE BELT FURNACE

SIZE I.D.: 12”WIDE X 216”(18’)LONG X 4”HIGH

OVERALL LENGTH: 44’LONG

MODEL: 8ZSCR-12-216HH5-86PC/H3-2100

SERIAL NUMBER: AB383-13352-IMI-0600

MAXIMUM TEMP.: 2100 F

ELECTRICS: 480 VOLTS, 174 KW, 3 PHASE

CONTROLS: HONEYWELL DIGITAL CONTROLS FOR (8) ZONES OF CONTROL.
MOUNTED IN ENCLOSED PANEL.

GENERAL: 12"WIDE ATMOSPHERE BELT FURNACE WITH ALLOY RETORT
CURRENTLY USING A 10"WIDE BELT. PARTS ARE LOADED ON
THE VARIABLE SPEED MESH BELT AT 6'LONG ENTRANCE TABLE,
PASS THROUGH 3' ENTRANCE PURGE, 18' HEAT CHAMBER,
7' HEATED CONTROLLED COOLING, 4' WATER COOLING,
3' EXIT PURGE AND UNLOADED AT 5' EXIT TABLE. DIVIDED
INTO (8) ZONES OF CONTROL EQUIPPED WITH FLO SCOPES
FOR HYDROGEN & NITROGEN. NEW 2000.

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
