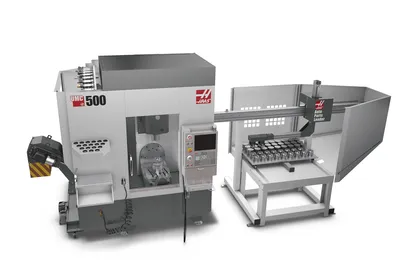

2022 HAAS AUTOMATIC PARTS LOADER FOR UMC-500 AND UMC-500SS UNIV. MACHINING CENTERS Stock # 14436

MANUFACTURER: HAAS UMC (USA)

TYPE: AUTOMATIC PARTS LOADER FOR UNIVERSAL MACHINING CENTER
APPLICATION: FOR USE ON HAAS MODEL 500 AND 500SS UNIVERSAL MACHINING CENTERS
YEAR OF MANUFACTURE: 2022
NOTE: MACHINE IS NEW. ONLY RUN A FEW TIMES.
PLUG AND PLAY DIRECTLY WITH HAAS CONTROLS ON MODELS 500 AND 500SS
INCLUDES SAFETY LIGHT CURTAIN
APL IS PROGRAMMED DIRECTLY THROUGH HAAS CONTROL INTERFACE
RETURNS FINISHED PARTS TO THE STORAGE TABLE WHILE RETRIEVING RAW STOCK
-WHILE PARTS ARE BEING MACHINED

SPECIFICATIONS:
AXIS TRAVELS (AU, AV, AW): 115" X 28" X 11"
RAPIDS (AU): 2126 IN/MIN (54 M/MIN)
RAPIDS (AV): 118 IN/MIN (3 M/MIN)
RAPIDS (AW): 1417 IN/MIN (36 M/MIN)
MAX. PART L X W: 6" X 6" (152MM X 152MM)
MAX. PART WEIGHT PER GRIPPER: 10 LB. (4.5 KG)
TABLE SIZE L X W: 48" X 28" (1219 X 711 MM
TABLE LOAD CAPACITY: 1000BS (454 KG)
SHIPPING WEIGHT: 2241 LBS (1017 KG)

ALL SPECIFICATIONS MUST BE VERIFIED BY PURCHASER
