23,000 x 60" x .135" RED BUD CUT TO LENGTH LINE Stock Number: 14431

23,000 LB RED BUD CUT TO LENGTH LINE
STOCK # 14431

CAPACITY: 0.020"-0.135" MILD STEEL
LINE DIRECTION: LEFT TO RIGHT
LINE CONSISTS OF:

ENTRY COIL CAR:
23,000 LB CAPACITY
MODEL: CC 30
SERIAL #: CCB85-MOO55
36" LONG "V" CRADLE
APPROXIMATE DIMENSIONS: 42" L x 36" W x 36" H

UNCOILER:
23,000 LB CAPACITY
MODEL: RM60-24
SERIAL #: SRB85-M0055
62" FACE MANDREL
20"-24" ID CAPACITY OF COIL
HYDRAULIC WEDGE TYPE EXPANSION
HYDRAULIC THREADING DRIVE
AIR CYLINDER OPERATED DISC BRAKE
POWERED HOLD DOWN ARM
APPROXIMATE DIMENSIONS: 146" L x 77" W x 105" H

PEELER TABLE:
ATTACHED TO STRAIGHTENER

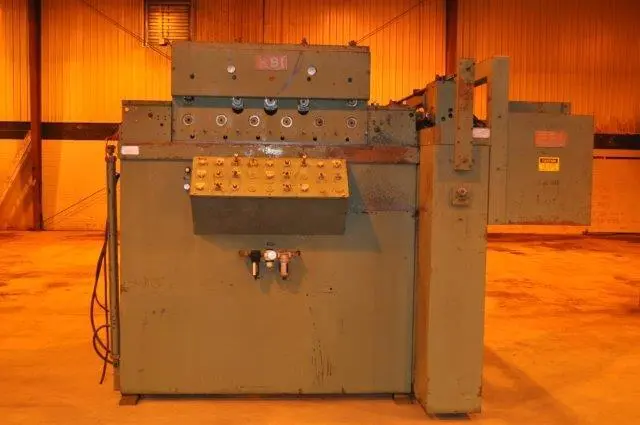

STRAIGHTENER / EDGE TRIMMER UNIT:
60" x 0.135" CAPACITY
MODEL: SM560
SERIAL #: SSB85-M0055
ENTRY DRIVEN PINCH ROLLS
7 WORK ROLLS, 3 OVER 4
5" DIAMETER ROLLS
EXIT DRIVEN PINCH ROLLS
HYDRAULIC DRIVE
DOUBLE STUB EDGE TRIMMER
MODEL: ET 10-60
POWERED WIDTH ADJUSTMENT
DUAL SCRAP CHOPPERS
COMMON DRIVE WITH STRAIGHTENER
APPROXIMATE DIMENSIONS: 109" L x 105" W x 90" H

GRIP FEEDER:
60" x 0.135" CAPACITY
MODEL: FMP 9HD-60-72
72" STROKE LENGTH MAXIMUM
CYLINDER TYPE DECELERATION
CAM FOLLOWER MATERIAL GUIDES
HYDRAULIC GRIPPER
APPROXIMATE DIMENSIONS: 152" L x 102" W x 52" H

SHEAR:
60" x 0.135" CAPACITY
MODEL: G18L-60
SERIAL #: SHB85-M0055
HYDRAULIC ACTUATED
APPROXIMATE DIMENSIONS: 84" L x 27" W x 83" H

MAIN HYDRAULIC POWER UNIT:
50 HP AC MOTOR
230/460 V
APPROXIMATE DIMENSIONS: 60" L x 52" W x 81" H
**DISMANTLED AND IN STORAGE**

**Temporary Specifications Are Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
