DAHLSTROM 60″ x .135″ x 20,000Lb CUT TO LENGTH LINE (14428)

60" x 0.135" x 20,000 lb DAHLSTROM CTL
Stock # 14428

Coil Width: 12" - 60"
Material Thickness: .015" - .135"
Weight Capacity: 20,000Lb
Coil ID: 20" - 24"
Coil OD: 72"
Speed: 180 feet per minute
Direction: Left to Right

Entry Coil Car
Floor Standing V-Type Design
Mechanical Lift and Traverse

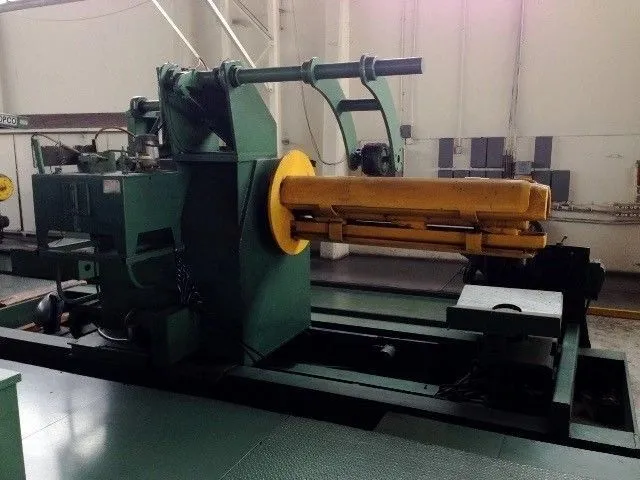

Mandrel Uncoiler
Make: American Steel
3-Leaf Mandrel Design
Powered Mandrel Expansion
Motorized Hold-Down Roll
AC Feed-Up Drive
Hydraulic Peeling Table

Coil Straightener
Number of Work Rolls: 9
Work Roll Diameter: 4"
Driven Entry Pinch Rolls
Motor: 40HP Drive

Adjustable Hump Table
Powered Conveyor Rolls

Mechanical Shear
Make: Secrest Machinery
Model: S40760
Air Clutch & Brake
Motor: 10HP AC
Powered Belt Conveyor

Drop Type Stacker
Air Gates and Landing Table
Two (2) Sections of Gravity Rolls

Complete CTL Line with Electrics, Hydraulics, Controls, Presently Installed

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
