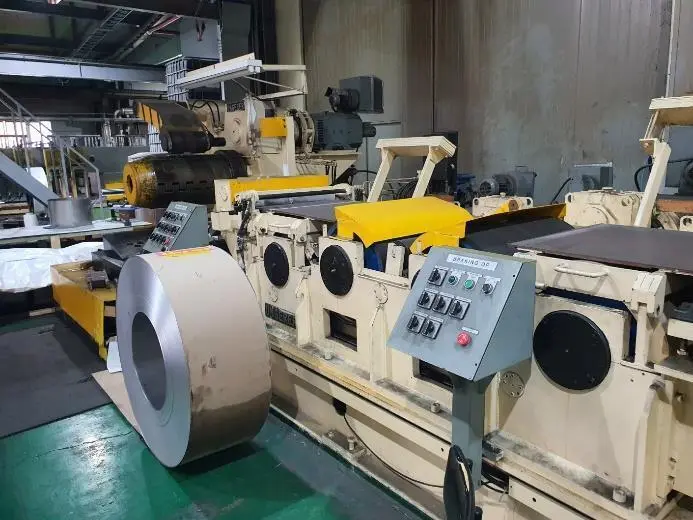

700mm Ungerer Tension Leveler
Stock # 14400
Maker UNGERER
Built 1984
Reinstalled 2013
Last modification 2013 All Electric controller
by New, Korean Brand
Line speed Max 150m/min, 120 m/min average
product speed
Material width Max 550mm,Normal 450mm width actual
product for soft stainless steel
Gauge range Max: 0.7mm, Min 0,07mm [Average
actual product : 0,6 – 0,1mm]
Entry coil ID 508Ømm
Exit coil ID 508Ømm
Exit coil OD 1,350Ømm
Forward tension 130,000psi
[Product tension: 0,3-0,4 %]
Max coil weight 5,500KG
UNGERER Leveller
Stretch Work Roller 20,32Ømm x 760mmLong x 23 roller
Intermediate roller 15,24Ømm
Backup roller 20, 32Ømm x 27Wmm x 11 roll
x 2 strand x 14 block
Tension Bridle roller 500Ømm x 700Wmm
Gauge control VOLLMER Point contact
Power motor Reliance drive motor,
Parker DC drive pack
Uncoiler DC 15kw
Back ward Tension Bridle #1 DC14kw, #2 DC7kw,
#3 DC56kw, #4 DC28kw/1490RPM
Forward Tension Bridle #1 DC32kw, #2 DC16kw, #3 DC130kw,
#4 DC65kw/1490RPM
Recoiler DC20kw
Line direction Left to Right
Line area 6,000mm X 13,000mm
Electric power source AC440volts x 3Phase x 60Hz
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
