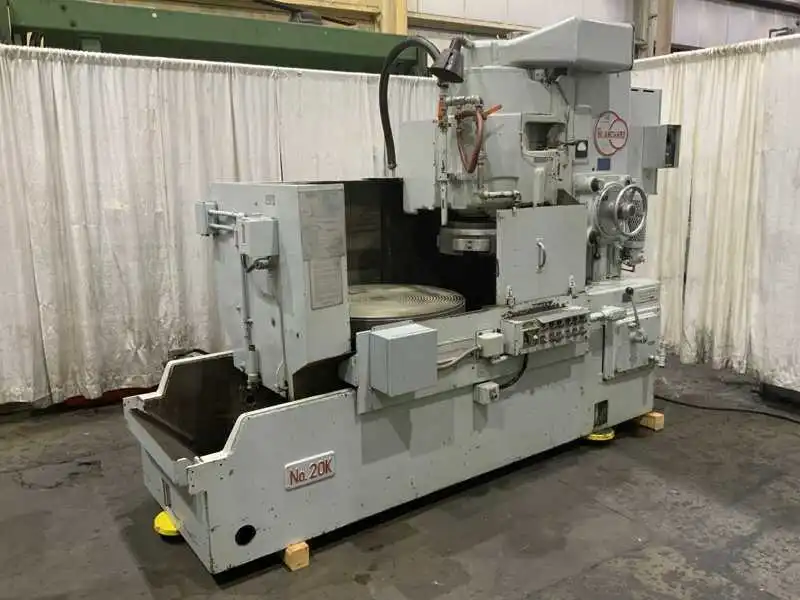

For sale: 36" Blanchard Model #20K Rotary Surface Grinder, Stock #14377. Used grinder with 36" magnetic chuck, 42" max swing, and 30 hp spindle motor. Features include automatic down feed, power head elevation, table travel, and coolant system. Manufactured in 1976.
36" BLANCHARD MODEL #20K ROTARY SURFACE GRINDER
STOCK # 14377
SERIAL ....111019
MODEL ........ 20K
NEW IN ................................. 1976
DIAMETER OF MAGNETIC CHUCK ............. 36"
MAXIMUM SWING INSIDE WATER GUARDS ...... 42"
DIAMETER OF SEGMENTED WHEEL ............ 20"
TABLE SPEEDS ........................... (6) 6,9,12,18,25 & 33 RPM
MAXIMUM UNDER WHEEL .................... 12"
AUTOMATIC DOWN FEED .................... .004 TO .080 IPM
POWER HEAD ELEVATION ................... YES
POWER TABLE TRAVEL ..................... YES
WHEEL DRESSER .......................... YES
HARDEN WAYS ............................ YES
TRABON LUBE SYSTEM ..................... YES
COOLANT SYSTEM ......................... YES
NUTRIFIER & RECTIFIER CHUCK ............ VARIABLE HOLD
SPINDLE MOTOR .......................... 30 HORSEPOWER
ROTATION MOTOR ......................... 2 HORSEPOWER
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
