ALUMINUM WIRE ROD PRODUCTION LINE WITH CONTINUOUS CASTING AND ROLLING (14352)
Used Aluminum Wire Rod Production Line
Stock # 14352
1. Overall
1) Product EC-Grade AL Rod and AL Alloy Rod
2) Capacity 2.5ton/hr
3) Product Diameter Ø9.5
4) Caster Wheel Diameter Ф1400 mm
5) Rolling Mill 15 stand (13 stands)
6) Coiler (Orbital Coiler) Coil Dia Ф2100xØ1000x1500 3.5 ton
Equipment Description

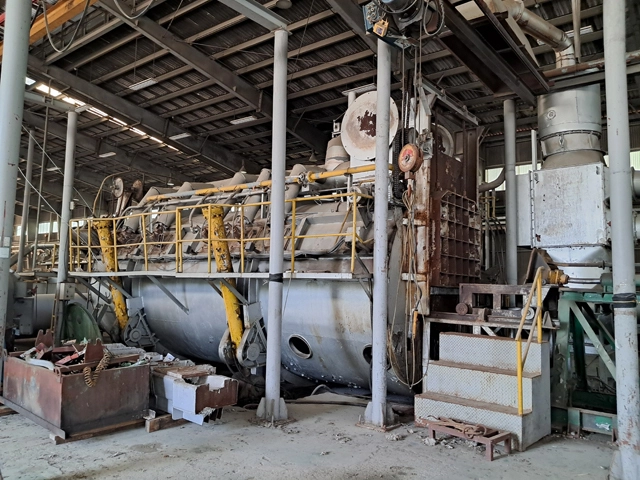

1) Melting Furnace
1-1 Furnace
Type Tilting type Melting Furnace
Capacity 10,000 kg
Fuel LNG
Burner Gas Burner
Others Incl. Fan
Incl. hydraulic tilting device
2) Waterway & Filter Box
2-1 Waterway
Type Structure Channel Type
Outside steel + inside anchor+refractory
Gravity Flow
Full Set as installed
2-2 Filter Box
Type Hoizontal type 1 set
12" filter installed
3) Caster
3-1 Caster
Type Continus Casting
Wheel Dia 1400mm diameter
Cast Bar size 1181mm sqaure
Wheel material Cu + Zr
Others Tundish
aux devices
4) Bar Cutter
Type Hydraulic Cutter
AC motor driven
5) Rolling Mill 5-1 China
Type Continuous Rolling Mill
15 stand (13 stand)
DC motor 250kw (440V)
5-2 Properzi continuous rolling mill
13 stand
DC motor 162kw (440V)
6) Coiler
6-1 Orbital Coiler
Qty 1set
Winding AC motor driven
Coil Size Ф2100 x Ø1000 x 1500
Lifting Deck AC motor
Weight 3.5ton
7) Others
7-1 Dust Collecor (incl. Fan) : 1 set
7-2 Weighing Scale
7-3 Water Pump 4 sets / Cooling water / Casting
7-4 LNG inlet/control unit
7-5 Gear Oil Supply / Rolling mill
7-6 Rolling mill oil heat exchange
7-7 Rolling mill oil exhaust gas ventilation
7-8 Dust Collecting duct and hood / melting furnace
7-9 Electric Panels (cable and trays incl.)
7-10 Water Supplies
7-11 Documents (drawings, manual etc)
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
