Butech 72" x 0.500" Leveler (14347) used equipment. Max width: 72", max thickness: 0.5". Features (2) 250 HP DC Motors, 11 roll heavy gauge leveler, and many spare parts. Line speed up to 400 FPM. Manufactured in 2002. Material: HR, HRHS, HRPO.

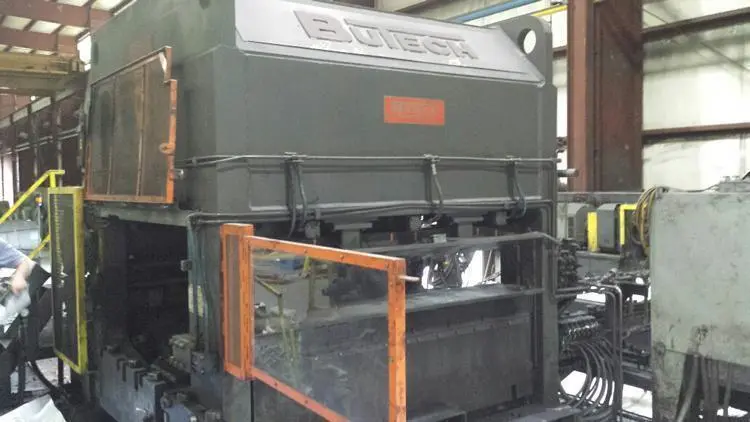

72" X .500" BUTECH LEVELER
Stock # 14347
General Specifications:
Manufacturer: Butech
Year of Manufacture: 2002
Material: HR, HRHS, HRPO
Yield Strength: 85,000 PSI max.
Strip Thickness: .500" maximum, .125" minimum
Strip Width: 72" max., 24" min.
Line Speed: 0 to 326 or 400 FPM max. as determined with customer
Line Direction: Left to Right
Guide Reference: Centerline
(2) 250 HP DC Motors
(11) Roll Heavy Gage Leveler Specifications:
Pinch Roll Size: 10" (254 mm) dia. x 80" (2030 mm) face
Work Roll Quantity: 11, 5 up, 6 down
Work Roll Size: 5.500" (140 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: .500" maximum, .125" minimum
Many spare parts including work rolls and back up rolls
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
