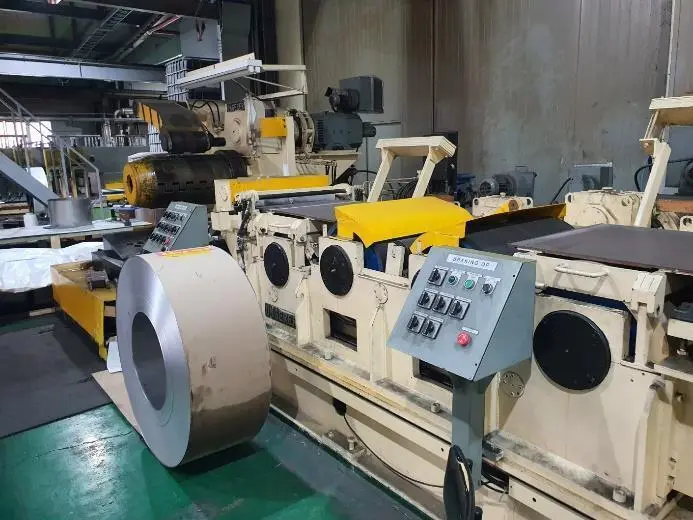

UNGERER 550mm (22") STRETCH/TENSION LEVELING LINE (14337)

550mm UNGERER STRETCH/TENSION LEVELER
Stock # 14337

Materials : Stainless steel Copper ,Copper alloy and mild steel
Maker: Ungerer
Built : 1984
Revamped:2013
Last modification :2013 All electricals were replaced with new ones Korean brand
Line speed : Max 150m/min, 120 m/min average product speed
Material width : Max 550mm,Normal 450mm width actual product for soft stainless steel
Gauge range : Max: 0.7mm, Min 0,07mm [ Average actual product: 0,6 0,1 mm]
Entry coil ID : 508Φmm
Exit coil ID: 508Φmm
Exit coil OD :1350Φmm
Forward tension: 130,000psi [Product tension: 0,3-0,4 %]
Max coil weight : 5 500KG
UNGERER Leveller
Stretch Work Roller : 20320 mm x 760mmLong x 23 roller
Intermediate roller : 15240 mm
Back up roller : 20,32 0mmx27Wmmx11 rollx2strand x 14 block
Tension Bridle roller Gauge control : 5000 mm x 700Wmm
Gauge control :VOLLMER Point contact
Power motor : Reliance drive motor, Parker DC drive pack
Uncoiler : DC15kw
Back ward Tension Bridle: #1 DC14kwz #2 DC7kwz #3 DC56kwz #4 DC28kw/1490RPM
Forward Tension Bridle Recoiler : #1 DC32kw, #2 DC16kw, #3 DC130kwz #4 DC65kw/1490RPM
Recoiler : DC20kw
Line direction : Left to Right
Line area : 6,000mm X13,000mm
Electric power source : AC440volts x 3Phase x 60Hz
And some some spare parts : List of spare parts will be advised upon request
Currently on foundation with power off

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
