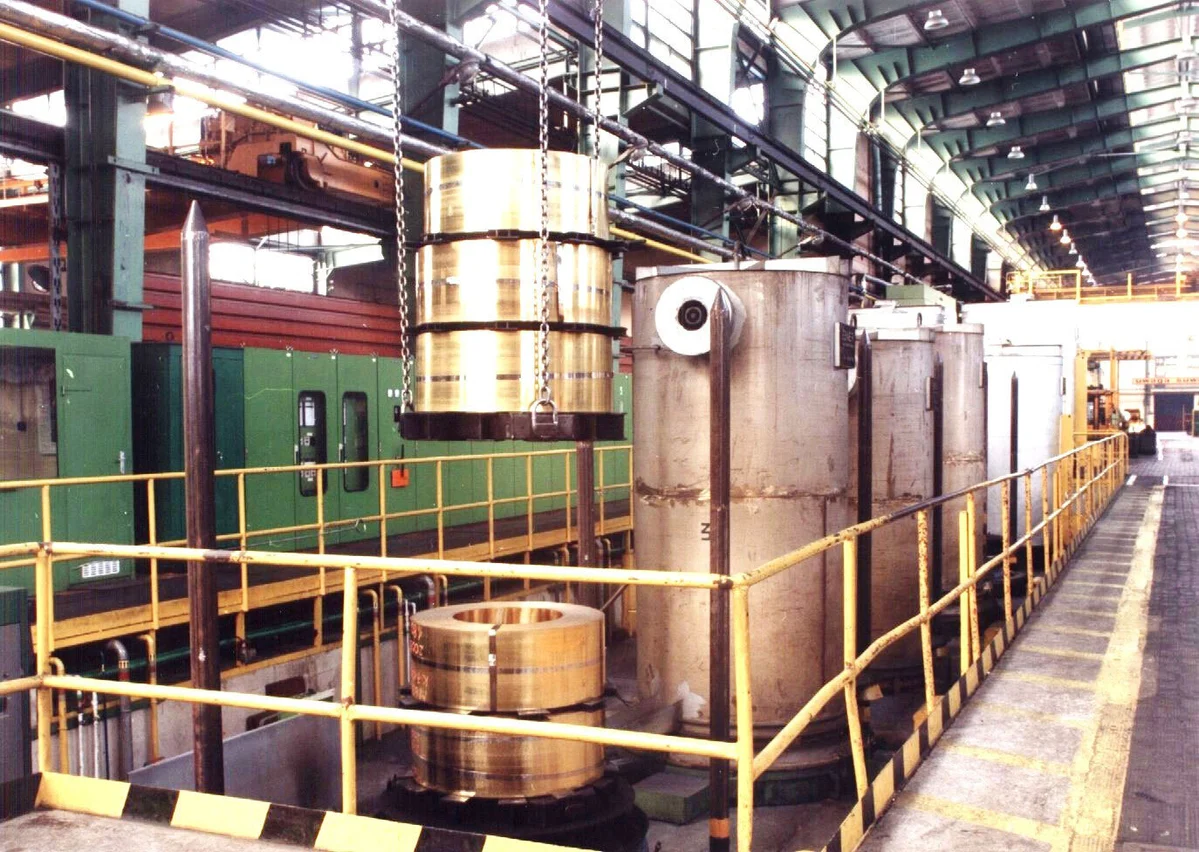

EBNER ANNEALING BELL FURNACE SET UP
Stock # 14331
1.1. Characteristics and technical data
1.1.1. Composition of the furnace assembly
electrical switchboard 1 pc.
heating caps 3 pcs.
furnace core 6 pcs.
service station 6 pcs.
protective caps 6 pcs.
heating cylinders 4 pcs.
cooling caps 3 pcs.
vacuum pump 1 pc.
1.1.2. Technical data
1.1.2.1. General
power consumption 1000 kWh
connected voltage 380 V +/-5%; 50 Hz
control voltage 220 V +/-5%; 50Hz
filtered water consumption 4.5 m3/h
industrial cooling water consumption 36 m3/h
protective gas 1.5% or 25% H2, the rest N2
safe gas 1.5% H2, the rest N2
1.1.2.2. Heating hood
maximum operating temperature 850°C
hubcap weight 4.9 t
1.1.2.3. Protective cap
cap diameter 1,600 mm
cap height 2,500 mm
empty volume 4.2 m3
maximum temperature under the hood 750°C
maximum permissible overpressure under
cap at a maximum operating temperature of 100 mbar
maximum permissible vacuum pressure
at an ambient temperature of 1 mbar (vacuum)
vacuum creation time 8 min
time of filling the furnace with gas 6 min (empty furnace)
1.1.2.4. Furnace core with fan
maximum load 12 tons (at temperature 700°C)
fan speed 750 / 1,500 rpm.
1.1.2.5. Cooling hood with fan and water shower
pumping volume 12,000 m3/h
engine power 0.75 kW
revolutions 1,500 rpm.
amount of cooling water 8 m3/h
1.1.2.6. Vacuum pump
nominal suction capacity 250 m3/h
maximum vacuum 0.5 mbar
engine power 5.5 kW
engine speed 1,500 rpm. / min.
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
