For sale: Custom Heavy-Duty 4-HI Rolling Mill (#14313) for steel plate production. Robust design, used condition. Ideal for industrial metalworking.

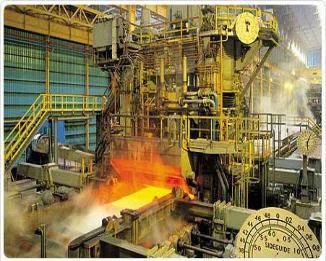

2,000,000 TPY, 4100mm wide hot plate mill ( Rolling mill)
Stock # 14313
1. General specification
Product capacity-2million tons/year
Production specifications-Thickness 5~180mm x Length Max.25m
Installation-1997 (Operating period-1997~2017)
2. Equipment specifications
2-1. Roughing Mill (Davy-England)
Type-4High Reversing Mill
Pressing force-Max. 9,000ton
Work Roll size-1,120Ø x 4,300mm
Back up Roll size-2,150Ø x 4,300mm
Motor capacity-AC8,000kw (Inverter) x 2sets * TIMAC (Japan)
Revolution 45~110rpm
Material-Steel slab-Thickness(130~300mm), Width (1,200~2,200mm),
Length (2,350~4,100mm)
Weight-App.3,500tons (including surrounding facilities)
2-2. Finishing Mill (Davy-England)
Type-4High Reversing Mill
Pressing force-Max. 9,000ton
Work Roll size-1,120Ø x 4,300mm
Back up Roll size-2,150Ø x 4,300mm
Motor capacity-AC8,000kw (Inverter) x 2 sets. *TIMAC (Japan)
Revolution 45~110rpm
Product (Plate)-Thickness(5~180mm), Thickness (1,200~4,100mm), Length (Max.25m)
Weight-4,800tons (including surrounding facilities)
2-3. Hot leveler (Taechang-Korea)
Type-4 high Reversing Leveler
Leveling thickness-Max. 100mm
Work roll-280Ø x 4,350mm (Top-4ea, Bottom-5ea.)
Back up roll-295Ø x 200mm (Top-60ea, Bottom-75ea) *. Hardness-HS51~54
Leveling capacity-Max. T50 x W4,200
2-4. Roll Shop
RM-Work roll-10ea, Back up roll-2ea, Work roll chock-32ea
FM-Work roll-31ea, Back up roll-7ea, Work roll chock-10ea
RM/FM-Back up roll chock-15ea
Roll grander-1set
All related tools
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
