48" x .135" x 30,000# Stamco/Herr Voss Slitting Line with 2 Slitter Heads (14300)

48" x .135" x 30,000# Stamco/Herr Voss Slitting Line with 2 Slitter Heads
Stock # 14300
General Specifications:

Line Direction: Right to Left

Max Coil Weight: 30,000#
Speed Range: 800fpm Max
Thickness Range: .015”-.135”
Min Slit Mult Width: 1”
Entry Coil ID: 16” with Leaves for 20”-24”
Exit Coil ID: 16" & 20" Diameter Drums
Coil OD: 72”

Material Characteristics:

Material: Cold Rolled, Hot Rolled Pickled and
Oiled Steel , Coated Steel, Aluminum Brass and Copper
80,000 Max PSI
30,000 Min PSI

Complete Line with the Following Components:

2 Coil Storage Platform
2 Coil Storage Platform with Floor Type V Deck Coil Car

Stamco Mandrel Uncoiler
Machine#4140, Serial# 307.74.9A
4 Leaf Mandrel Design
Hydraulic Expansion
Sliding Base
75HP DC Motor Drive

Free Standing Powered Hold Down Roll
Machine# 4140, Serial# 307.74.10A

Peeler Table

Polyurethane Covered Pass Line Rolls

Entry Non Powered Pinch Rolls

3 Roll Coil Set Deflector Rolls
Machine# 4140, Serial#307.74.12A
55” Roll Face
162HP AC Motor Drive

Powered Pinch Rolls
3HP AC Motor Drive

(2) Stamco Slitting Heads
53 ½” Arbor Face
7 ½” Arbor Diameter
Crane Removal Design
150HP Baldor DC Motor Drive
Nutall Gearbox 7.814 to 1 Ratio

Dual Scrap Choppers with Dual 20HP Reliance DC Motor Drives

Scrap Conveyor

Powered Pinch Rolls
3HP Drive

Cascade Rolls
Pit Cross Over Table
Over Arm Separator Shaft
Synchrowind Combination (Roll Type-Pad Type) Tension Stand
60” Width
100HP DC Reliance Motor Drive
2 speed Horsburg&Scott Reduction Gearbox
-23.67 to 1
-11.49 to 1

Exit Pass Line Rolls

Herr Voss Exit Crop Shear (Downcut Design)
Thickness Range: .015 to .135” Aluminum
Max Shear Strength: 50,000psi

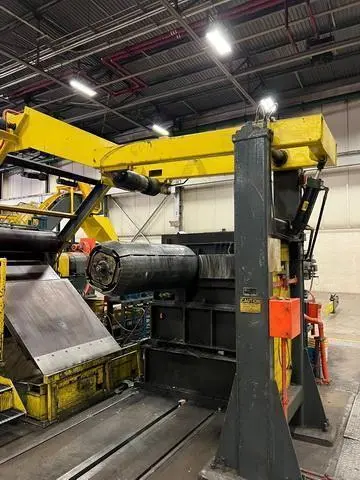

Herr Voss Free Standing Over Arm Separator with Pass Line Roll
Serial# 100063-1C
Coil OD Max 50”
Coil ID Min 20”
Speed: 800fpm
Stamco Recoiler
20” ID
72” OD
54” Drum Face
Full Hydraulic Drum
Hydraulic Push Off
150HP DC Reliance Motor, 500-2000rpm
2 Speed Gearbox (10.37 to 1 and 20.32 to 1)
Spare 16” ID x 54” Drum Face Drum

Herr Voss L-Type Exit Coil Car
Serial# 10436-01A
Plastic Coil Keepers
60,000lbs Max Coil Weight

Herr Voss Free standing Coil Keeper/Hold Down Roll
Serial# 100063-006
50” Max Width
72” Coil OD
40,000lbs Max Coil Weight

Allen Bradley 1395 Drives
Allen Bradley PLC

Complete Line with Shimlesss Tooling, Knives,
Metal Spacers, Hydraulics, Electrics, Controls, Manuals and Drawings
