48" (1219mm) x 7" (177.8mm) WEAN / CAUFFIEL SLITTING LINE (14293)

48" x 7.00" x 25,000# Wean / Cauffiel Slitting Line
STOCK # 14293

-Width: 48" (12019mm) Wide
-Gauge: 0.020" - 0.187" (0.5mm - 4.8mm)
-Maximum Coil: 25,000# (12 tons)
-Line Direction: Left to Right

Consisting of:

-Entry Coil Car:
L Type,
41" Wide Deck
Self-Contained Hydraulics

-Uncoiler: Wean
Hydraulic Expansion
(4) Segment Mandrel
16" - 20" I.D. w/Pads for 24"
AC Motor Threading Drive w/Air Clutch
Brake
Sliding Base

-Holddown Roll Unit:
Rubber Covered Roll, Hyd. Motor Driven

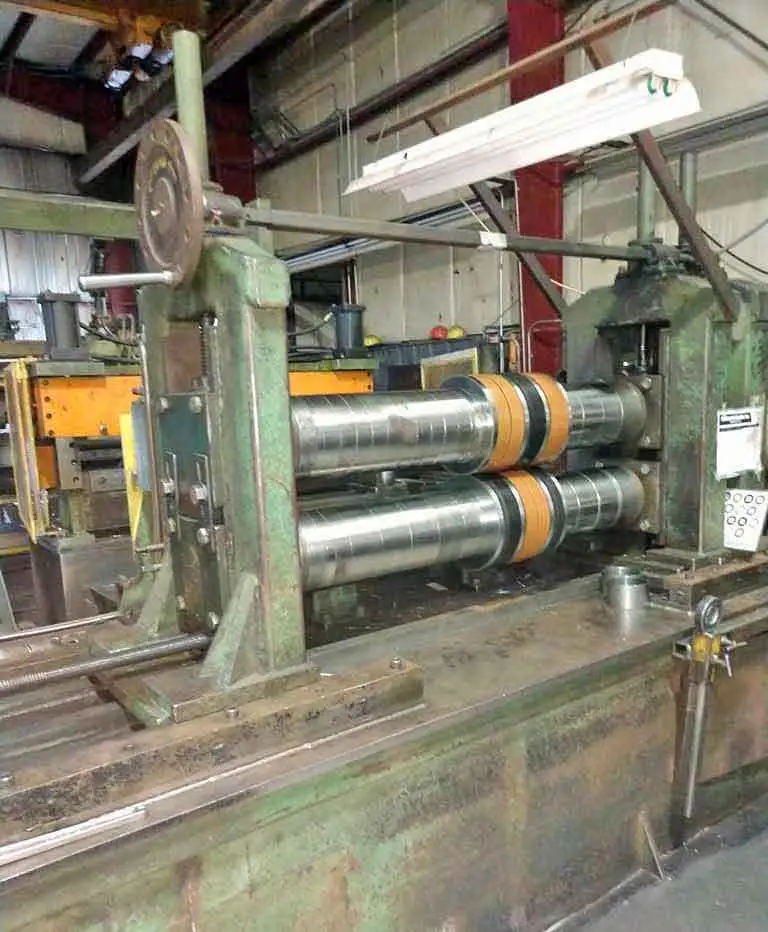

-Slitter Head: Wean
7" Dia. Arbors
Entry Pinch Rolls
Entry Side Guides, Manual Adjustment
Parallel Arbor Adjustment
20 HP AC Motor Threading Drive

-Scrap Winder: Cauffiel
Oscillate Wind
Hydraulic Motor Driven
Manual Scrap Ball Removal

-Recoiler: Cauffiel
20" Dia. Drum
Manual Clamp and Expansion
Hydraulic Pushoff
75 HP GE AC Motor, 1750 RPM, 440 V
Belt Driven to Reducer

-Freestanding Overarm Separator: Cauffiel

-Slitter Tooling:

-In Storage:

**Temporary Specifications Subject to Verifications**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
