12" (305mm) X 12" (305mm) RUESCH 2 HIGH REVERSING ROLLING MILL Stock # 14280

12" (305mm) x 12" (305mm) Ruesch 2 High
Stock # 14280

MANUFACTURER: RUESCH MACHINE CO. (USA)
TYPE: 2 HIGH REVERSING ROLLING MILL
PREVIOUS USE: BREAKDOWN MILL FOR GOLD AND SILVER
INTERMEDIATE MILL FOR COPPER/STEEL/ALUMINUM
CLADDING/BONDING MILL FOR DUAL STRIP
ROLL SIZE: 12" (305MM) DIA. x 12" (305MM) FACE WIDTH
ROLL BEARINGS: ROLLER BEARING
SCREWDOWNS: ELECTRO-MECHANICAL
MAXIMUM ROLL OPENING: 4.25" (108MM)
MILL STAND CROSS SECTION: 9" (228MM) x 10" (254MM)
WINDOW WIDTH: 13-1/4" (336MM) x 41" (1041MM) HIGH
DIRECTION OF TRAVEL: RIGHT TO LEFT IF USED AS A CLADDING MILL
REVERSING AS A STAND-ALONE MILL
MILL STAND DRIVE MOTOR: 50 HP, 230/460 VOLTS, 1750 RPM, 3 PHASE,
60 HZ VARIABLE SPEED
GEAR BOX: HORSBURGH & SCOTT RATIO 137.45 TO 1
MILL SPEED: 0 - 80 FPM (0 - 25 M/MIN)

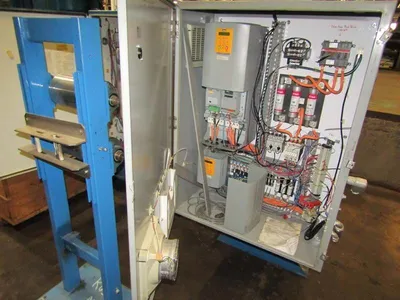

A.C. VARIABLE SPEED DRIVE: PARKER A.C. INTEGRATOR 690+ SERIES WITH
HTTL ENCODER

THE MILL CAN BE PURCHASED AS A SINGLE STAND REVERSING MILL OR AS A COMPLETE
CLADDING/BONDING LINE. WHEN USED AS A CLADDING LINE IT CONSISTS OF:

DIRECTION OF TRAVEL: RIGHT TO LEFT

PAYOFF:
-TYPE: NON-DRIVEN MANDREL TYPE
-MANDREL DIAMETER: 2-1/2" (63.5MM)
-MANDREL WIDTH: 10" (254MM)
-WIDTH AS USED: 7" (178MM)
-AIR CLUTCH FOR BACK TENSION

TENSION STAND"
-TYPE: 2 ROLL
-ROLL DIAMETER: 7" (178MM)
-ROLL WIDTH: 12" (305MM)
-NON-DRIVEN:
-BACK TENSION: PNEUMATIC

ROLLING MILL: AS PER SPECS ABOVE

WINDER:
-ENTRY STRIP SIDE GUIDES
-PNEUMATIC STRIP HOLD-DOWN ROLLS
-WINDER MANDREL: 2-1/2" (63.5MM) DIAMETER
9" (228MM) WIDE
-VARIABLE SPEED CONTROLS

NO. OF ROLLS:
-FLAT ROLLS: 1 SPARE SET
-SHELL ROLLS: 1 SET IN MILL

FLOOR SPACE:
-MILL STAND ALONE: 124" (3150MM) WIDE X 138" (3505MM) DEEP
-COMPLETE CLADDING LINE: 26 FT. (8M) WIDE X 11.5 FT. (3.5M) DEEP

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
