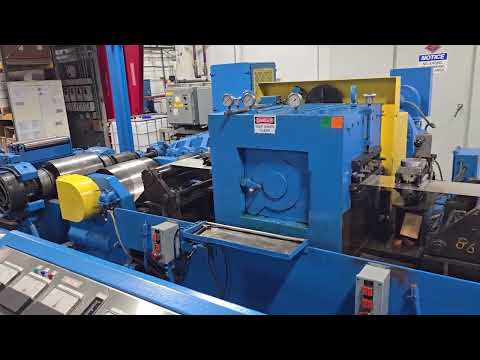

15" ZR16-15 WATERBURY FARREL SENDZIMIR 12 HIGH REVERSING ROLLING MILL Stock # 14279

ZR 16-15" SENDZIMIR REVERSING COLD STRIP MILL WITH AGC
Stock # 14279
Manufacturer: Waterbury Farrel USA
Type Mill: Sendzimir 1-2-3 (12 High)
Reversing Mill
Automatic Gauge Control (AGC)
Thickness Gauges To be supplied by purchaser
Work Rolls Diameter (Nominal): .800" (20mm)
Work Roll Length: 16-3/4" (425mm)
Drive Rolls Diameter (Nominal): 1.625" (41.275mm)
Drive Bearing, Diameter: 4.724"(120mm)
Number of Bearings, Wide: 20
Number of Bearings, Narrow: 12
Mill Speed Range: 200/400FPM (61 - 122 m/min)
Mill Motor (Gear Motor): 50 HP, 240 Volts, 174 Amps, 1150/2300 RPM,
- Reliance D.C. Drive
Main Mill Motor Gearbox: Gearmotor with 2.44 to 1 Ratio
Winder Motors: 25 HP, 240 Volts, 88 Amps, 650/1300 RPM
- Reliance D.C. Drive
Winder Motor Gearbox: Farrel Birmingham with 17.9 to 1 Ratio
Full Electrical Upgrade: I2S Intergrated Industrial Systems
Maximum Speed At Full Torque: 200 FPM (61 m/min)
Maximum Speed at Reduced Torque: 400 FPM (122 m/min)
Previous Use: Silver & Copper Alloys
Maximum Width of Strip: 15" (381mm)
Max Starting Strip Thickness: 0.032" (0.81mm) (Approximately)
Min Finished Strip Thickness: 0.0005" (0.0127mm)
Tension Control by Tensiometer
Max Tension to 200 FPM: 3700 Pounds
Max Tension to 400 FPM: 1850 Pounds
Minimum Tension: 40 Pounds
Direction of Travel: Right to Left
Payoff:
-Mandrel Diameter: 5" (127mm) or 6" (152mm) w/extension
-Mandrel Width: 16-1/2" (419mm)
-Max. Coil O.D.: 24" (610mm)
Lubrication System: New 2020

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
