700 Ton LOEWY EXTRUSION HYDROPRESS Stock # 14228

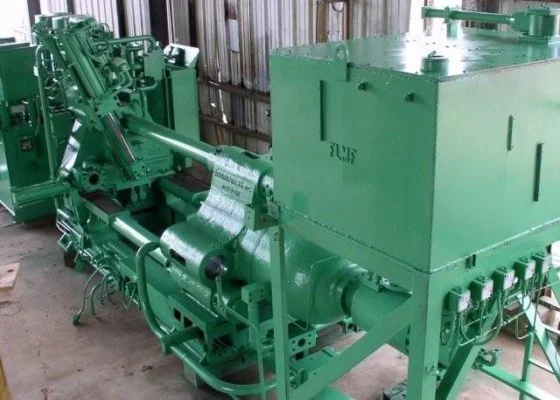

(1) Used 700 Ton Loewy "Hydropress" Extrusion Press
Stock # 14228

Specifications:
Extrusion Force.........................708 Tons @ 3200 PSI
Assist Cylinders (2)....................50 Ton Capacity (each)
Stroke(Ram).............................42" (nominal)
Main Ram Diameter.......................22"
Tie Rod Diameter(3).....................7"
Distance Floor to Press Center-line.....36"
Stump Shear Capacity....................65 Tons
Speeds:
Advance............................0-700 I.P.M.
Pressing (Extrusion)...............0-150 I.P.M. (est.)
Opening (Return)...................0-1000 I.P.M.
Container System:
Billet Diameter....................4 1/2" (nominal)
Billet Length......................16" (maximum)

Container Heating System...........Electric
Travel of Container Housing........36" (est.)

Hydraulic System:
System Pressure....................3,200 PSI
System Capacity....................1200 Gal. (est.)
System Horsepower (total)..........525 H.P.

Equipped With:

Original controls.
Rexroth Variable Volume Pressure Compensated Hydraulic System With Reservoirs
Hydraulic Actuated Stump Shear
Extrusion Die Holder and Clamping System
Billet Container System With Electric Heater
4" Dia. Extrusion Mandrel (1)
Overall Dimensions......................30' L-R x 8' F-B x 106" High
Weight..................................54,500 lbs. (total est.)

- Press frame...............35,000 lbs
- Parts removed...........10,000 lbs
- Hyd. unit.....................8,000 lbs
- Prefill tank..................1500 lbs

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
