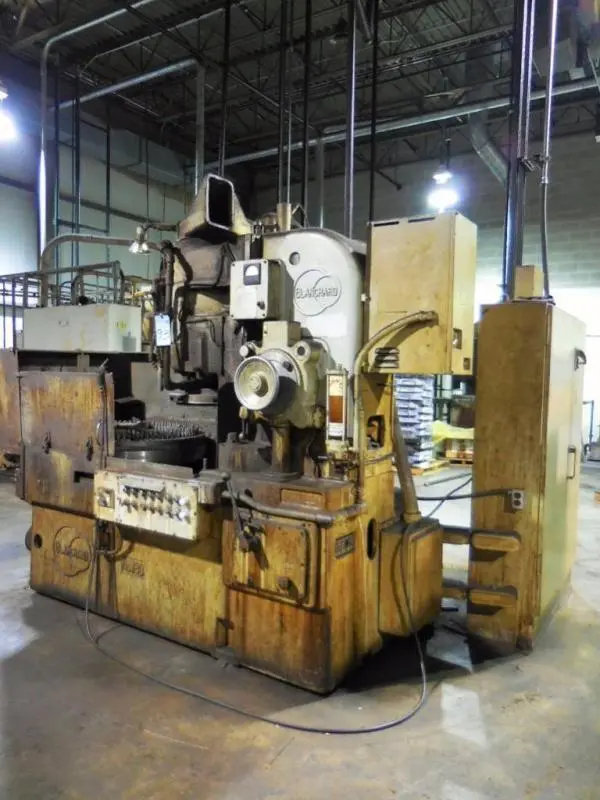

36" BLANCHARD MODEL 18D ROTARY SURFACE GRINDER: STOCK #14223
Have one to sell?
ConditionUsed
1 available
Used 36" Blanchard Model 18D Rotary Surface Grinder. This machinery features a table chuck diameter of 36", max swing inside guards of 40", and a segmented grinding wheel diameter of 18". With 6 table speeds ranging 6-33 RPM, 720 RPM grinding wheel speed, and a .004 to .080 IPM vertical downfeed range. It also includes an electro-magnetic chuck with controls, a Trabon lube system, and a 30 HP spindle motor. Weighs 12,700.
36" BLANCHARD MODEL 18 D ROTARY SURFACE GRINDER
Stock # 14223
SERIAL ............................. 11347
MODEL .............................. 18D
TABLE CHUCK DIAMETER ............... 36"
MAX SWING INSIDE GUARDS ............ 40"
SEGMENTED GRINDING WHEEL DIAMETER .. 18"
MAXIMUM WORK HEIGHT ................ 12"
TABLE SPEEDS ....................... (6) 6 TO 33 RPM
GRINDING WHEEL SPEED ............... 720 RPM
VERTICAL DOWN FEED RANGE ........... .004 TO .080 IPM
ELECTRO-MAGNETIC CHUCK W/CONTROLS .. YES
TRABON LUBE SYSTEM ................. YES
COOLANT BASE ....................... YES
SPINDLE MOTOR ...................... 30 HP
ELEVATION MOTOR .................... 2 HP
Weight 12,700
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATIONS**
