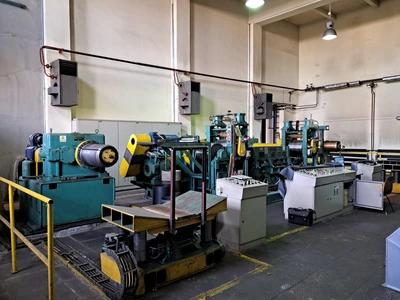

60 - 400mm McKAY STRETCH STRAIGHENER/TENSION LEVELING MACHINE Stock #14215
Have one to sell?
ConditionUsed
1 available
Check out our used Mckay 400mm Stretch Straightener/Tension Leveler, stock no. 14215. Perfect for straightening and stretching metal tapes, this reliable device can handle widths from 20mm to 400mm and thicknesses from 0.05mm to 1.0mm. The machine offers a straightening speed of 50m/min, has a maximum tape coil weight of 3000kg, and has a robust 22kW DC winder motor. Controls are by Siemens Simatic systems and the supply requirement is 400V.

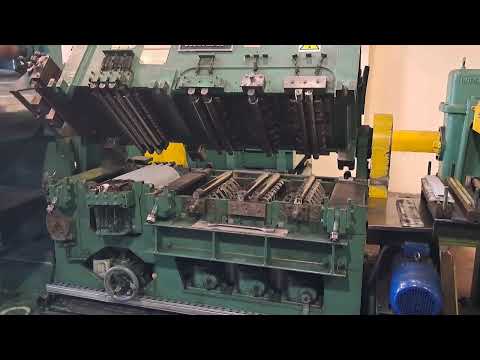

(Used) 20 - 400mm Stretch Straightener/Tension Leveler
Stock # 14215
Straight stretcher
Characteristics of straightening and stretching machines:
Thickness range of the straightened strips 0.05-1.0 mm (depending on the strength properties of the straightened material)
Width range of straightened tapes 20 - 400mm
Roller diameter - bending ø 19.0, ø 17.0, ø 9.5 mm
Diameter of straightening rollers ø 22, ø 19 mm
Diameter of tensioning drums ø 510 mm
Diameter of unwinding and winding drums ø 400 mm
Maximum elongation ø 3%
The maximum weight of straightened coils of tape is 3000 kg
Maximum straightening speed 50 m/min.
Winder motor 22 kW/DC
22 kW/AC stringing drum motor
Power supply 400 V, main fuse 100 A
Control system Siemens Simatic S5-95U - main controller
Siemens Simatic S7-U22 - belt guiding
PC - visualization
**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
