5" (127mm) X 16" (406mm) X 14" (355mm) United Cladding Mill Stock # 14191

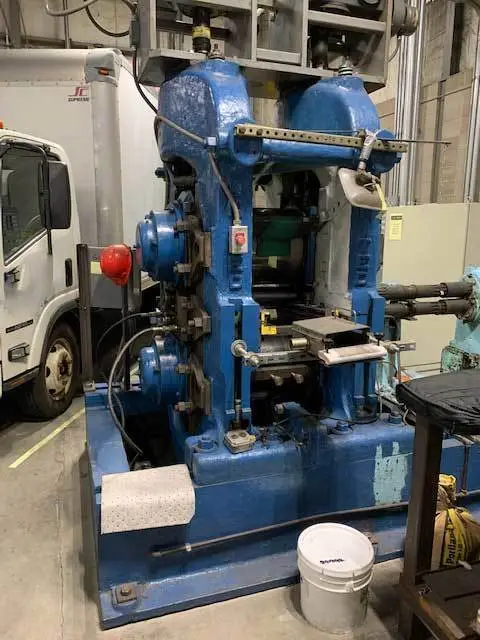

5"(127mm) X 16"(406mm X 14"(355mm) UNITED 4 HI CLADDING MILL
Stock # 14191

MANUFACTURER: UNITED ENGINEERING CO.(USA)
TYPE: 4HI CLADDING/BONDING MILL
WORK ROLL DIAMETER: 5" (127MM)
WORK ROLL WIDTH: 18" (457MM)
BACKUP ROLL DIA: 16" (406MM)
BACKUP ROLL WIDTH: 14" (355MM)
WORK ROLL DRIVEN
TYPE ROLL BEARINGS: ROLLER
SCREWDOWNS: MOTORIZED
MILL STAND SIZE: 12"(305MM) WIDE X 7"(178MM) DEEP
WINDOW WIDTH: 20" (508MM)
DRIVE MOTOR: 75HP, 1750/2100 RPM, 240 VOLT,
890 AMPS, D.C. VARIABLE SPEED,
U.S. MOTORS
GEARBOX RATIO: 25 TO 1
CONTROLS: 208 VOLTS, 3 PHASE

PAYOFF

ENTRY BRUSH CLEANING STATION
-NO. OF STATIONS: 2 (TOP AND BOTTOM)
-TYPE: MOTORIZED WIRE BRUSHES
-MOTOR ON EACH: 15 HP
-TORIT CHIP COLLECTION SYSTEM

RECOILER
-MANUFACTURER: CROCKER WHEELER
-TYPE: SOLID MANDREL
-MANDREL DIAMETER: 16" (406MM)
-MANDREL WIDTH: 12" (305MM)
-DRIVE MOTOR: 15 HP

MILL IS INSTALLED AND OPERATIONAL THOUGH NOT IN
SERVICE
EQUIPPED WITH SPARE ROLLS
APPROX. FLOOR SPACE:36 FT (11M) x 10 FT. (3M) DEEP
