8" x 8" Torrington 2 High Rolling Mill Hydraulic Screw Down with Edging, Stock #14168

8" x 8" Torrington 2 High Rolling Mill with Edging
Stock # 14168

General Specifications:

8” Wide
6000 Lbs. MAX Coil
20” ID - 72” Max OD on Recoiler
20” Min. ID on payoff
Gauge Range .020”/.310”
Width Edging 1 – 4”
Width Rolling 1 – 4”
Edging #5 Deburred to #4 Full Round
Line Direction: Left to Right

Line Includes:

Uncoiler

20" Wide Drum Face
Collapses to 16"
Expands out to 21"
Free Standing Hold Down Feed Up Gear Motor
with Chain & Sprocket Drive to Main Shaft
Linkbelt, 3-hp, 1750-rpm, 208-220/440-volts, 9/4-amps,
Hydraulic Expansion
Air Brake

Edging Stands

2 Edging Passes with Edging Dies
Motorized Open & Close on Main Edging Dies
Westinghouse, 20/25-hp, 740/1800-rpm, arm volts-230, arm amps-74/92,

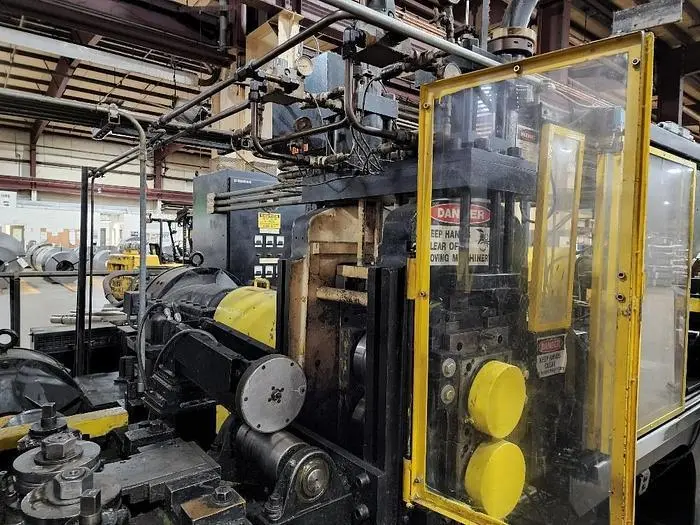

Mill Stand - 2-HI

8" Wide Rolls x 8" Diameter Rolls
Hydraulic Screwdowns
40 HP AC Westinghouse Motor, 500/1500-rpm, arm
volts-230, arm amps-145 on Mill

Measuring Counting Unit
Gauge Caliper
Exit Shear, Hydraulic Downcut

Recoiler
24" Wide
20" Diameter Drum
30 HP DC Motor, 400/1600-rpm, arm volts-250, arm amps-105,
Recoiler blower - Baldor, .33-hp, 3450-rpm, 115/206-230-volts,
6/3.2-3-amps,

Also Includes:
Hyd. unit - Lincoln, 30-hp, 1760-rpm, 230/460-volts, 74/37-amps,
Heat exchanger fan - Baldor, 1/8-hp, 1140-rpm, 115/208-230-volts, 4.6/2.4-2.3-amps,
Heat exchanger pump - Baldor, 2-hp, 1725-rpm, 206-230/460-volts, 6.5-6.2/3.1-amps,

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
