18" x 2.625" Arbors x 6000# Ruesch Ring Type Slitting Line # 14156

18" x 2.625" Arbors x 6000# Ruesch Ring Type Slitting Line

Type: Slitters & Slitting Lines
Stock Number: 14156

General Specifications:

Max Coil Weight Capacity: 6000#
Entry Coil ID: 16"
Entry Coil OD: 72"
Exit Coil ID: 6", 8", 12", and 16"
Exit Coil OD: 60"
Maximum Width: 18"

Complete Line with the Following Components:

Paper Unwinder

Ruesch Uncoiler

32" Mandrel Face
Four Leaf Hydraulic Expansion
Disc Brake
Feed Up Drive
Self-Contained Hydraulics

Entry Edge Guides

Deburring Roll

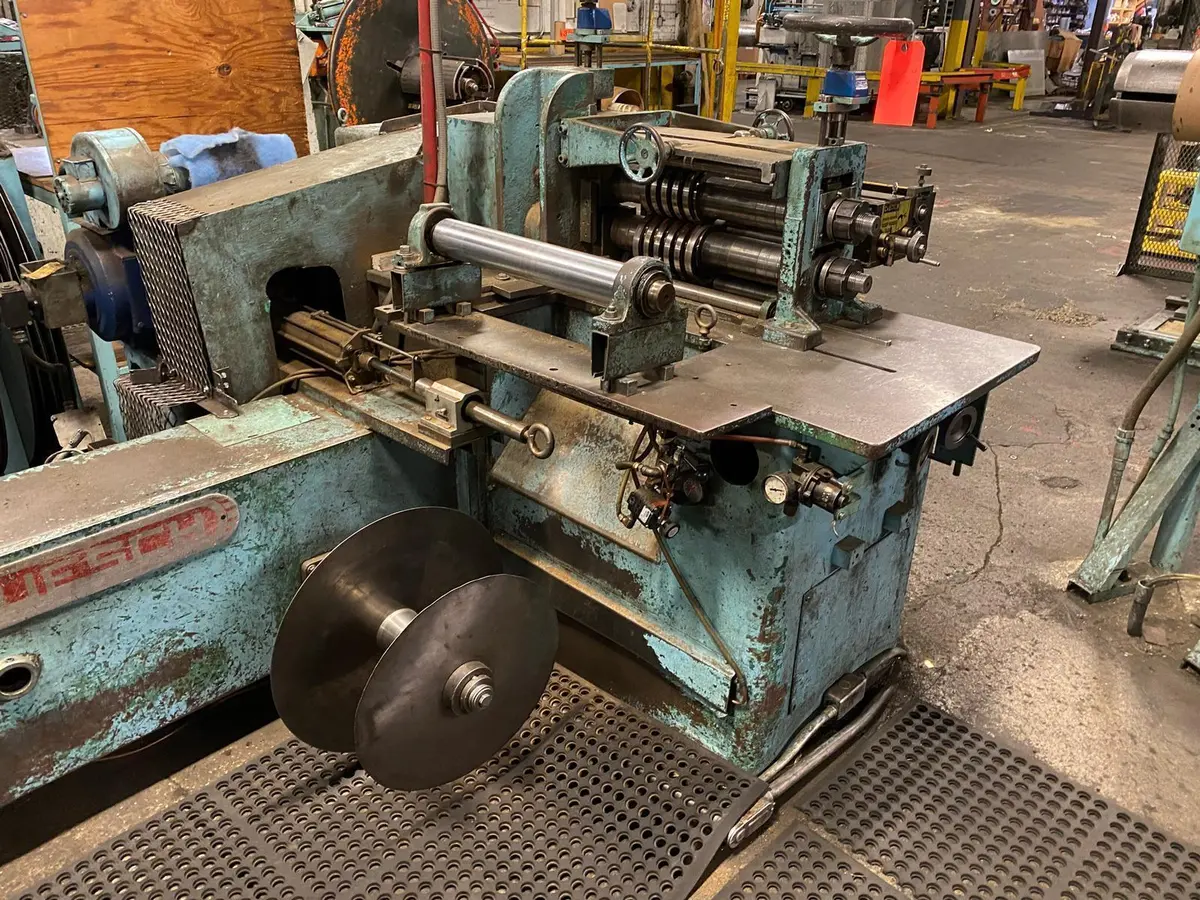

Ruesch Slitter Head
25 HP DC Drive
S/N: N2371A
Ring Slitter Design

Scrap Winder
Oscillator

Ruesch Recoiler with Floor Standing Overarm Separator
25 HP DC Motor
Two Speed Gear Box
Hydraulic Push Off Plate
Separator Disks for Smaller Widths

One Arm Turnstile with Hydraulic Push Off
Manual Rotation

Ruesch Horn Type Downlayer
41" Roll Face x 48" Wide

20' of Exit Conveyor

Large amount of tooling, rubbers, spacers, and knives
Elite Carotron Digital Drives

*Slitter Head and Recoiler Share Common Base

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
